This malleable iron Flange Fig 329 with beaded edge is manufactured in accordance with DIN standards. It is used for fixed connection between pipelines, valves and equipment in low-pressure fluid systems. The beaded structure strengthens the pipe end to prevent deformation and cracking. Made of high-quality black heart malleable iron, it features high strength, good toughness and reliable sealing performance, widely used in water, gas, oil, steam, fire fighting and other low-pressure fluid piping systems
Malleable cast iron flange can be used for transitional connection between grooved pipes and flanged equipment and valves. The connecting bolts are made of high-strength bolts, and the product has stable performance.
Standard: DIN EN 10242
Type: Flange Fig 329 beaded
Material: Black heart malleable iron
Thread standard: DIN 2999
Pressure class: 150LB
Temperature range: -20℃ ~ 230℃
Surface treatment: Black / Electro-galvanized / Hot-dip galvanized
Application: Water, gas, oil, compressed air, steam, fire fighting
| Size | Inch | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 |
| mm | 15 | 20 | 25 | 32 | 40 | 50 | |
| Dim. | A | 12 | 13 | 14 | 15 | 16 | 18 |
| (mm) | |||||||
| Size | Inch | 21/2 | 3 | 4 | |||
| mm | 65 | 80 | 100 | ||||
| Dim. | A | 20 | 22 | 24 | |||
| (mm) |
Malleable iron Flange Fig 329 with holes beaded DIN
Malleable iron union beaded DIN

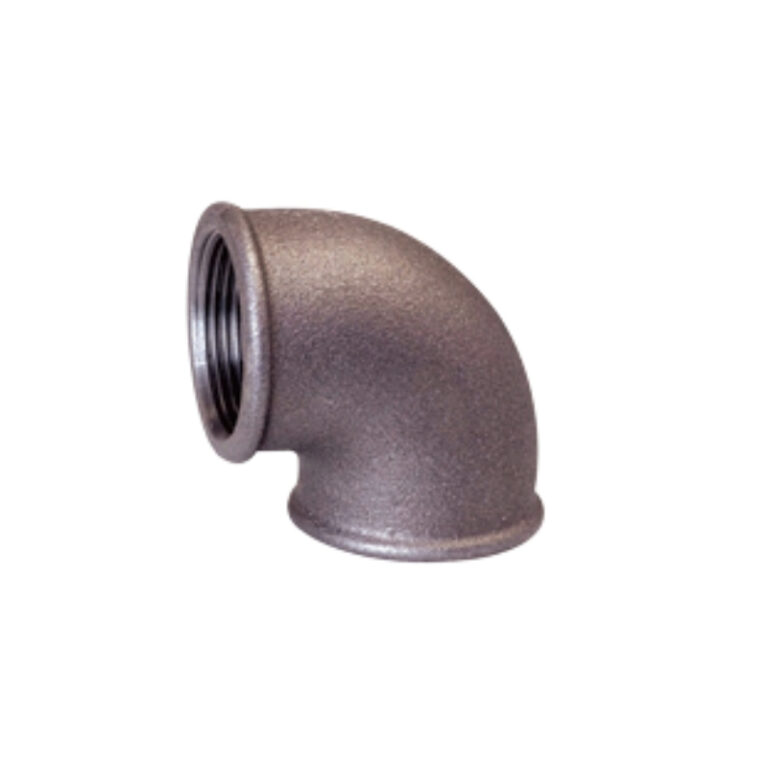

Malleable iron 90° bend beaded DIN

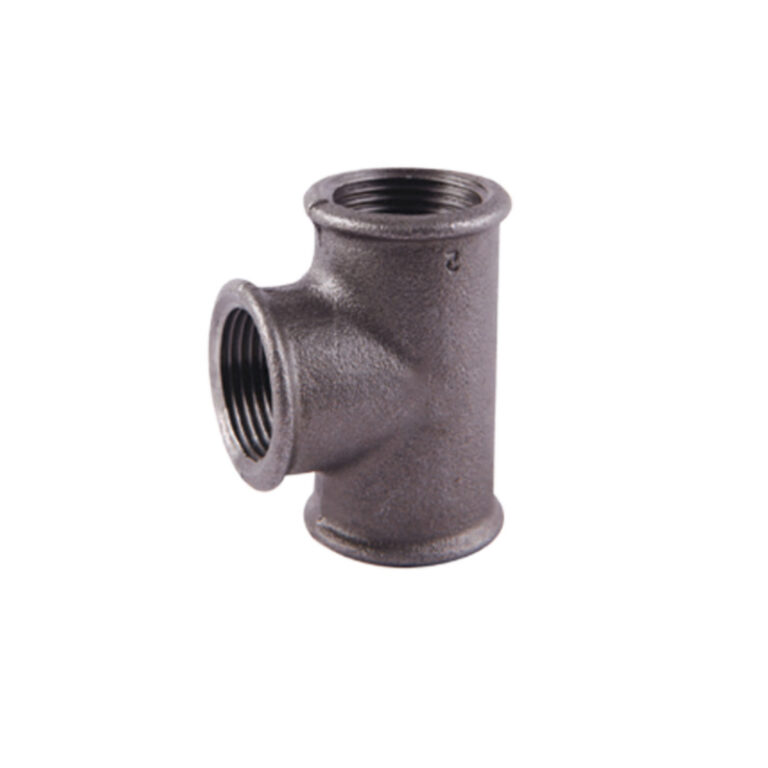

Malleable iron equal tee beaded DIN
Malleable iron reducing socket beaded DIN
Full series of DIN beaded malleable iron pipe fittings
OEM is available. We can customize the product according to your specific requirements, including logo printing and packaging design.
The MOQ is 500 pieces. For customized products with special sizes or surface treatments, the MOQ may vary.
After order confirmation and receipt of the advance payment, we will arrange production. Generally, the products can be ready for shipment within 15-20 working days. Once dispatched, we will notify you and provide all necessary documents for customs clearance.
All products are 100% new and undergo strict quality inspections, including pressure testing and dimensional checks, before delivery. We use sturdy wooden crates or cartons to ensure the products are well-protected during transportation.
Yes, we provide detailed installation instructions in English and other major languages. Our technical support team is also available for online consultation and guidance if needed.
