Features:
Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61
Size: 1/4″-4″ (DN8 – DN100)
Pressure: 2.5 Mpa / PN25
Dimensions: ANSI B16.3
Material: Malleable iron ASTM A197
Threaded: NPT ASME B1.20.1
Surface: Black / Electrical galvanized / Hot-dip galvanized

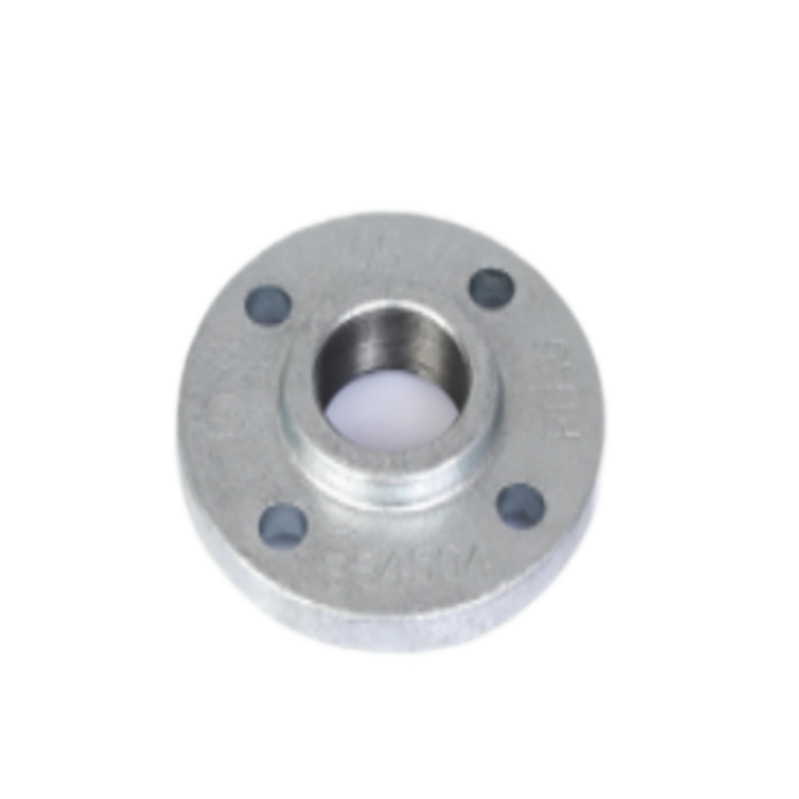

Malleable iron flange with holes is a crucial component in various industrial, commercial, and residential applications.
| Size | Inch | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 |
| mm | 8 | 10 | 15 | 20 | 25 | 32 | |

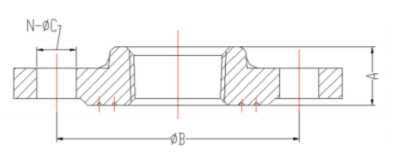

| Dim. (mm) |
A Min | 12 | 14 | 14 | 16 | 17 | 19 |
| Size | Inch | 11/2 | 2 | 21/2 | 3 | 4 | |
| mm | 40 | 50 | 65 | 80 | 100 | ||
| Dim. (mm) |
A Min | 22 | 25 | 26.2 | 27.3 | 30.5 |
