Features:
Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61
Size: 3/8”-2”(DN10 – DN50)
Pressure: 2.5 Mpa / PN25
Dimensions: ANSI B16.3
Material: Malleable iron ASTM A197
Threaded: NPT ASME B1.20.1
Surface: Black / Electrical galvanized / Hot-dip galvanized

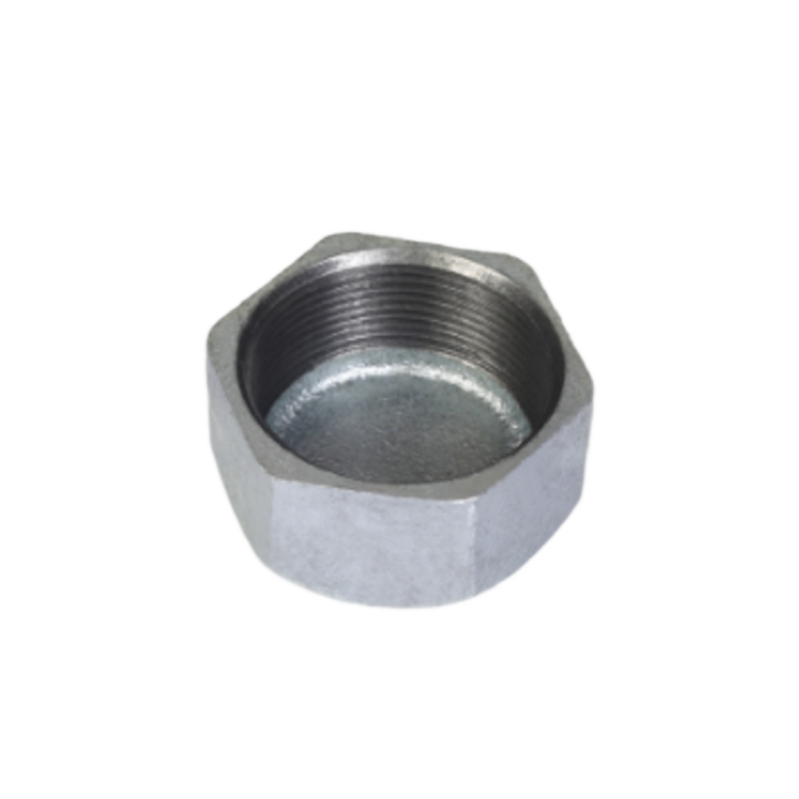

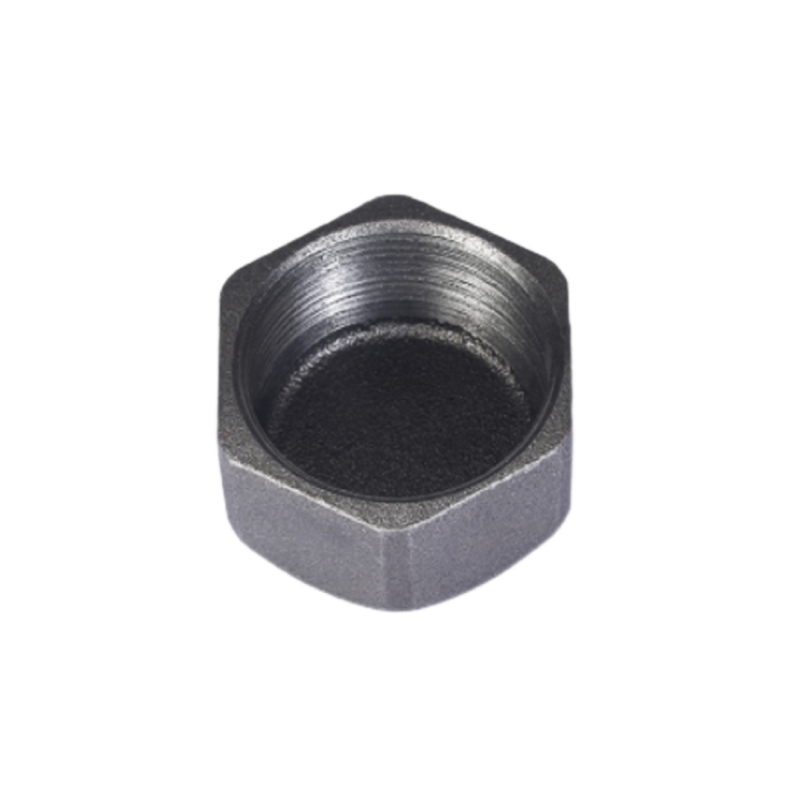

Malleable iron hexagon cap is a kind of pipe fitting commonly used in the end of pipe to stop the fluid system.

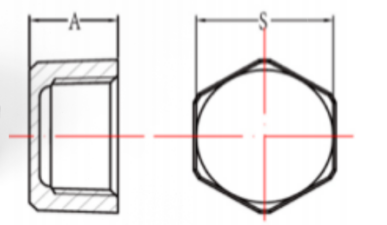

| SIZE | A (MM) | S (MM) | PCS/CTN. | |
| 3/8″ | 10 | 17 | 20.6 | 1200 |
| 1/2″ | 15 | 19 | 24.6 | 700 |
| 3/4″ | 20 | 22 | 30.4 | 500 |
| 1″ | 25 | 24 | 37.2 | 360 |
| 1-1/4″ | 32 | 27 | 47 | 220 |
| 1-1/2″ | 40 | 28 | 53 | 160 |
| 2″ | 50 | 32 | 65 | 100 |
