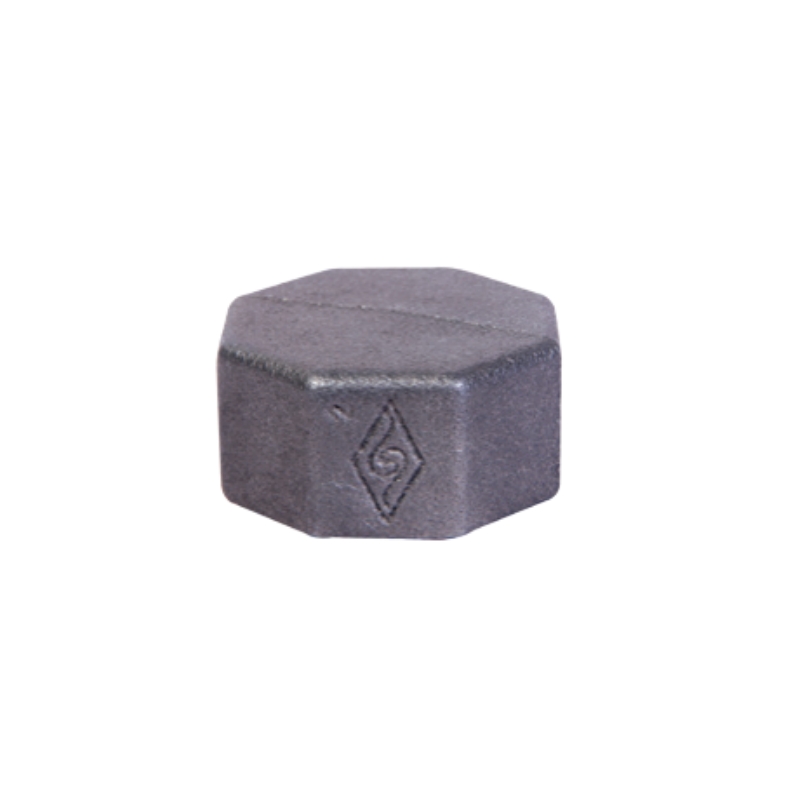

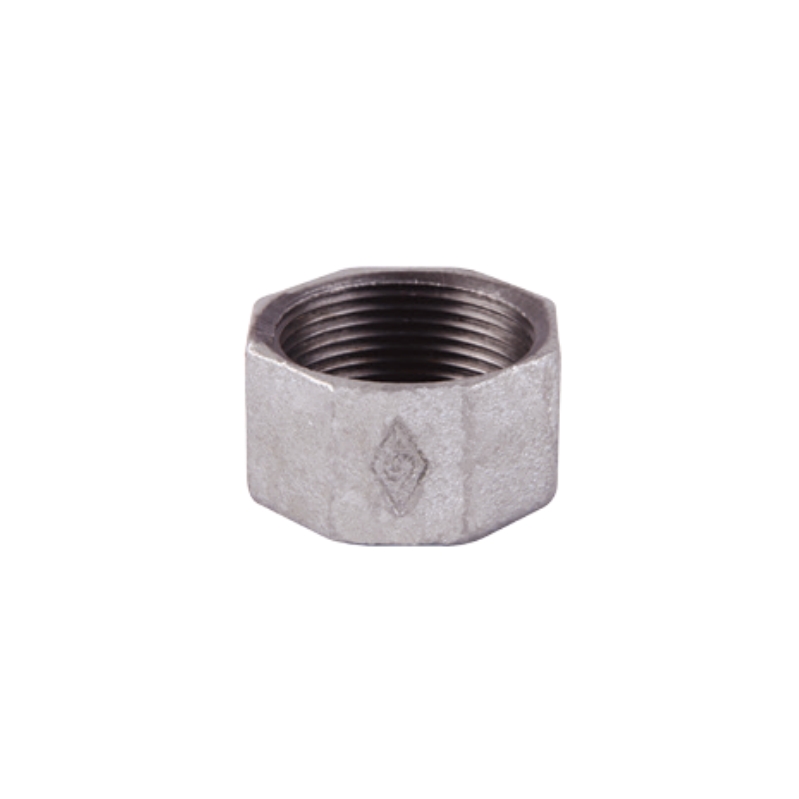

Malleable iron hexagon cap beaded

Malleable iron hexagon cap beaded

Features:

Certificate: FM Approved / UL Listed

Size: 1/8” – 4” (DN 6 – DN 100)

Pressure: 2.5 Mpa / PN25

Dimensions: DIN EN 10242

Material: Malleable iron DIN EN 1562

Threaded: BSPP (ISO228) / BSPT (ISO7-1)

Surface: Black / Electrical galvanized / Hot-dip galvanized

Product details

Malleable iron hexagon cap is a pipe fitting that is used to cover the external threads of the pipe end.

Size	Inch	1/8	1/4	3/8	1/2	3/4	1
Size	mm	6	8	10	15	20	25
Dim. (mm)	A	13	15	17	19	22	24
Dim. (mm)	B	15	18	22	26	32	39
Size	Inch	11/4	11/2	2	21/2	3	4
Size	mm	32	40	50	65	80	100
Dim. (mm)	A	27	27	32	35	38	45
Dim. (mm)	B	48	54	66	84	96	123
