Features:
Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61
Size: 1/8”-6”(DN6 – DN150)
Pressure: 2.5 Mpa / PN25
Dimensions: ANSI B16.3
Material: Malleable iron ASTM A197
Threaded: NPT ASME B1.20.1
Surface: Black / Electrical galvanized / Hot-dip galvanized

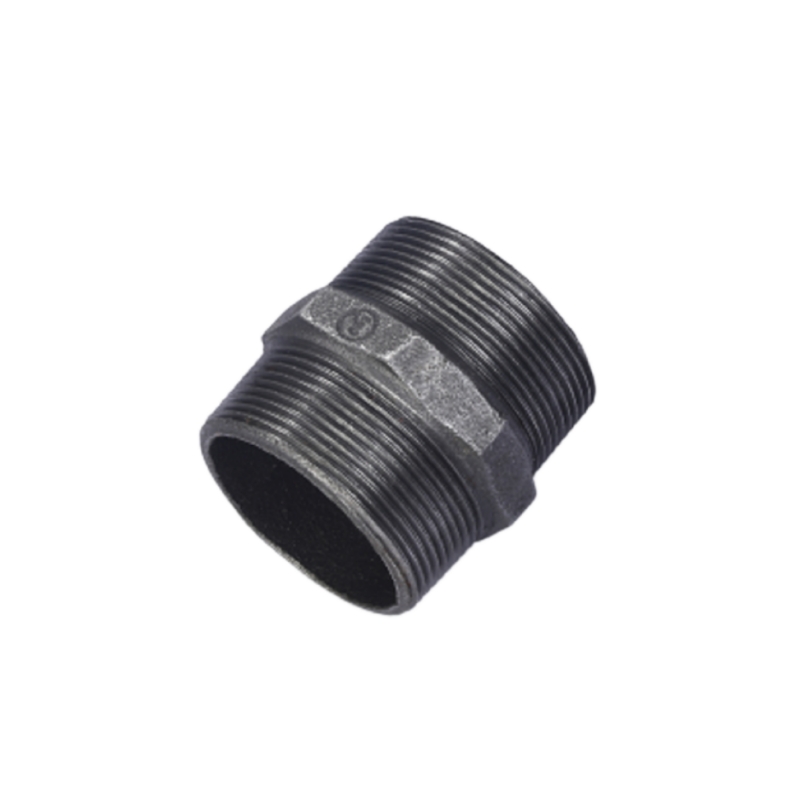

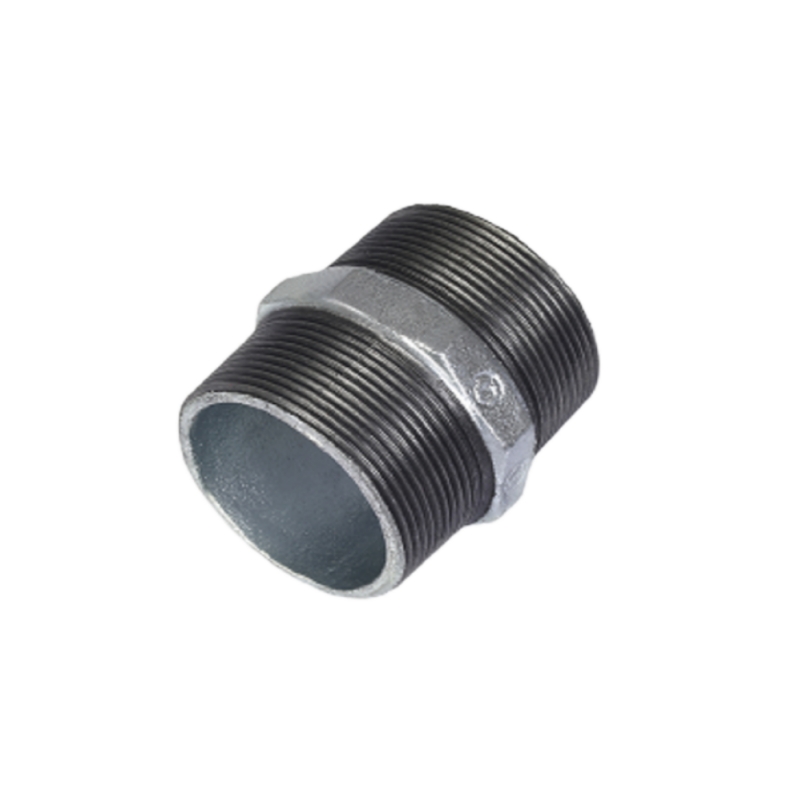

Malleable iron hexagon nipple is middle-hex fitting with both male threaded connections, and it is used to join two pipes with same size.
| Size | Inch | 1/8 | 1/4 | 3/8 | 12 | 3/4 | 1 | 11/4 |
| mm | 6 | 8 | 10 | 15 | 20 | 25 | 32 | |
| Dim. (mm) |
A | 29 | 36 | 38 | 44 | 47 | 53 | 57 |
| Size | Inch | 11/2 | 2 | 212 | 3 | 4 | 5 | 6 |
| mm | 40 | 50 | 65 | 80 | 100 | 125 | 150 | |
| Dim. (mm) |
A | 59 | 68 | 75 | 83 | 95 | 103 | 110 |
Fluid tech group is the first company in northern China that specializes in the field of fire protection.
