Features:
Certificate: FM Approved / UL Listed
Size: 1/8” – 6” (DN 6 – DN 150)
Pressure: 2.5 Mpa / PN25
Dimensions: DIN EN 10242
Material: Malleable iron DIN EN 1562
Threaded: BSPP (ISO228) / BSPT (ISO7-1)
Surface: Black / Electrical galvanized / Hot-dip galvanized

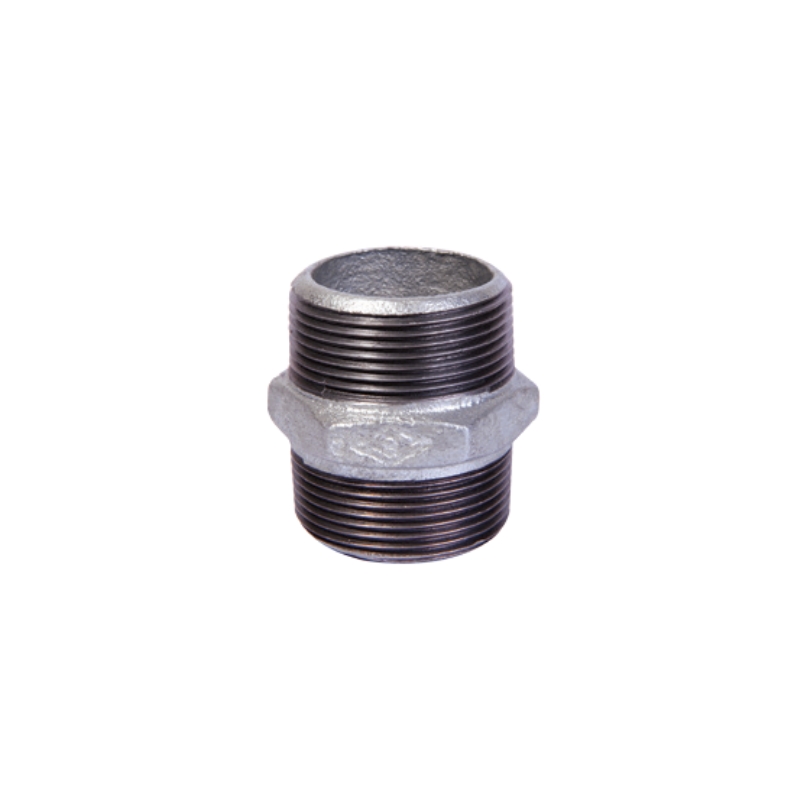

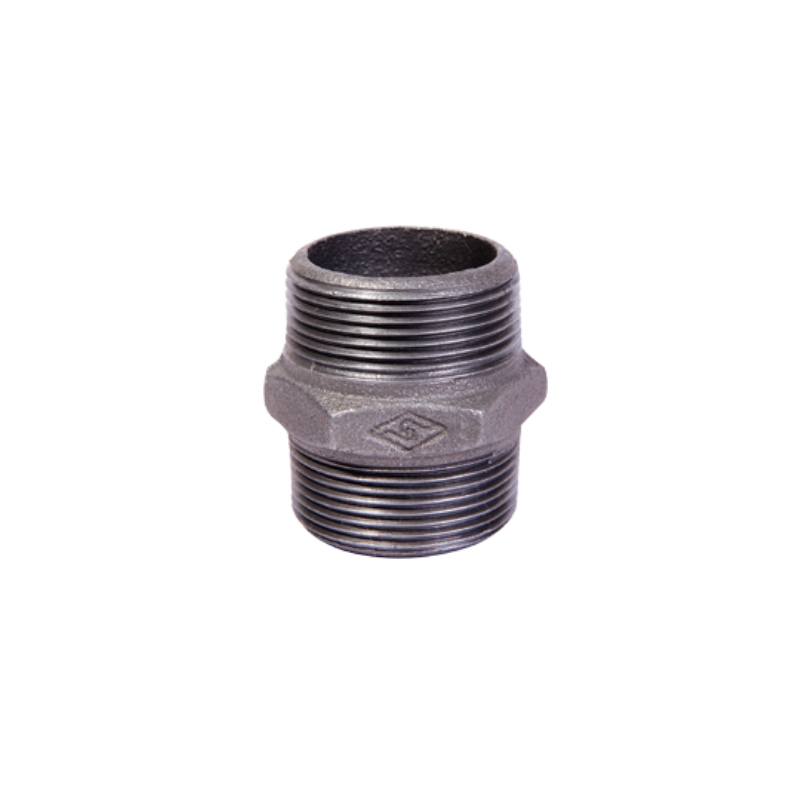

Malleable iron hexagon nipple is a common pipe connector, its main function is to connect two pipes so that they can be firmly connected together.
| Size | Inch | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 |
| mm | 6 | 8 | 10 | 15 | 20 | 25 | 32 | |
| Dim. (mm) |
A | 29 | 36 | 38 | 44 | 47 | 53 | 57 |
| Size | Inch | 11/2 | 2 | 21/2 | 3 | 4 | 5 | 6 |
| mm | 40 | 50 | 65 | 80 | 100 | 125 | 150 | |
| Dim.(mm) | A | 59 | 68 | 75 | 83 | 95 | 103 | 115 |
Fluid tech group is the first company in northern China that specializes in the field of fire protection.
