Features:
Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61
Size: DN8 – DN150
Pressure: 2.5 Mpa / PN25
Dimensions: BS EN10242
Material: Malleable iron BS EN1562
Threaded: BSPP (ISO228) / BSPT (ISO7-1)

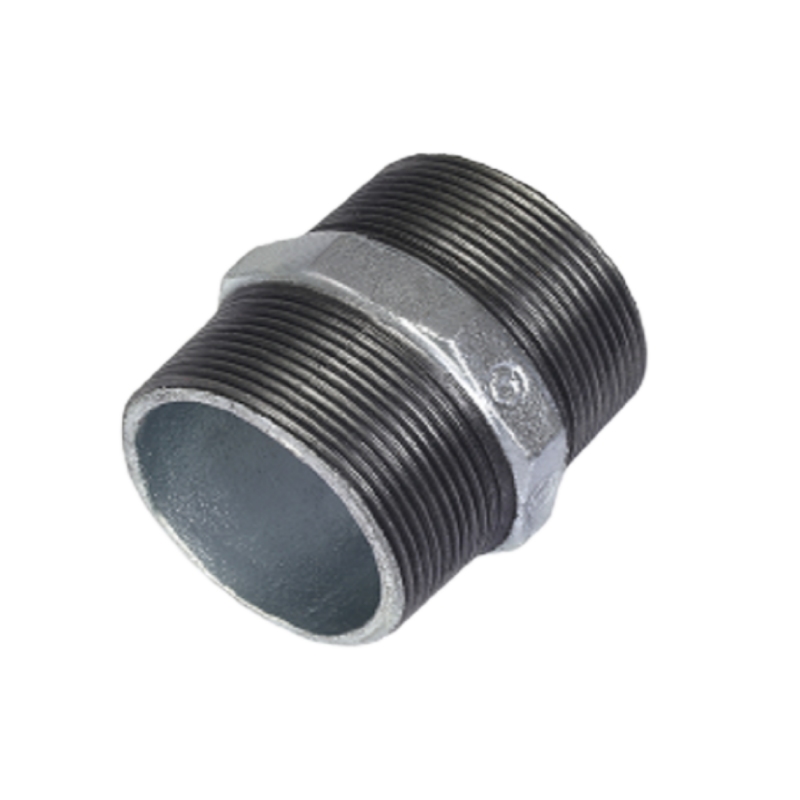

Surface: Black / Electrical galvanized / Hot-dip galvanized

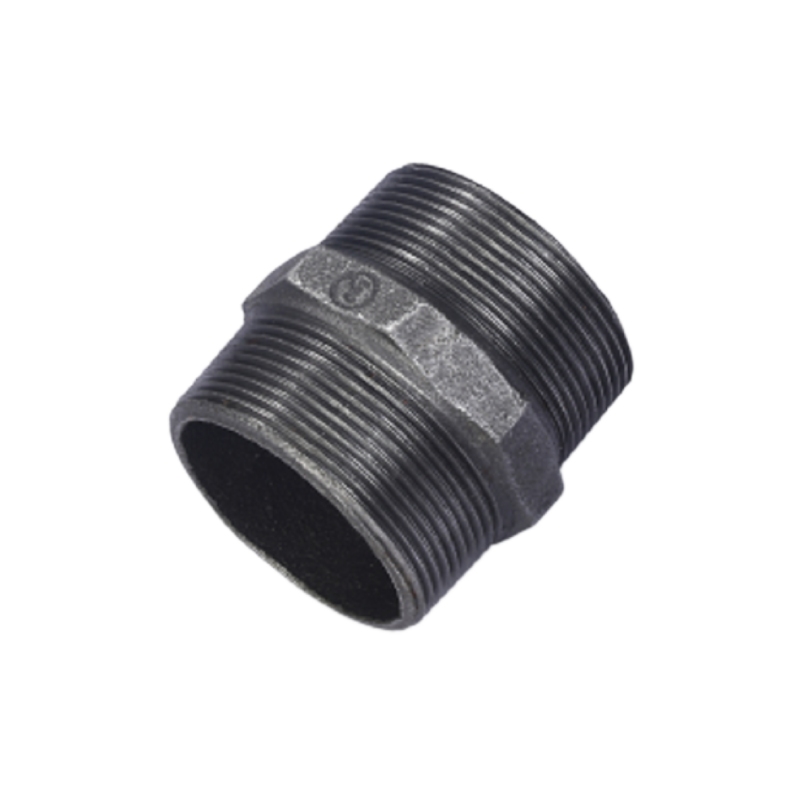

Malleable iron hexagon nipple is middle-hex fitting with both male threaded connections, and it is used to join two pipes with same size.

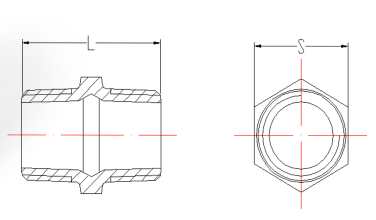

| SIZE | L (MM) | S (MM) | PCS/CTN. | |
| 1/4” | DN8 | 36 | 16.7 | 1000 |
| 3/8” | DN10 | 36 | 19.8 | 1000 |
| 1/2” | DN15 | 44 | 23.6 | 600 |
| 3/4” | DN20 | 47 | 29.2 | 300 |
| 1” | DN25 | 53 | 36 | 200 |
| 1 1/4” | DN32 | 56 | 45 | 140 |
| 1 1/2” | DN40 | 58 | 51 | 104 |
| 2” | DN50 | 68 | 63 | 56 |
| 2 1/2” | DN65 | 73 | 79.4 | 36 |
| 3” | DN80 | 81 | 91.6 | 24 |
| 4” | DN100 | 95 | 117 | 12 |
| 6” | DN150 | 107 | 170 | / |
