Malleable iron M&F reducing socket beaded

Features:

Certificate: FM Approved / UL Listed

Size: 3/8X1/4- 2X11/4

Pressure: 2.5 Mpa / PN25

Dimensions: DIN EN 10242

Material: Malleable iron DIN EN 1562

Threaded: BSPP (ISO228) / BSPT (ISO7-1)

Surface: Black / Electrical galvanized / Hot-dip galvanized

Chat Now

Product details

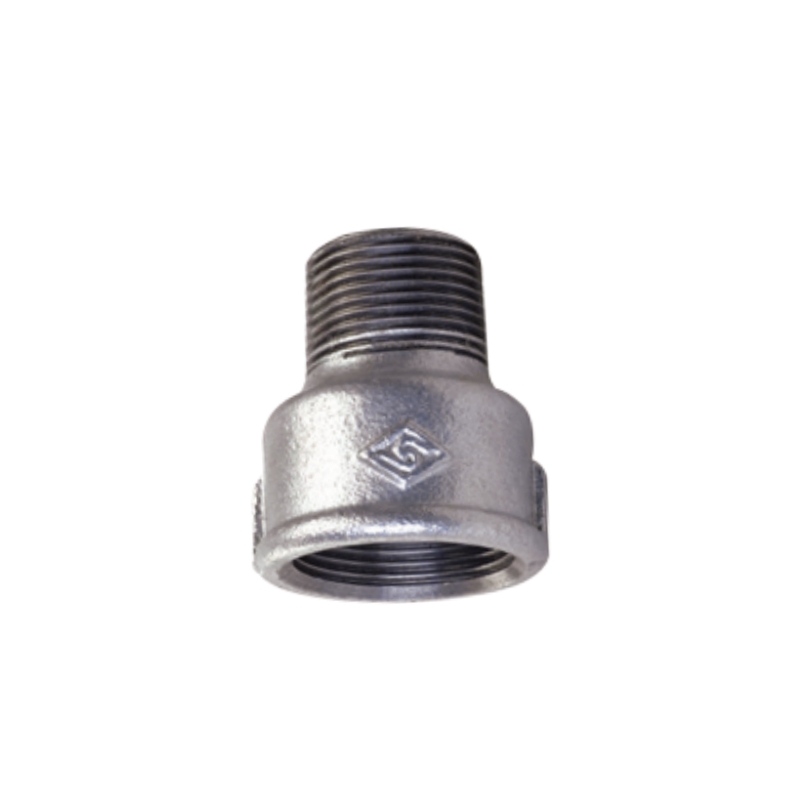

Malleable iron reducing socket M&F has internal thread on one end and external thread on the other end for connecting pipes. It can connect pipes of different sizes.

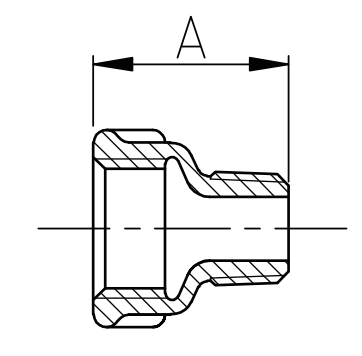

Size	Inch	3/8X1/4	1/2X1/4	1/2X3/8	3/4X3/8	3/4X1/2	1X1/2
Size	mm	10X8	15X8	15X10	20X10	20X15	25X15
Dim. (mm)	A	35	43	43	48	48	55
Size	Inch	1X3/4	11/4X1/2	11/4X3/4	11/4X1	11/2X3/4	11/2X1
Size	mm	25X20	32X15	32X20	32X25	40X20	40X25
Dim.(mm)	A	55	60	60	60	63	63
Size	Inch	11/2X11/4	2X1/2	2X3/4	2X1	2X11/4	Size
Size	mm	40X32	50X15	50X20	50X25	50X32	Size
Dim. (mm)	A	63	70	70	70	70	Dim. (mm)
Size	Inch	2X11/2	21/2X11/2	21/2X2	3X2	3X21/2	Size
Size	mm	50X40	65X40	65X50	80X50	80X65	Size
Dim. (mm)	A	70	74	74	80	81	Dim. (mm)
