Features:
Certificate: FM Approved / UL Listed
Size: 3/8” – 4” (DN 10 – DN 100)
Pressure: class150
Dimensions: ANSI B16.3
Material: Malleable iron ASTM A197
Threaded: NPT ASME B1.20.1
Surface: Black / Electrical galvanized / Hot-dip galvanized

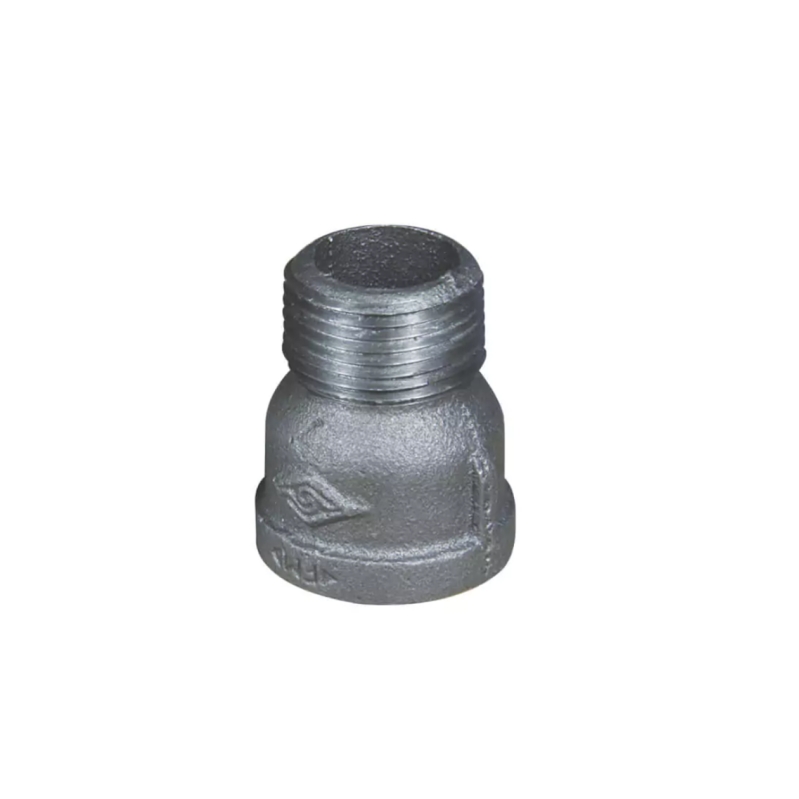

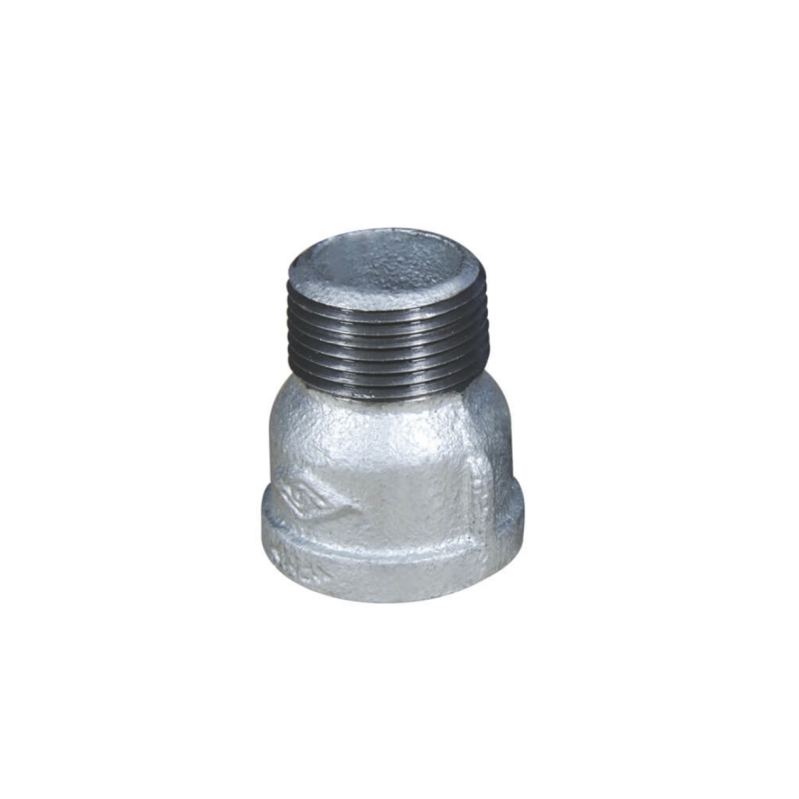

Malleable iron socket, M&F has internal thread on one side and external thread on the other side. It can make pipe connection more convenient.
| SIZE | A (MM) | |
| 3/8” | DN10 | 35 |
| 1/2” | DN15 | 43 |
| 3/4” | DN20 | 48 |
| 1” | DN25 | 55 |
| 1 1/4” | DN32 | 60 |
| 1 1/2” | DN40 | 63 |
| 2” | DN50 | 70 |
| 2 1/2” | DN65 | 76 |
| 3” | DN80 | 83 |
| 4” | DN100 | 97 |
