Malleable iron M&F union(taper seat) beaded

Features:

Certificate: FM Approved / UL Listed

Size: 1/4” – 4” (DN 8 – DN 100)

Pressure: 2.5 Mpa / PN25

Dimensions: DIN EN 10242

Material: Malleable iron DIN EN 1562

Threaded: BSPP (ISO228) / BSPT (ISO7-1)

Surface: Black / Electrical galvanized / Hot-dip galvanized

Chat Now

Product details

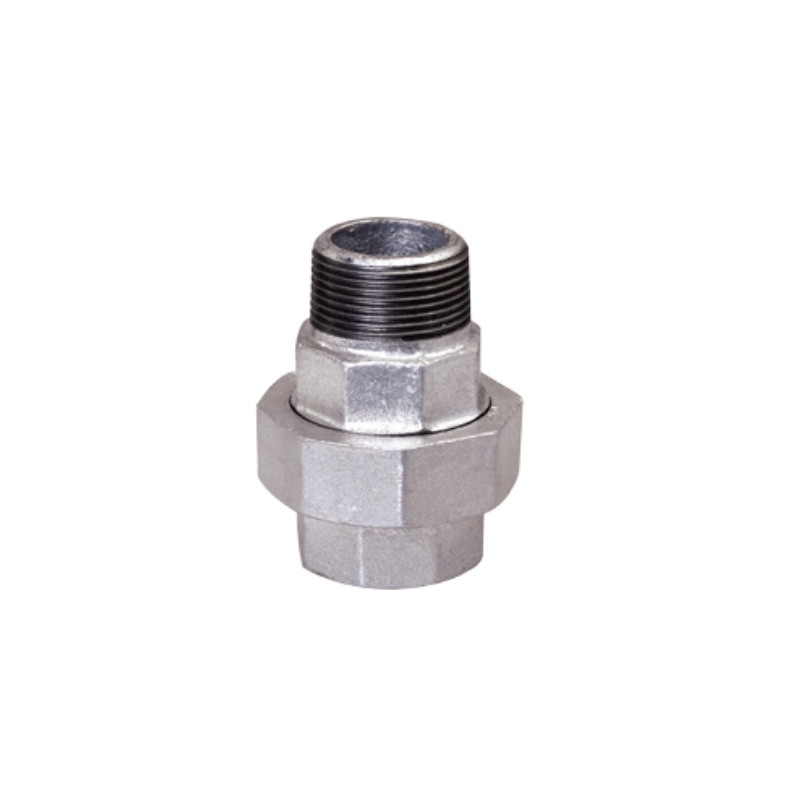

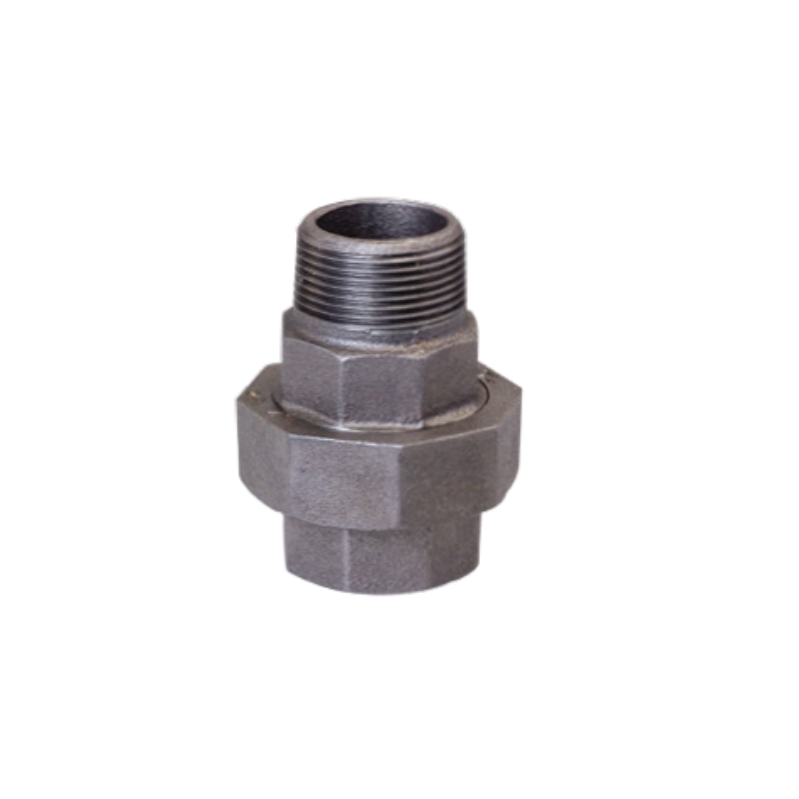

Malleable iron M&F union (taper seat) has female thread on one side and male thread on the other side. It can make pipe connection more convenient. It is the taper seat inside, different with flat seat. The sealing is confirmed by iron to iron

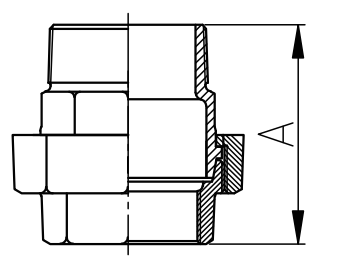

Size	Inch	1/4	3/8	1/2	3/4	1	11/4
Size	mm	8	10	15	20	25	32
Dim.(mm)	A	55	58	66	72	80	90
Size	Inch	11/2	2	21/2	3	4
Size	mm	40	50	65	80	100
Dim. (mm)	A	95	106	118	130	133
