Features:
Certificate: FM Approved / UL Listed
Size: 3/8” – 2” (DN 10 – DN 50)
Pressure: 2.5 Mpa / PN25
Dimensions: DIN EN 10242
Material: Malleable iron DIN EN 1562
Threaded: BSPP (ISO228) / BSPT (ISO7-1)
Surface: Black / Electrical galvanized / Hot-dip galvanized

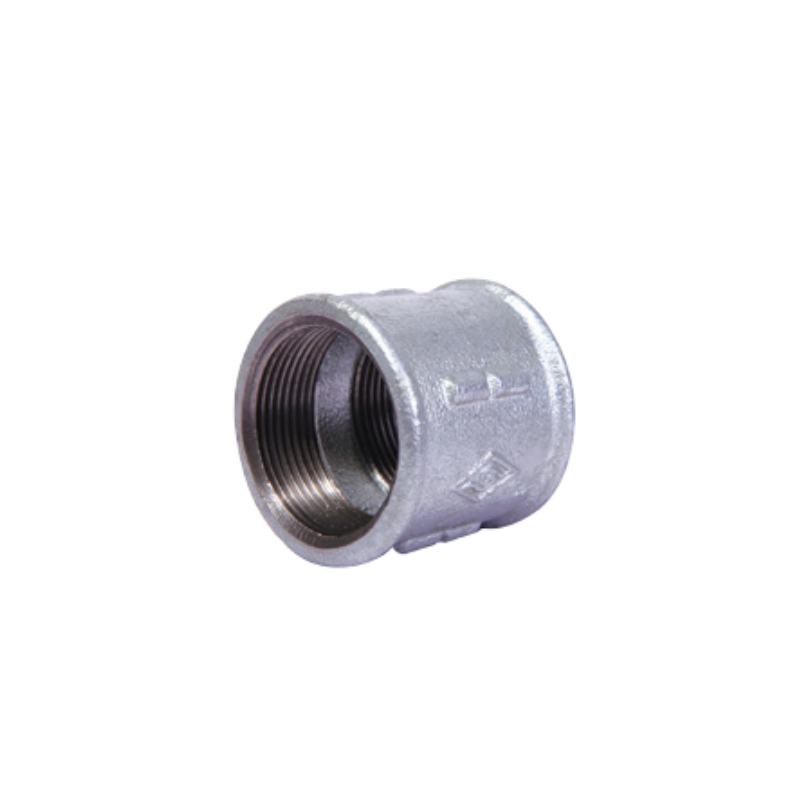

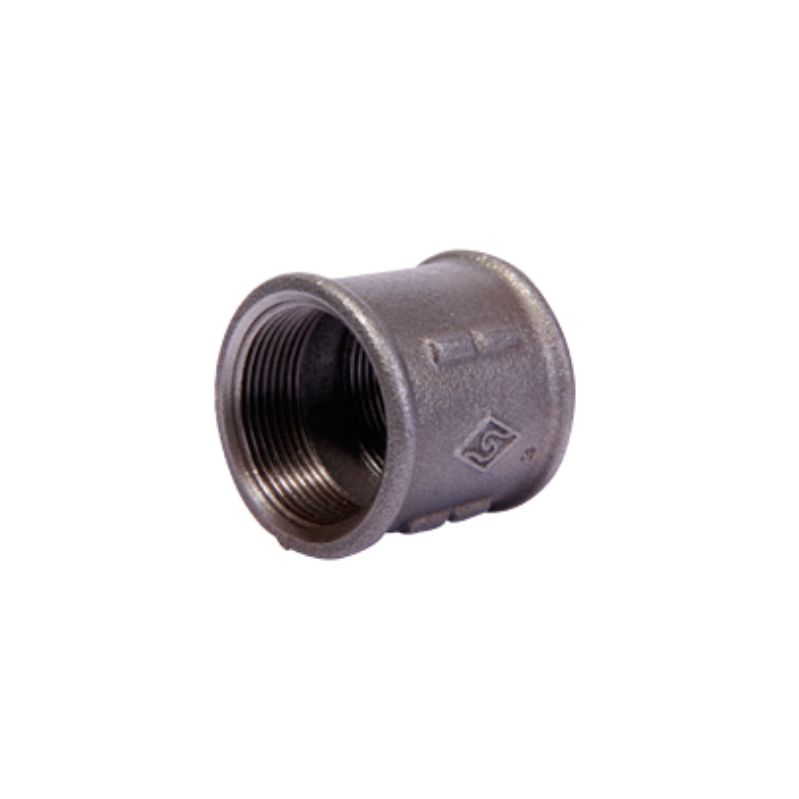

Malleable iron part thread socket is a short tube with female threads. It is used to connect two male threaded pipes or fittings of the same nominal diameter.
| Size | Inch | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 |
| mm | 10 | 15 | 20 | 25 | 32 | 40 | 50 | |
| Dim. (mm) |
A | 30 | 36 | 39 | 45 | 50 | 55 | 65 |
Fluid tech group is the first company in northern China that specializes in the field of fire protection.
