Features:
Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61
Size: 1/8”-6”(DN6 – DN150)
Pressure: 2.5 Mpa / PN25
Dimensions: ANSI B16.3
Material: Malleable iron ASTM A197
Threaded: NPT ASME B1.20.1
Surface: Black / Electrical galvanized / Hot-dip galvanized

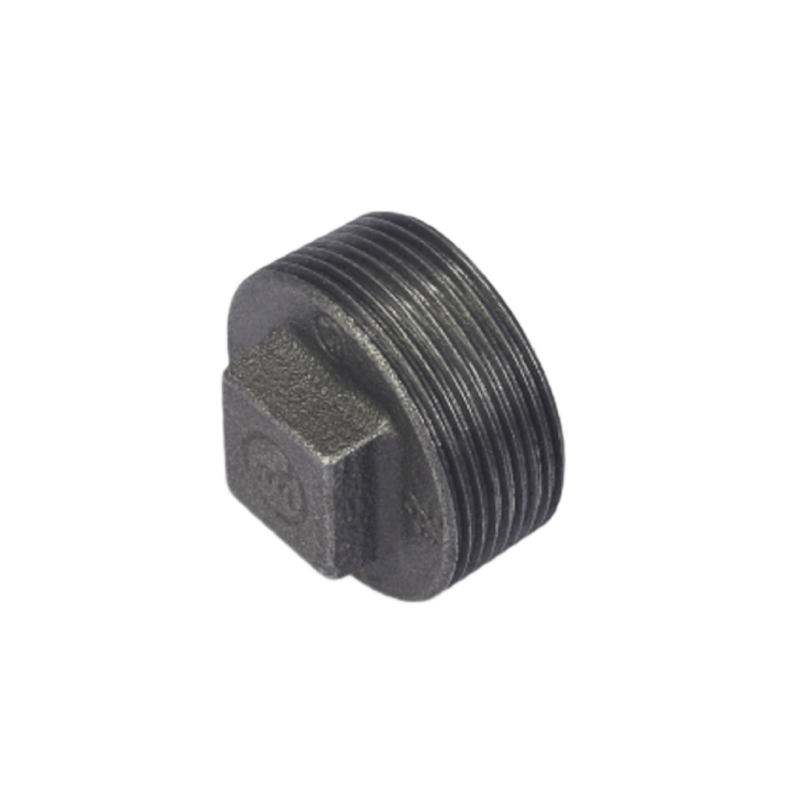

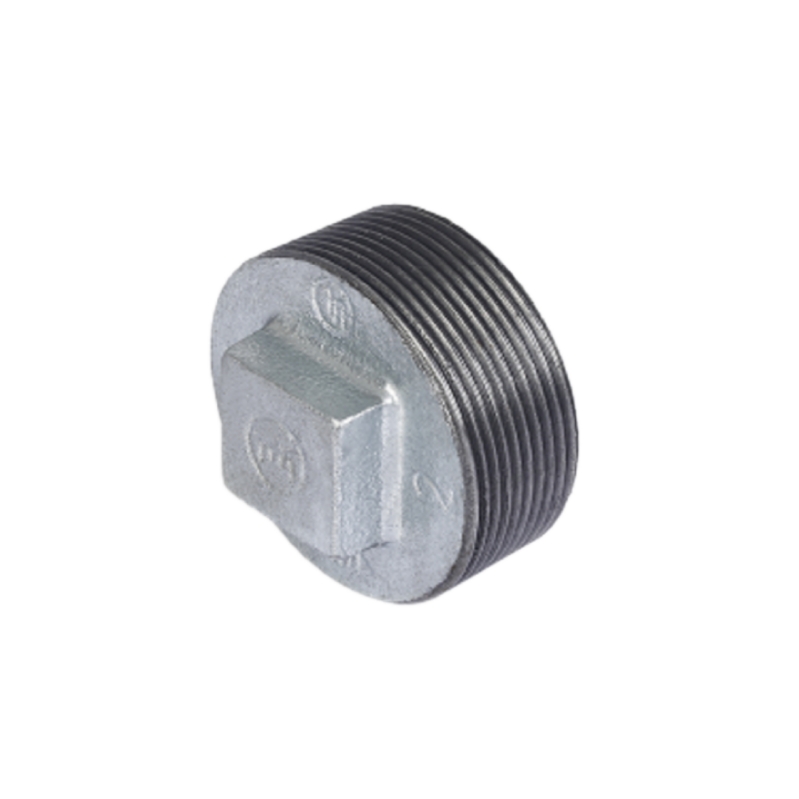

Malleable iron plain plug is used to mount at the pipe end by male threaded connection with protruded end at the other side, so to block the pipeline and form liquid or gas tight seal.
| Size | Inch | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 114 |
| mm | 6 | 8 | 10 | 15 | 20 | 25 | 32 | |

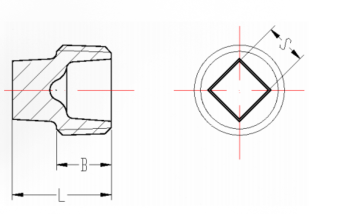

| Dim (mm) |
A | 15.5 | 18.3 | 20.1 | 23.9 | 27.2 | 31.8 | 34.5 |
| Size | Inch | 112 | 2 | 21/2 | 3 | 4 | 6 | |
| mm | 40 | 50 | 65 | 80 | 100 | 150 | ||
| Dim (mm) |
A | 36.9 | 39.7 | 46 | 49 | 64.5 | 71.5 |
Fluid tech group is the first company in northern China that specializes in the field of fire protection.
