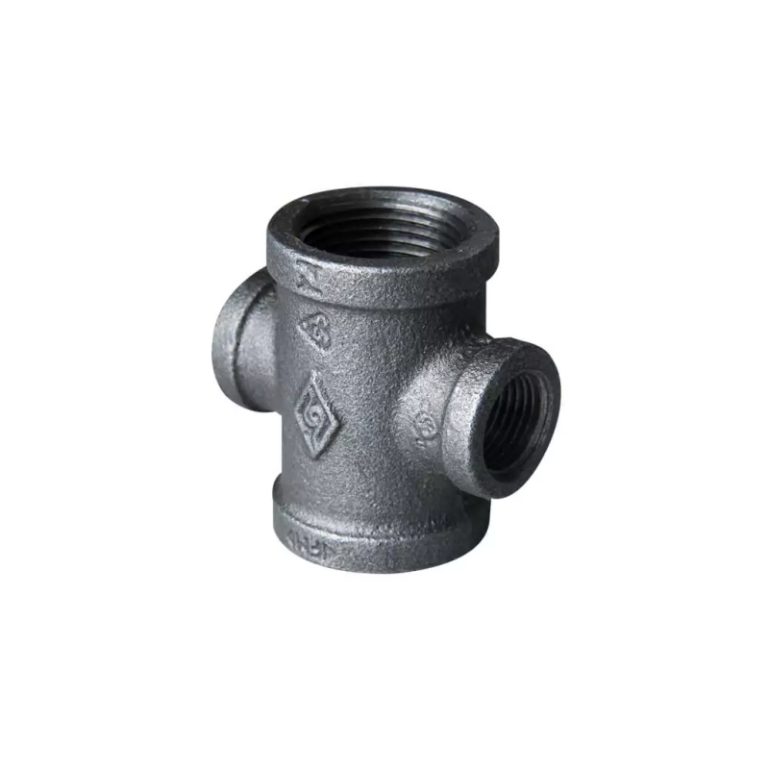

Malleable iron reducing cross ASTM

Features:

Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61

Size: 3/4″*1/2″ – 4″*3″ (DN20X15 – DN100X80)

Pressure: class150 / class300

Dimensions: ANSI B16.3

Material: Malleable iron ASTM A197

Threaded: NPT ASME B1.20.1

Surface: Black / Electrical galvanized / Hot-dip galvanized

Chat Now

Product details

Malleable iron reducing cross has a cross shape to get its name. The branch outlets have different size from the main outlets, and it is used to create two branch pipelines to 90-degree direction.

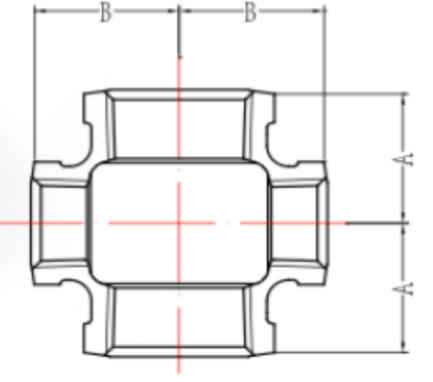

Sze	Inch	4X1	4X11/4		4X1/2		4X2		4X21/2	4X3
	mm	100X25	100X32		100X40		100X50		100X65	100X80
Dim (mm)	A	56	60		62		70		84	82
	B	82	85		85		86		92	90
Sze	Inch	3/4X12	1X1/2		1X3/4		11/4X1/2		114X3/4	11/4X1
	mm	20X15	25X15		25X20		32X15		32X20	32X25
Dim (mm)	A	30.5	32		34.8		33		36.8	40.1
	B	31.0	35.5		36.8		37.5		41.2	42.4
Size	Inch	11/2X12		11/2X3/4		112X1		112X11/4		2X3/4
	mm	40X15		40X20		40X25		40X32		50X20
Dim (mm)	A	34.5		38.6		41.9		46.2		40.6
	B	41		44.5		45.7		47.8		50
Size	Inch	2X1		2X11/4		2X112		21/2X3/4		21/2X1
	mm	50X25		50X32		50X40		65X20		65X25
Dim. (mm)	A	43.9		48.3		51.3		43		47
	B	51.3		53.3		54.9		57		60
Size	Inch	21/2X114		21/2X11/2		21/2X2		3X3/4		3X1
	mm	65X32		65X40		65X50		80X20		80X25
Dim (mm)	A	52		55		60.7		45		49
	B	62		63		66		65		66
Size	Inch	3X114		3X11/2		3X2		3X21/2
	mm	80X32		80X40		80X50		80X65
Dim (mm)	A	53		56.5		64		72
	B	68		69.5		73.4		76
