Features:
Certificate: FM Approved / UL Listed
Size: 3/4”x1/2”- 1”x1/2”
Pressure: 2.5 Mpa / PN25
Dimensions: DIN EN 10242
Material: Malleable iron DIN EN 1562
Threaded: BSPP (ISO228) / BSPT (ISO7-1)
Surface: Black / Electrical galvanized / Hot-dip galvanized

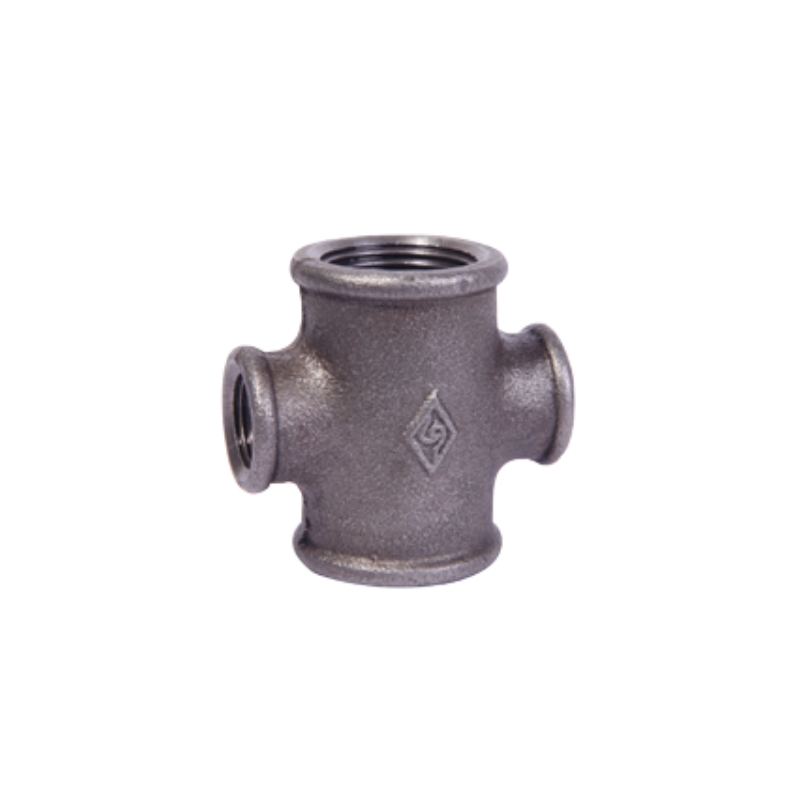

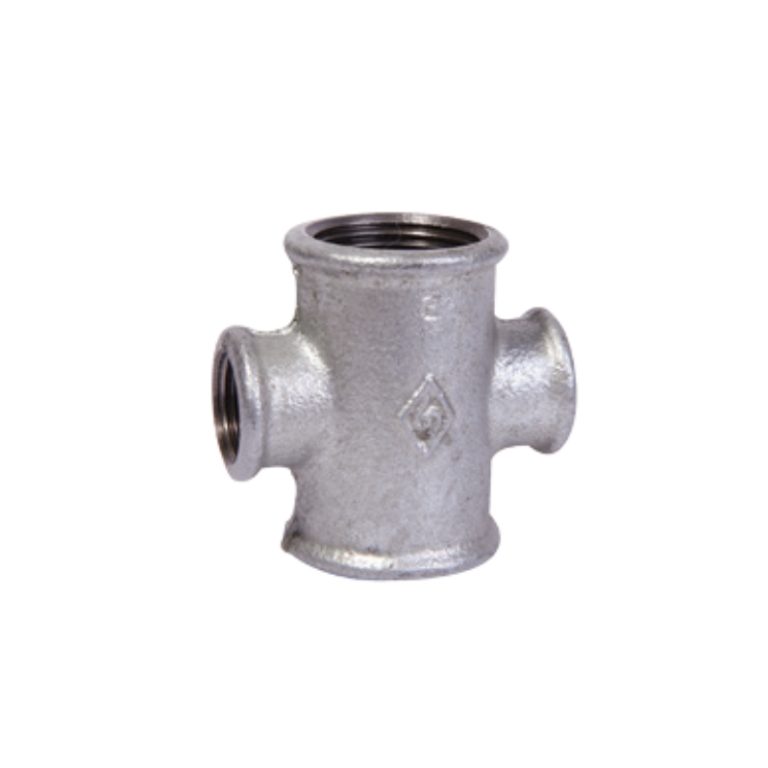

Malleable cast iron reducing cross is a kind of connector that uses internal thread as the connection method to divide and merge four pipes with different balanced cross-sections in horizontal and vertical directions.
| Size | Inch | 3/4X1/2 | 1X1/2 |
| mm | 20X15 | 25X15 | |
| Dim. (mm) |
A | 30 | 32 |
| B | 31 | 34 |
