Malleable iron reducing socket ASTM

Features:

Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61

Size: 1/4”*1/8”-8”*6”(DN10X6 – DN200X150)

Pressure: 2.5 Mpa / PN25

Dimensions: ANSI B16.3

Material: Malleable iron ASTM A197

Threaded: NPT ASME B1.20.1

Surface: Black / Electrical galvanized / Hot-dip galvanized

Chat Now

Product details

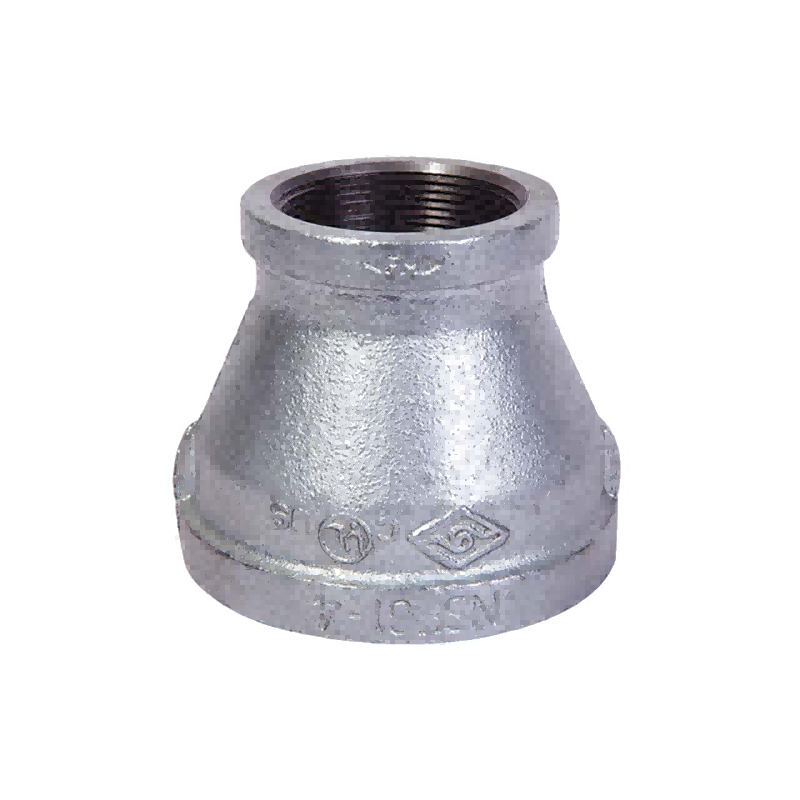

Malleable iron reducing socket is cone-shaped pipe fitting with female threaded connection, and it is used to join two pipes of different size at the same axis.

SIZE		A (MM)
1/4 “x 1/8”	8×6	25.4
3/8 “x 1/8”	10×6	28.7
3/8 “x 1/4”	10×8	28.7
1/2 “x 1/8”	15×6	31.8
1/2 “x 1/4”	15×8	31.8
1/2 “x 3/8”	15×10	31.8
3/4 “x 1/8”	20×6	36.6
3/4 “x 1/4”	20×8	36.6
3/4 “x 3/8”	20×10	36.6
3/4 “x 1/2”	20×15	36.6
1 “x 1/4”	25×8	42.9
1 “x 3/8”	25×10	42.9
1 “x 1/2”	25×15	42.9
1 “x 3/4”	25×20	42.9
1-1/4″x1/4″	32X8	52.3
1-1/4″x3/8″	32X10	52.3
1-1/4″x1/2″	32×15	52.3
1-1/4″x3/4″	32×20	52.3
1-1/4″x1″	32×25	52.3
1-1/2″x1/4″	40×8	58.7
1-1/2″x3/8″	40×10	58.7
1-1/2″x1/2″	40×15	58.7
1-1/2″x3/4″	40×20	58.7
1-1/2″x1″	40×25	58.7
2 “x1/2”	50×15	71.4
1-1/2″x1-1/4″	40X32	58.7
2 “x3/4”	50×20	71.4
2 “x 1”	50×25	71.4
2 “x1-1/4”	50×32	71.4
2″x1-1/2″	50×40	71.4
2-1/2″x1/2″	65×15	82.6
2-1/2″x3/4″	65×20	82.6
2-1/2″x1″	65×25	82.6
2-1/2″x1-1/4″	65×32	82.6
2-1/2″x 1-1/2″	65×40	82.6
2-1/2″x2″	65×50	82.6
3 “x1/2”	80×15	93.7
3 “x3/4”	80×20	93.7
3 “x 1”	80×25	93.7
3 “x1-1/4”	80×32	93.7
3 “x 1-1/2”	80×40	93.7
3 “x 2”	80×50	93.7
3 “x2-1/2”	80×65	93.7
4 “x 1”	100×25	111.3
4″x 1-1/4″	100×32	111.3
4 “x1-1/2”	100×40	111.3
4 “x 2”	100×50	111.3
4″x2-1/2″	100×65	111.3
4 “x 3”	100×80	111.3
5 “x 4”	125×100	122
6″x 2″	150×50	105
6″x 3″	150×80	105
6″x 4″	150×100	105
8″x6″	200×150	131
