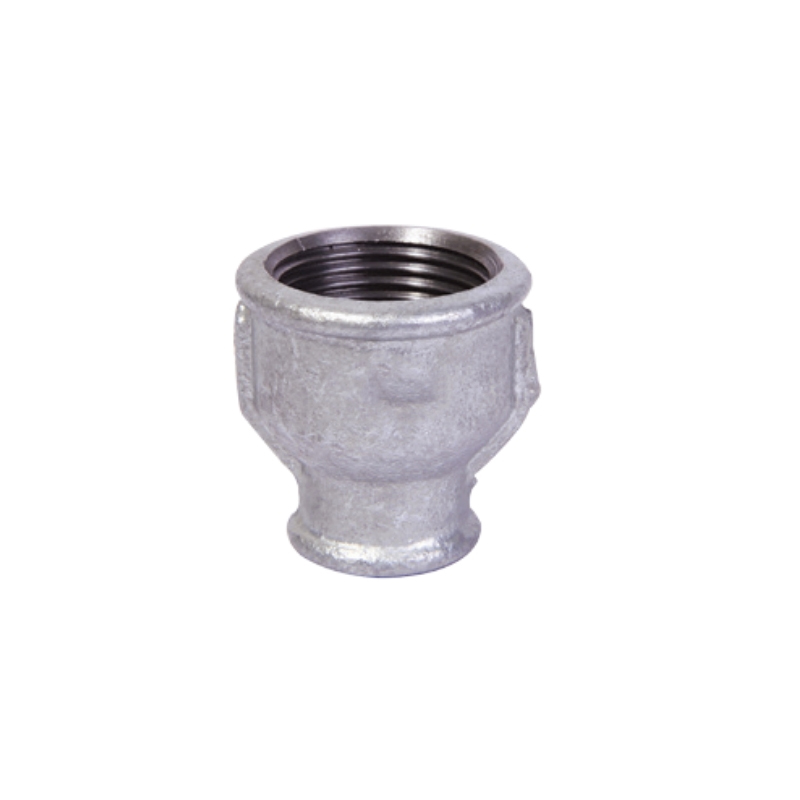

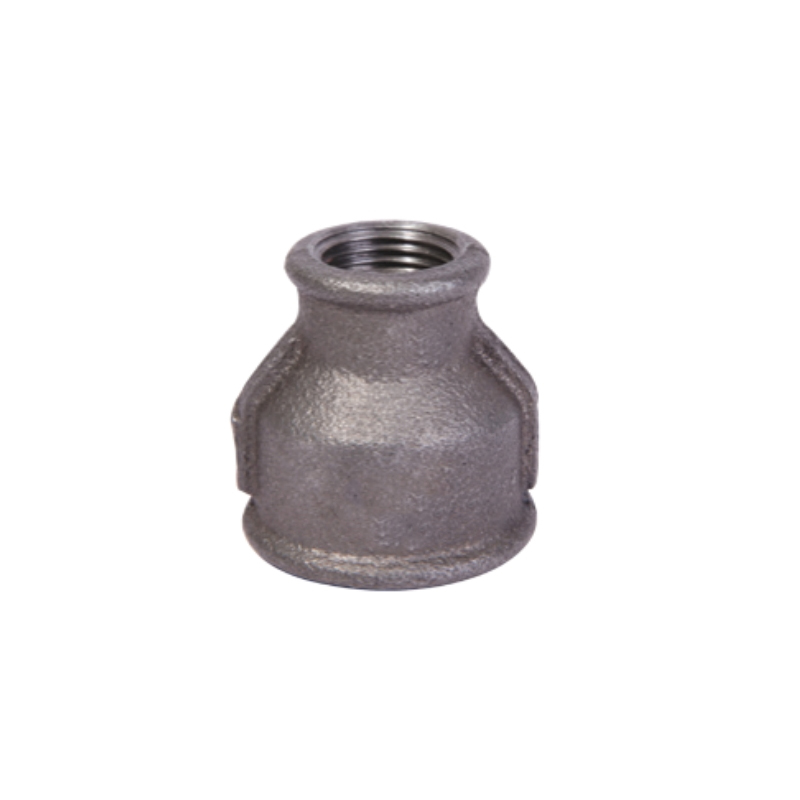

Malleable iron reducing socket beaded

Malleable iron reducing socket beaded

Features:

Certificate: FM Approved / UL Listed

Size: 3/8”X1/8” – 4”X3”(DN10XDN6 – DN100XDN80)

Pressure: 2.5 Mpa / PN25

Dimensions: DIN EN 10242

Material: Malleable iron DIN EN 1562

Threaded: BSPP (ISO228) / BSPT (ISO7-1)

Surface: Black / Electrical galvanized / Hot-dip galvanized

Product details

Malleable iron reducing socket has female thread on the other end for connecting pipes. It can connect pipes of different sizes.

Size	Inch	3/8X1/8	3/8X1/4	1/2X1/4	1/2X3/8	3/4X1/4
Size	mm	10X6	10X8	15X8	15X10	20X8
Dim. (mm)	A	30	30	36	36	39
Size	Inch	3/4X3/8	3/4X1/2	1X3/8	1X1/2	1X3/4
Size	mm	20X10	20X15	25X10	25X15	25X20
Dim.(mm)	A	39	39	45	45	45
Size	Inch	11/4X3/8	11/4X1/2	11/4X3/4	11/4X1	11/2X1/2
Size	mm	32X10	32X15	32X20	32X25	40X15
Dim. (mm)	A	50	50	50	50	55
Size	Inch	11/2X3/4	11/2X1	11/2X11/4	2X1/2	2X3/4
Size	mm	40X20	40X25	40X32	50X15	50X20
Dim.(mm)	A	55	55	55	65	65

Related products

malleable iron 90° elbow-Black

Malleable iron 90°elbow beaded

Black Malleable iron 45° Y-branch (Lateral)

Malleable iron 45°Y branch beaded

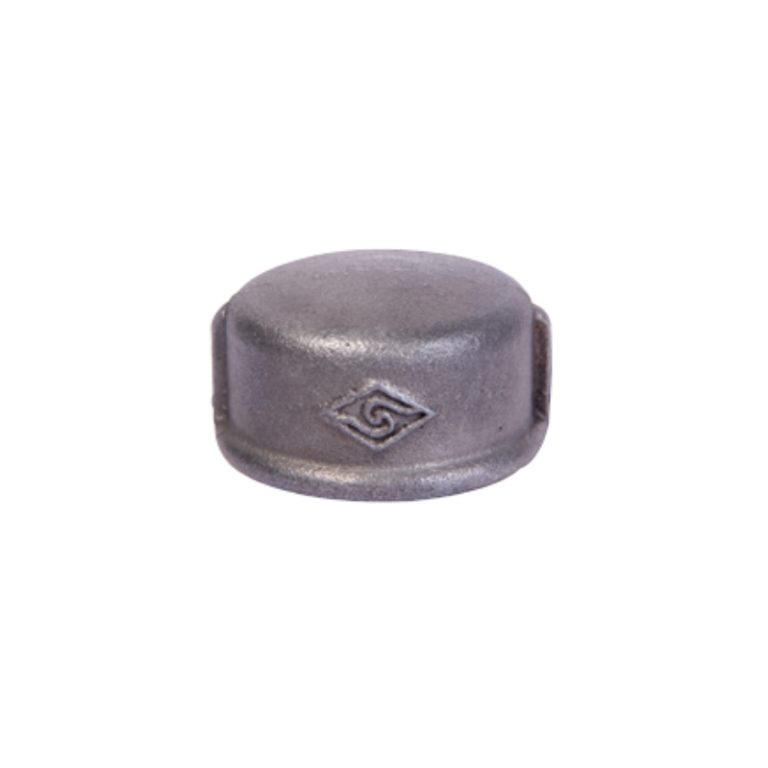

Black malleable cast iron cap
