Malleable iron reducing socket BS EN

Features:

Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61

Size: DN10×8 – DN150×80

Pressure: 2.5 Mpa / PN25

Dimensions: BS EN10242

Material: Malleable iron BS EN1562

Threaded: BSPP (ISO228) / BSPT (ISO7-1)

Surface: Black / Electrical galvanized / Hot-dip galvanized

Chat Now

Product details

Malleable iron reducing socket is cone-shaped pipe fitting with female threaded connection, and it is used to join two pipes of different size at the same axis.

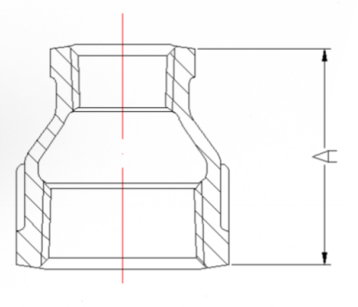

SIZE		A (MM)	PCS/CTN.
3/8″x1/4″	10×8	29	500
1/2″×1/4″	15×8	35	500
1/2″x3/8″	15×10	36	500
3/4 “x1/4”	20×8	38	360
3/4 “x 3/8”	20×10	38	360
3/4 “x 1/2”	20×15	38	360
1″×1/4″	25×8	44	200
1″×3/8″	25×10	44	200
1″x1/2″	25×15	44	200
1 “x 3/4”	25×20	44	200
1-1/4″x1/2″	32×15	49	144
1-1/4″x3/4″	32×20	49	144
1-1/4″x1″	32×25	49	120
1-1/2″x1/2″	40×15	53	140
1-1/2″x3/4″	40×20	53	140
1-1/2″x1″	40×25	53	120
1-1/2″x 1-1/4″	40×32	53	100
2 “x1/2”	50×15	63	80
2 “x3/4”	50×20	63	80
2 “x 1”	50×25	63	72
2 “x1-1/4”	50×32	63	72
2″x1-1/2″	50×40	63	48
2-1/2″x1/2″	65×15	72	60
2-1/2″x3/4″	65×20	72	60
2-1/2″x1″	65×25	72	60
2-1/2″x1-1/4″	65×32	72	60
2-1/2″x 1-1/2″	65×40	72	60
2-1/2″x2″	65×50	72	40
3 “x1/2”	80×15	77.5	40
3 “x3/4”	80×20	77.5	40
3 “x 1”	80×25	77.5	40
3 “x1-1/4”	80×32	77.5	40
3 “x 1-1/2”	80×40	77.5	40
3 “x 2”	80×50	77.5	36
3 “x2-1/2”	80×65	77.5	24
4 “x1/2”	100×15	91.5	20
4 “x3/4”	100×20	91.5	20
4 “x 1”	100×25	91.5	20
4″x 1-1/4″	100×32	91.5	20
4 “x1-1/2”	100×40	91.5	20
4 “x 2”	100×50	91.5	16
4″x2-1/2″	100×65	91.5	14
4 “x 3”	100×80	91.5	12
6″x4″	150×80	118	/
