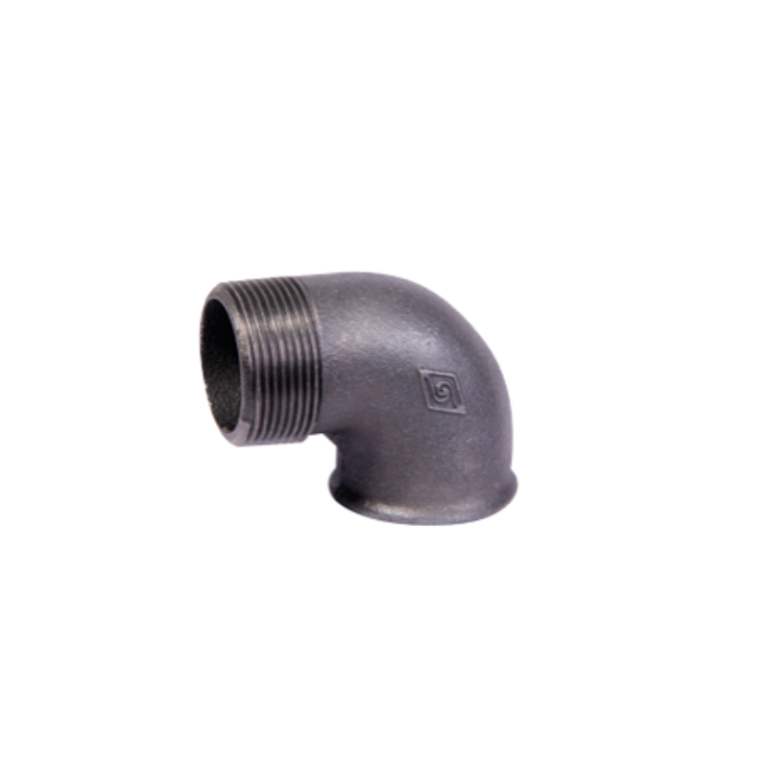

Malleable iron reducing street elbow beaded

Features:

Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61

Size: DN10X15 – DN40X32

Pressure: 2.5 Mpa / PN25

Dimensions: DIN EN 10242

Material: Malleable iron DIN EN 1562

Threaded: BSPP (ISO228) / BSPT (ISO7-1)

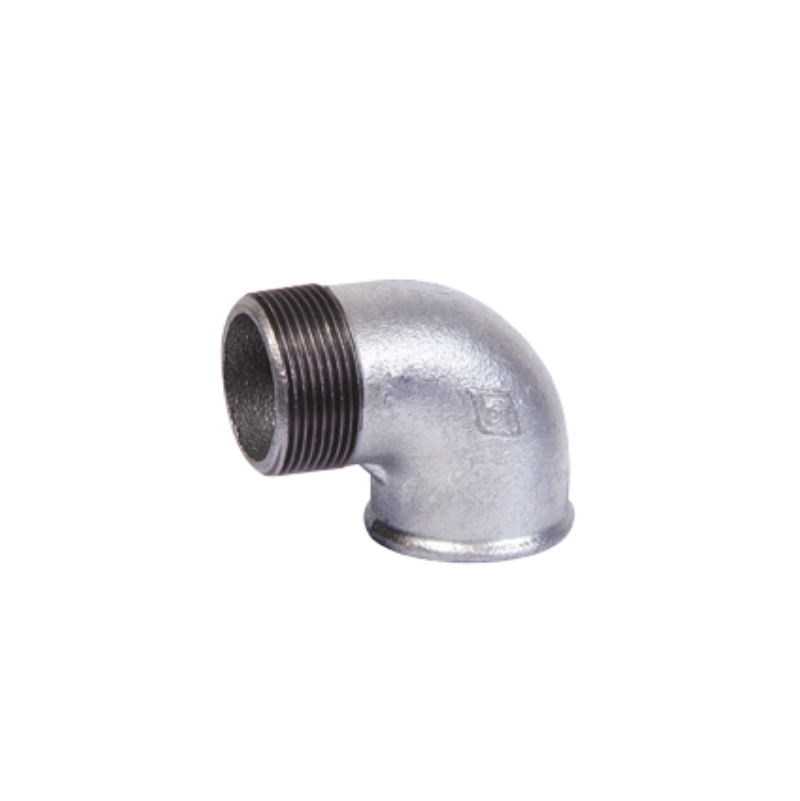

Surface: Black / Electrical galvanized / Hot-dip galvanized

Chat Now

Product details

Malleable iron reducing street elbow beaded is used to connect two pipes of different size by male and female threaded connection, so to make the pipeline turn 90 degree for changing the fluid flow direction.

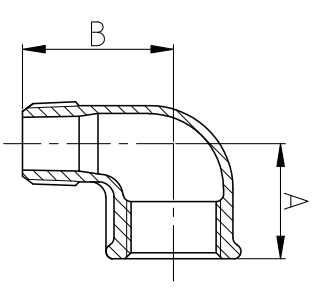

Size	Inch	3/8X12	1/2X3/8	3/4X38	3/4X1/2	1X3/4	11/4X1
Size	mm	10X15	15X10	20X10	20X15	25X20	32X25
Dim (mm)	A	28	26	28	30	35	40
Dim (mm)	B	37	33	38	40	46	56
Size	Inch	11/2X1	11/2X11/4
Size	mm	40X25	40X32
Dim (mm)	A	41	49
Dim (mm)	B	59	61
