Features:
Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61
Size: DN20X15 – DN25X20
Pressure: 2.5 Mpa / PN25
Dimensions: BS EN10242
Material: Malleable iron BS EN1562
Threaded: BSPP (ISO228) / BSPT (ISO7-1)
Surface: Black / Electrical galvanized / Hot-dip galvanized

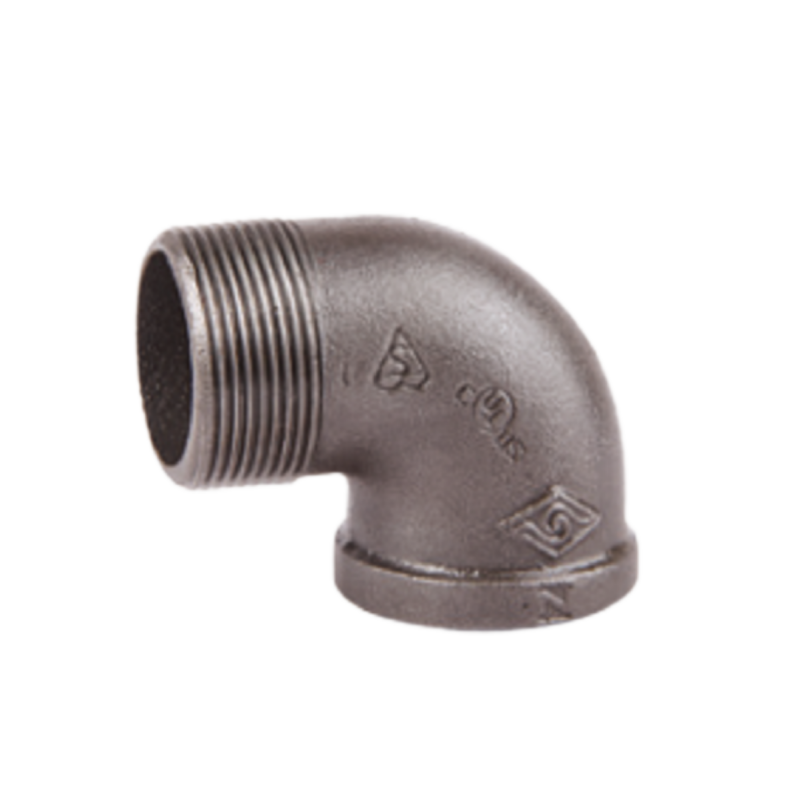

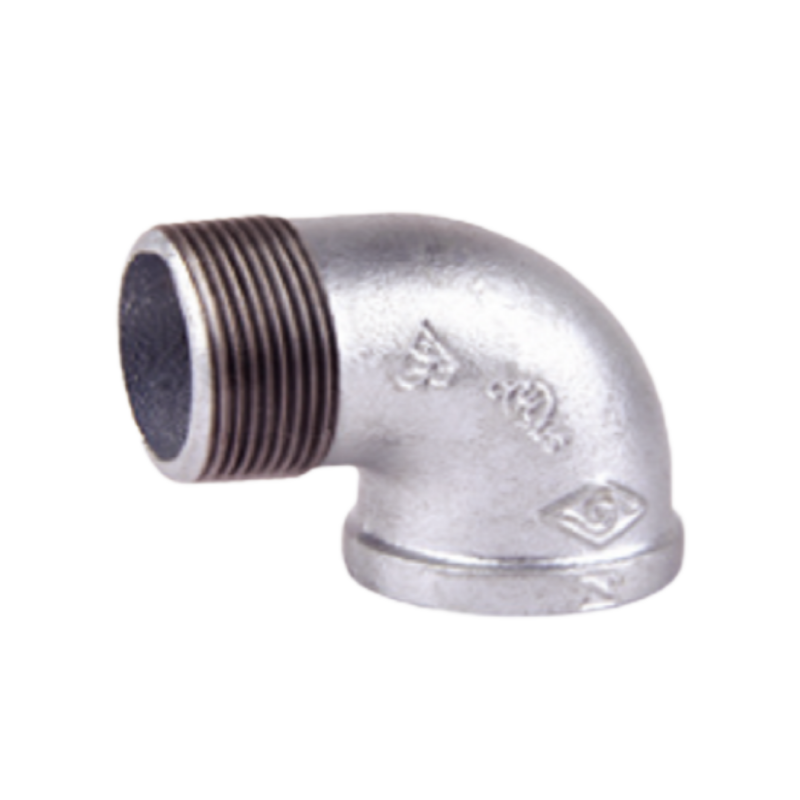

Malleable iron reducing street elbow is used to connect two pipes of different size by male and female threaded connection, so to make the pipeline turn 90 degree for changing the fluid flow direction.
| SIZE | A (MM) | B (MM) | |
| 3/4”X1/2” | DN20X15
|
30
|
65.4
|
| 1”X3/4” | DN25X20
|
35
|
46 |
