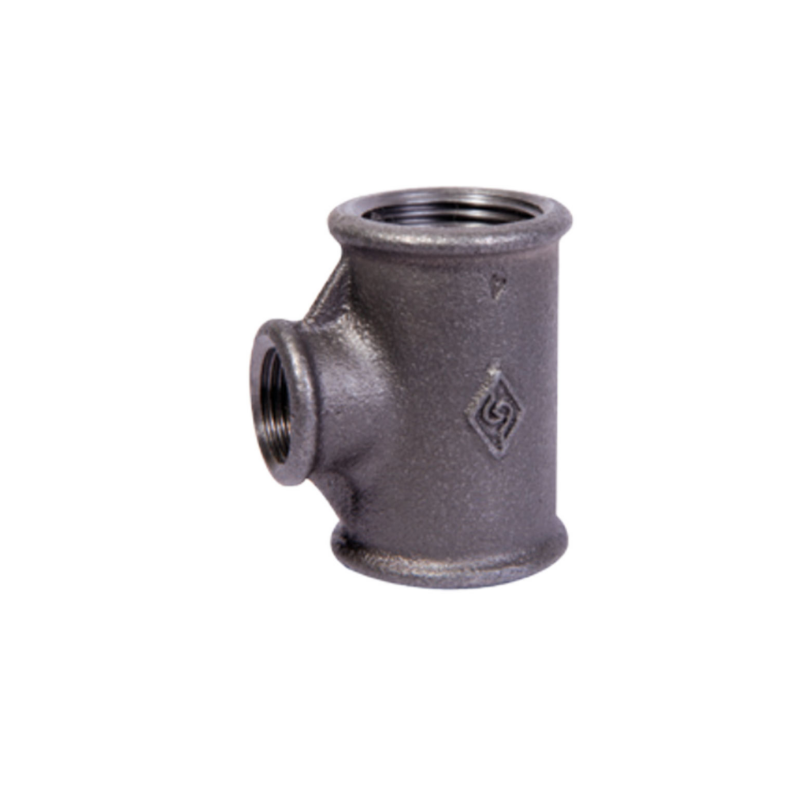

Malleable iron reducing tee (130R) beaded

Features:

Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61

Size: DN10X8- DN100X80

Pressure: 2.5 Mpa / PN25

Dimensions: DIN EN 10242

Material: Malleable iron DIN EN 1562

Threaded: BSPP (ISO228) / BSPT (ISO7-1)

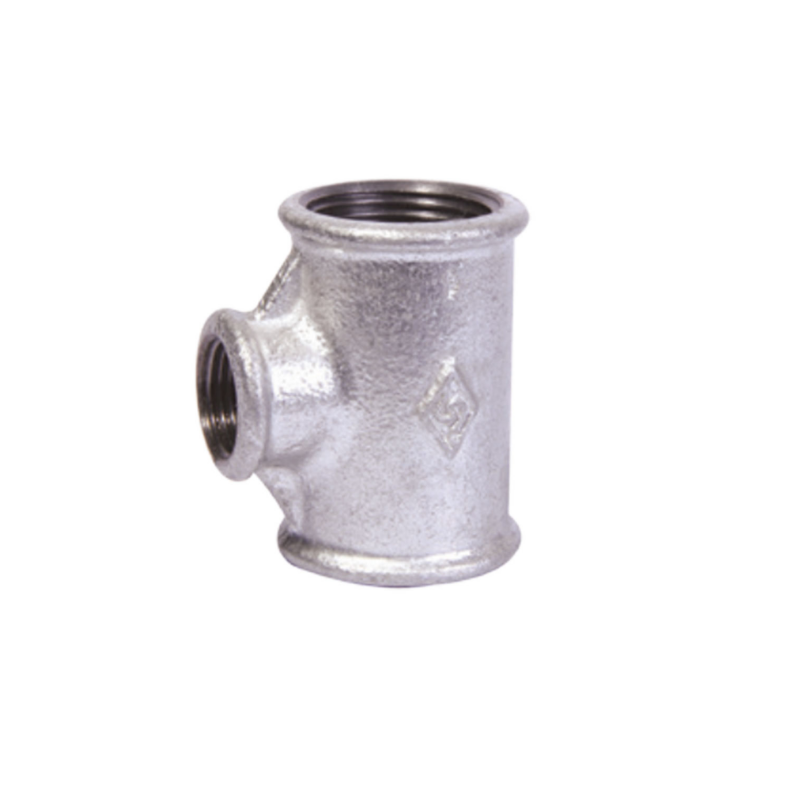

Surface: Black / Electrical galvanized / Hot-dip galvanized

Chat Now

Product details

Malleable iron Reducing Tee-130R is a type of pipe fitting that connects two pipes with different diameters. It is often used in piping systems to accommodate changes in pipe diameter or direction.

Size	Inch	3/8X14	1/2X1/4	1/2X3/8	3/4X14	3/4X3/8
Size	mm	10X8	15X8	15X10	20X8	20X10
Dim. (mm)	A	23	24	26	26	28
Dim. (mm)	B	23	24	06	27	28
Size	Inch	3/4X1/2	1X1/4	1X3/8	1X1/2	1X3/4
Size	mm	20X15	25X8	25X10	25X15	25X20
Dim. (mm)	A	30	28	30	32	35
Dim. (mm)	B	31	31	32	34	36
Size	Inch	11/4X3/8	11/4X1/2	11/4X3/4	11/4X1	11/2X1/2
Size	mm	32X10	32X15	32X20	32X25	40X15
Dim. (mm)	A	32	34	36	40	36
Dim. (mm)	B	36	38	41	42	42
Size	Inch	11/2X3/4	11/2X1	11/2X11/4	2X1/2	2X3/4
Size	mm	40X20	40X25	40X32	50X15	50X20
Dim. (mm)	A	38	42	46	38	40
Dim. (mm)	B	44	46	48	48	50
