Features:
Certificate: FM Approved / UL Listed
Size: 3/4”X1/2”X1/2”- 3”X2-1/2”X2”(DN20XDN15XDN15- DN80XDN65XDN50)
Pressure: class150
Dimensions: ANSI B16.3
Material: Malleable iron ASTM A197
Threaded: NPT ASME B1.20.1
Surface: Black / Electrical galvanized / Hot-dip galvanized

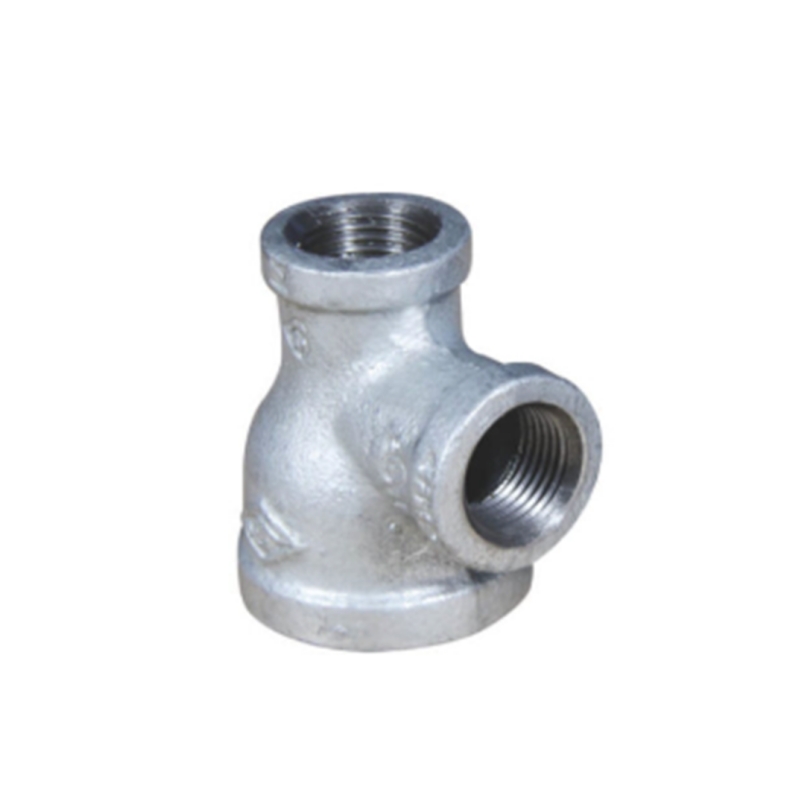

Malleable cast iron reducing tee (131R) has female threads on three ends and is used to connect pipes with male threads of different specifications. Used to change the direction of the fluid, used at the branch pipe of the main pipeline.
| SIZE | A (MM) | B (MM) | C (MM) | |
| 3/4”X1/2”X1/2” | DN20XDN15XDN15 | 30.5 | 31 | 28.5 |
| 1”X1/2”X1/2” | DN25XDN15XDN15 | 32 | 35.5 | 28.5 |
| 1”X3/4”X3/4” | DN25XDN20XDN20 | 34.8 | 36.8 | 33.3 |
| 1-1/4”X1/2”X1/2” | DN32XDN15XDN15 | 34 | 38 | 27 |
| 1-1/4”X3/4”X3/4” | DN32XDN20XDN20 | 36.8 | 41.2 | 33.3 |
| 1-1/4”X1”X1” | DN32XDN25XDN25 | 40.1 | 42.4 | 38.1 |
| 1-1/2”X3/4”X3/4” | DN40XDN20XDN20 | 38 | 43 | 32 |
| 1-1/2”X1”X1” | DN40XDN25XDN25 | 41.9 | 45.7 | 38.1 |
| 1-1/2”X1-1/4”X1-1/4” | DN40XDN32XDN32 | 46.2 | 47.8 | 44.5 |
| 2”X1”X1” | DN50XDN25XDN25 | 44 | 51 | 38 |
| 2”X1-1/4”X1-1/4” | DN50XDN32XDN32 | 48.3 | 53.3 | 44.5 |
| 2”X1-1/2”X1-1/2” | DN50XDN40XDN40 | 51.3 | 54.9 | 49.3 |
| 2-1/2”X2”x2” | DN65XDN50XDN50 | 60.7 | 66 | 57.2 |
| 3”X2”x2” | DN80XDN50XDN50 | 64 | 73.4 | 57.2 |
Note: For more size, please download the specification.
