Features:
Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61
Size: 1/8”-8”(DN6 – DN200)
Pressure: 2.5 Mpa / PN25
Dimensions: ANSI B16.3
Material: Malleable iron ASTM A197
Threaded: NPT ASME B1.20.1
Surface: Black / Electrical galvanized / Hot-dip galvanized

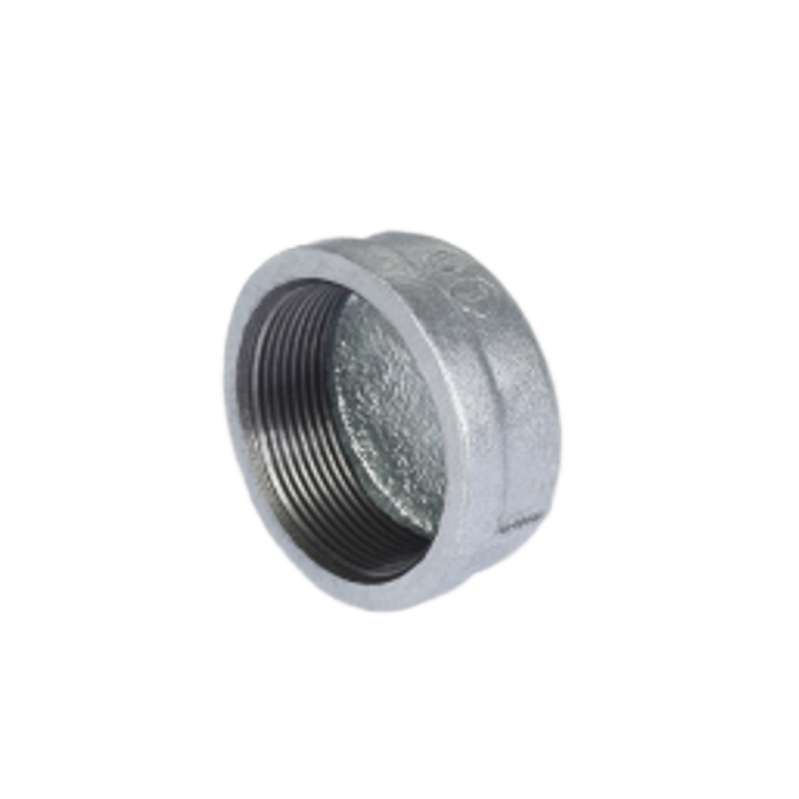

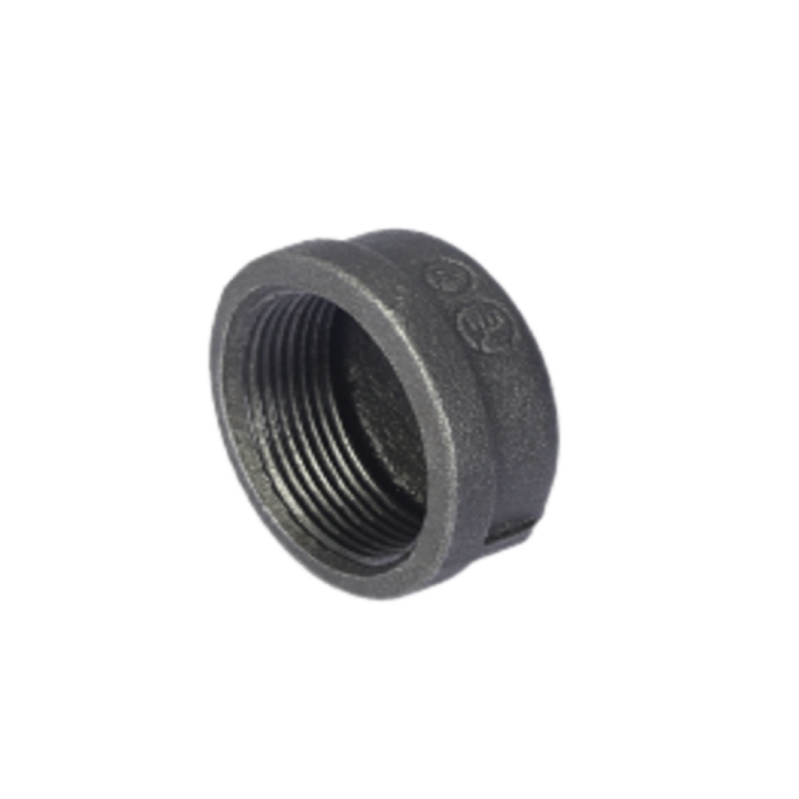

Malleable iron round cap is a kind of pipe fitting commonly used in the end of pipe to stop the fluid system.
| Size | Inch | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 41/4 | 11/2 |
| mm | 6 | 8 | 10 | 15 | 20 | 25 | 32 | 40 | |
| Dim. (mm) |
A Min | 13.5 | 16.0 | 18.8 | 22.1 | 24.6 | 29.5 | 32.5 | 33.8 |
| Size | Inch | 2 | 21/2 | 3 | 4 | 5 | 6 | 8 | |
| mm | 50 | 65 | 80 | 100 | 125 | 150 | 200 | ||
| Dim. (mm) |
A | 36.8 | 43.2 | 45.7 | 52.8 | 58.9 | 64.8 | 76.2 |
