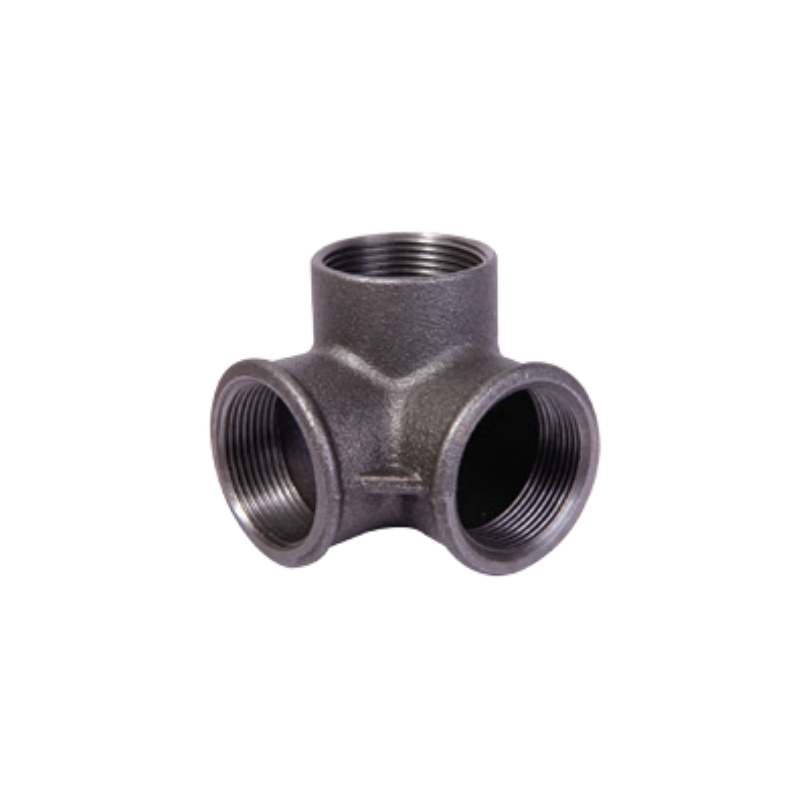

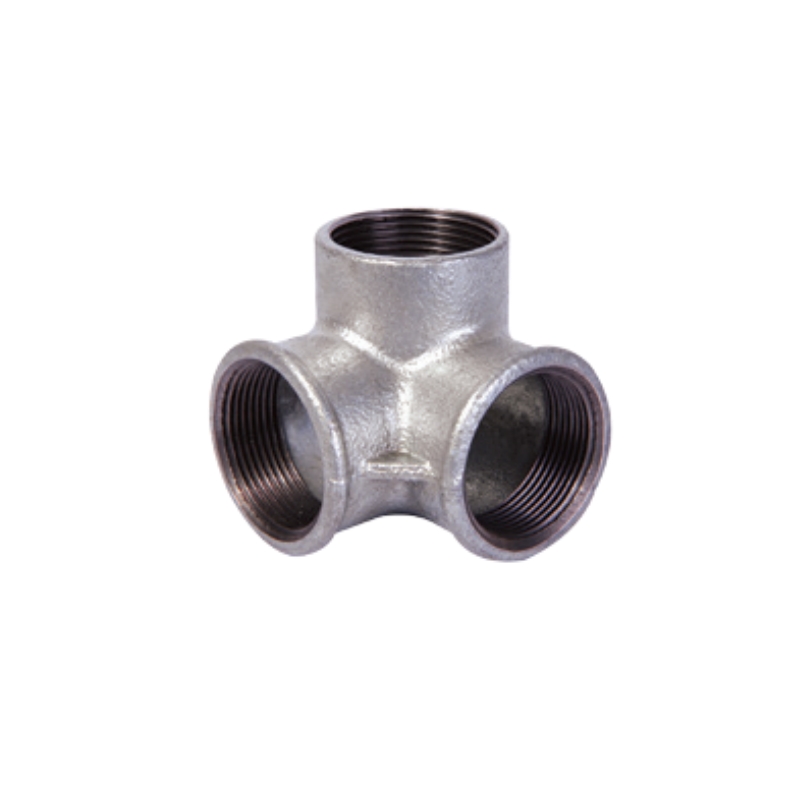

Malleable iron side outlet elbow beaded

Malleable iron side outlet elbow beaded

Features:

Certificate: FM Approved / UL Listed

Size: 3/8” – 2” (DN 10 – DN 50)

Pressure: 2.5 Mpa / PN25

Dimensions: DIN EN 10242

Material: Malleable iron DIN EN 1562

Threaded: BSPP (ISO228) / BSPT (ISO7-1)

Surface: Black / Electrical galvanized / Hot-dip galvanized

Chat Now
Message
Email

Product details

Malleable Cast Iron Side Outlet Elbow draw

Malleable iron side outlet elbow is with three ends female threads and used to connect the pipes with male thread. It can change the pipeline direction by 90 degree.

Size Inch 3/8 1/2 3/4 1 11/4 11/2
mm 10 15 20 25 32 40
Dim.
(mm)		 A 25 28 33 38 45 50
Size Inch 2
mm 50
Dim.
(mm)		 A 58
