Features:
Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61
Size: 1/8”-6”(DN6 – DN150)
Pressure: 2.5 Mpa / PN25
Dimensions: ANSI B16.3
Material: Malleable iron ASTM A197
Threaded: NPT ASME B1.20.1
Surface: Black / Electrical galvanized / Hot-dip galvanized

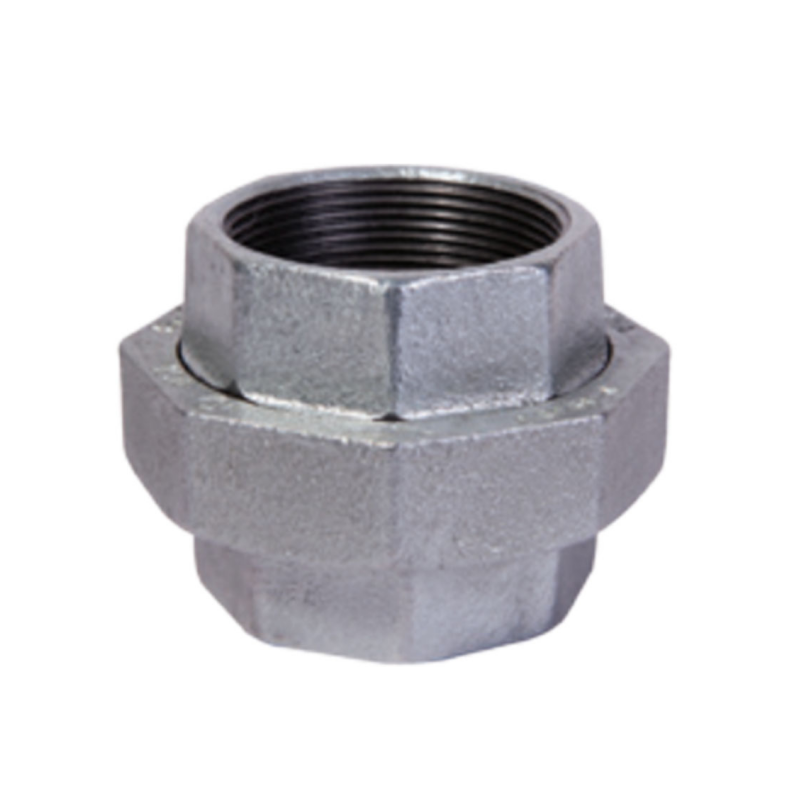

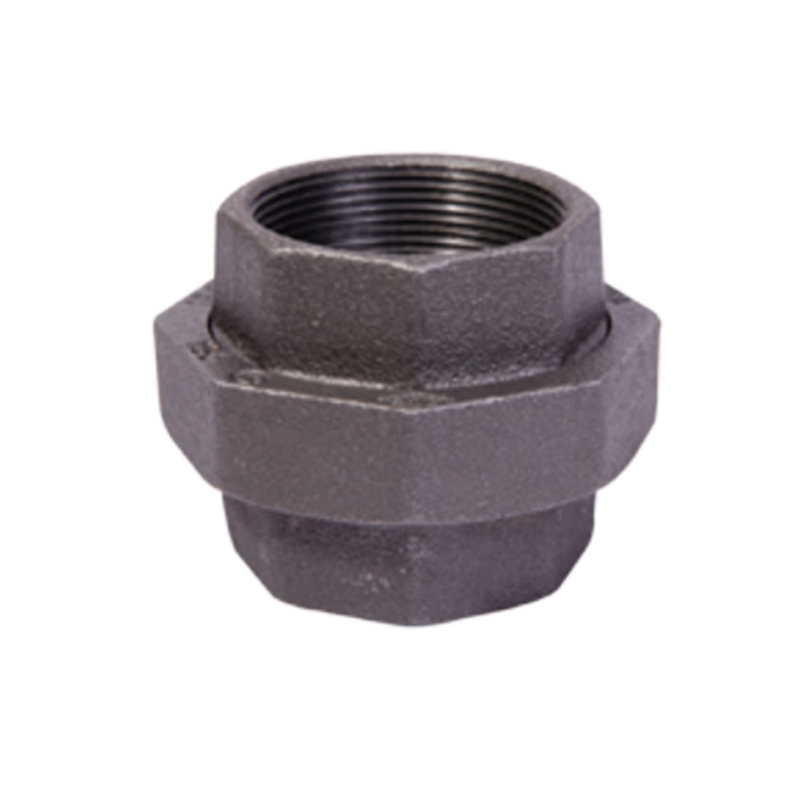

Malleable iron union (Brass seat) is a detachable fitting with both female threaded connections. It consists of a tail or male part, a head or female part, and a union nut, with brass seat.
| Size | Inch | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 114 |
| mm | 6 | 8 | 10 | 15 | 20 | 25 | 32 | |
| Dim (mm) |
A Min | 32 | 36.5 | 41 | 43.5 | 49.5 | 52.5 | 57.5 |
| Size | Inch | 112 | 2 | 21/2 | 3 | 4 | 6 | |
| mm | 40 | 50 | 65 | 80 | 100 | 150 | ||
| Dim (mm) |
A Min | 61 | 70 | 82 | 89 | 98 | 145 |
Fluid tech group is the first company in northern China that specializes in the field of fire protection.
