Features:
Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61
Size:3/8”-4”( DN10 – DN100)
Pressure: 2.5 Mpa / PN25
Dimensions: ANSI B16.3
Material: Malleable iron ASTM A197
Threaded: NPT ASME B1.20.1
Surface: Black / Electrical galvanized / Hot-dip galvanized

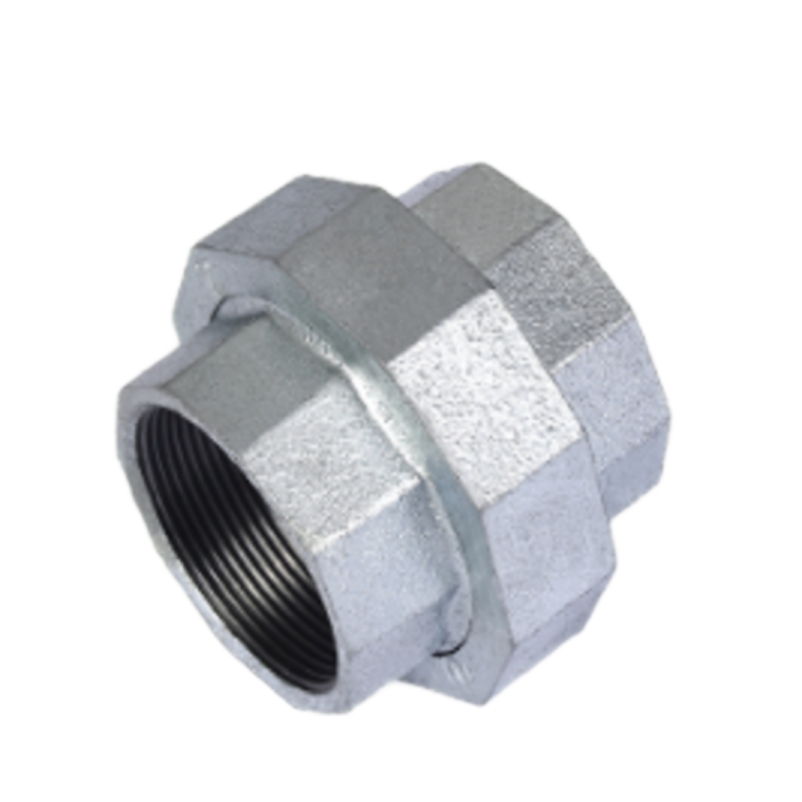

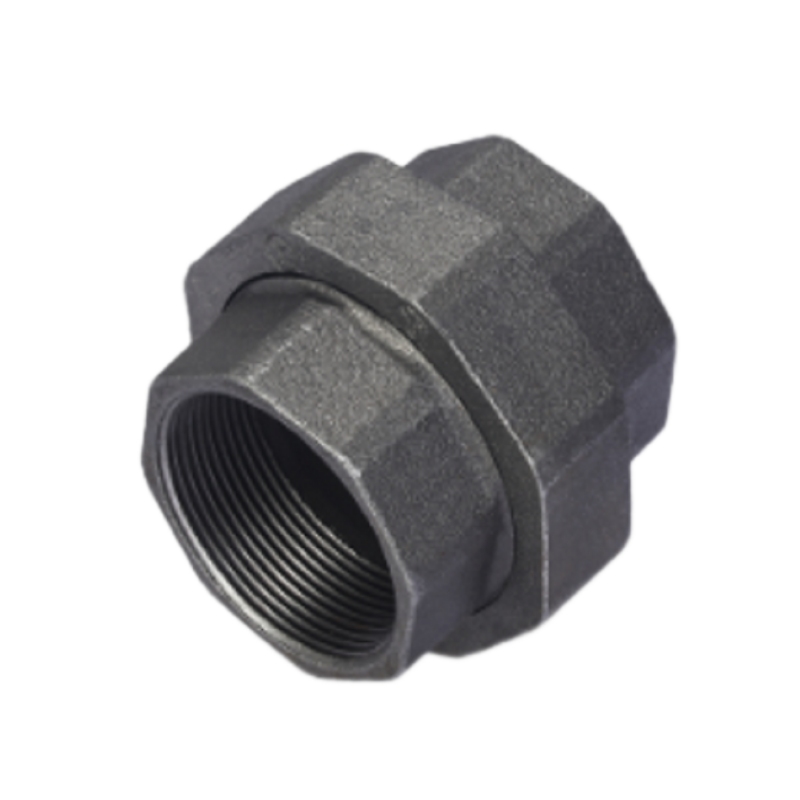

Malleable iron union(Flat seat) is a detachable fitting with both female threaded connections. It consists of a tail or male part, a head or female part, and a union nut, with flat seat.
| SIZE | A (MM) | PCS/CTN. | |
| 3/8” | DN10 | 39 | 280 |
| 1/2” | DN15 | 46 | 180 |
| 3/4” | DN20 | 50 | 120 |
| 1” | DN25 | 56 | 88 |
| 1 1/4” | DN32 | 63 | 56 |
| 1 1/2” | DN40 | 68 | 36 |
| 2” | DN50 | 76 | 28 |
| 2 1/2” | DN65 | 83 | 12 |
| 3” | DN80 | 93 | 10 |
| 4” | DN100 | 113.5 | 6 |
Fluid tech group is the first company in northern China that specializes in the field of fire protection.
