Features:
Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61
Size: DN15 – DN50
Pressure: 2.5 Mpa / PN25
Dimensions: BS EN10242
Material: Malleable iron BS EN1562
Threaded: BSPP (ISO228) / BSPT (ISO7-1)
Surface: Black / Electrical galvanized / Hot-dip galvanized

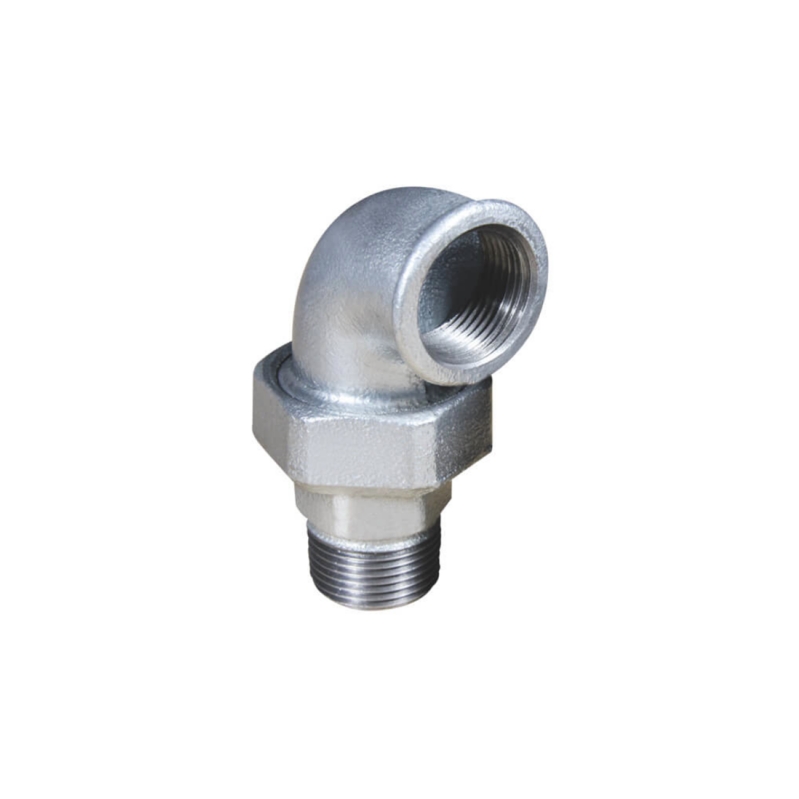

Malleable iron union elbow M&F is female thread on one side and male thread on the other side. It can change the pipeline direction by 90 degree.
| SIZE | L (MM) | PCS/CTN. | |
| 1/2” | DN15 | 64 | 140 |
| 3/4” | DN20 | 70 | 120 |
| 1” | DN25 | 78 | 80 |
| 1 1/4” | DN32 | 88 | 40 |
| 1 1/2” | DN40 | 93 | 32 |
| 2” | DN50 | 104 | 20 |
Fluid tech group is the first company in northern China that specializes in the field of fire protection.
