Features:
Certificate: FM Approved / UL Listed
Size: 1/8” – 6” (DN 6 – DN 150)
Pressure: 2.5 Mpa / PN25
Dimensions: DIN EN 10242
Material: Malleable iron DIN EN 1562
Threaded: BSPP (ISO228) / BSPT (ISO7-1)
Surface: Black / Electrical galvanized / Hot-dip galvanized

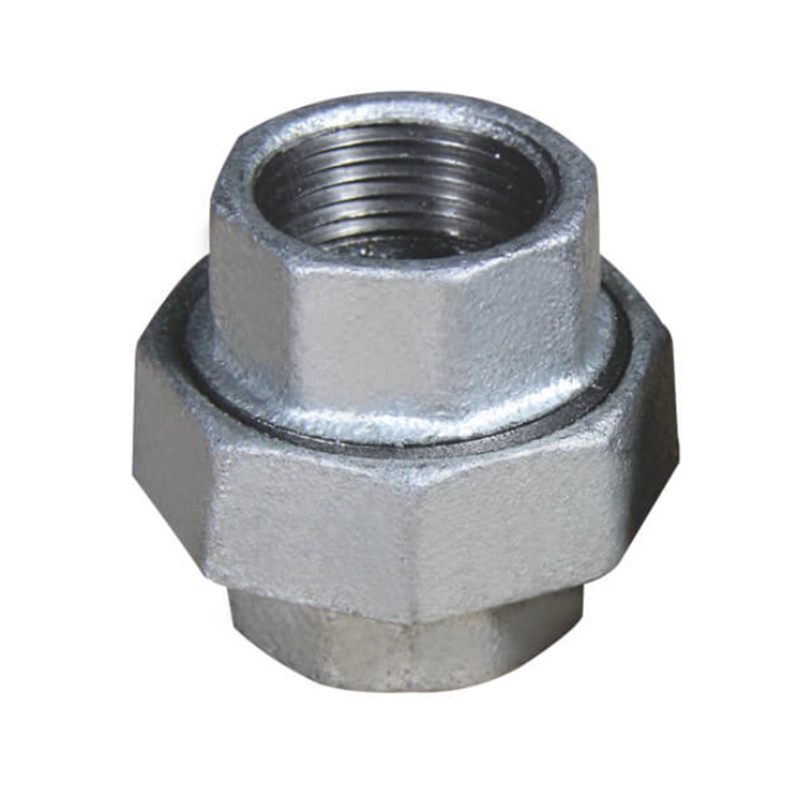

Malleable cast iron union brass seat is a pipe connector or fastener made of malleable cast iron with brass seat inside. The joint between the pipes is easy to install and remove without moving the entire pipe system
| Size | Inch | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 |
| mm | 8 | 10 | 15 | 20 | 25 | 32 | |

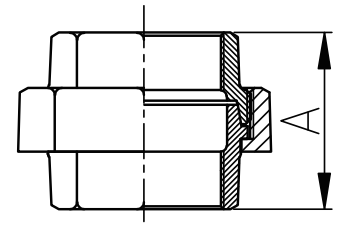

| Dim. (mm) |
A | 45 | 48 | 51 | 55 | 61 | 68 |
| Size | Inch | 11/2 | 2 | 21/2 | 3 | 4 | |
| mm | 40 | 50 | 65 | 80 | 100 | ||
| Dim. (mm) |
A | 73 | 81 | 88 | 98 | 113 |
