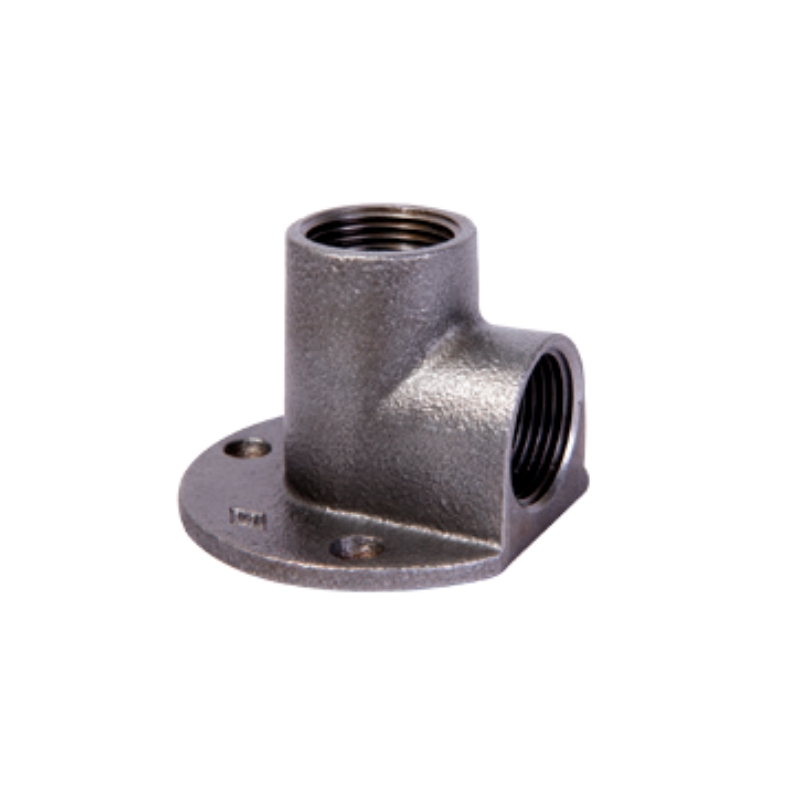

Malleable iron wall elbow beaded

Malleable iron wall elbow beaded

Features:

Certificate: FM Approved / UL Listed

Size: 1/2” – 1” (DN 15 – DN 25)

Pressure: 2.5 Mpa / PN25

Dimensions: DIN EN 10242

Material: Malleable iron DIN EN 1562

Threaded: BSPP (ISO228) / BSPT (ISO7-1)

Surface: Black / Electrical galvanized / Hot-dip galvanized

Product details

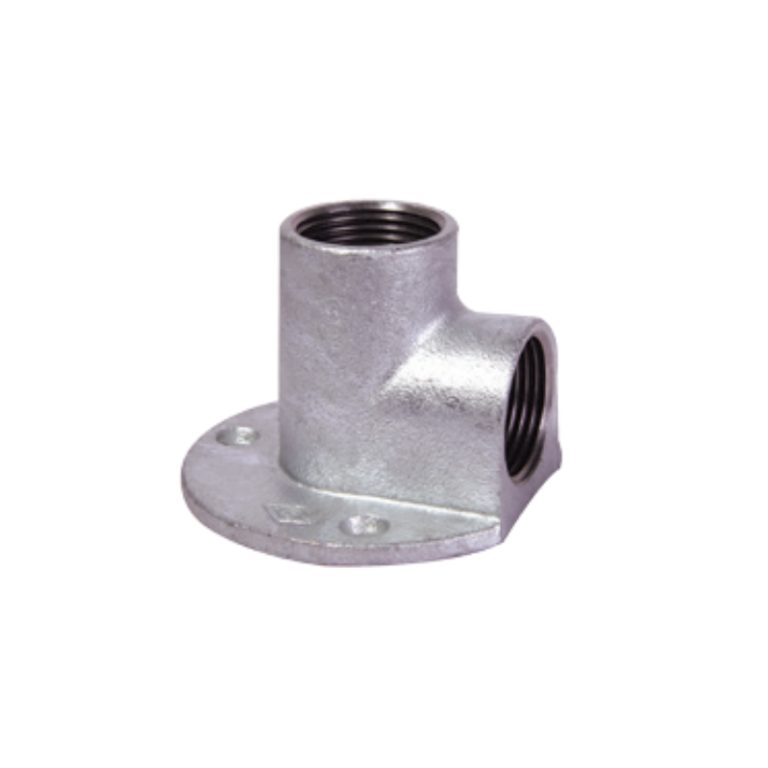

Malleable Cast iron Wall Elbow draw

Malleable iron wall elbow is with two ends female threads and used to connect the pipes with male thread. It can change the pipeline direction by 90 degree.

Size Inch 1/2 3/4 1
mm 15 20 25
Dim.
(mm)
A 28 33 38
B 18 20 23
