Features:

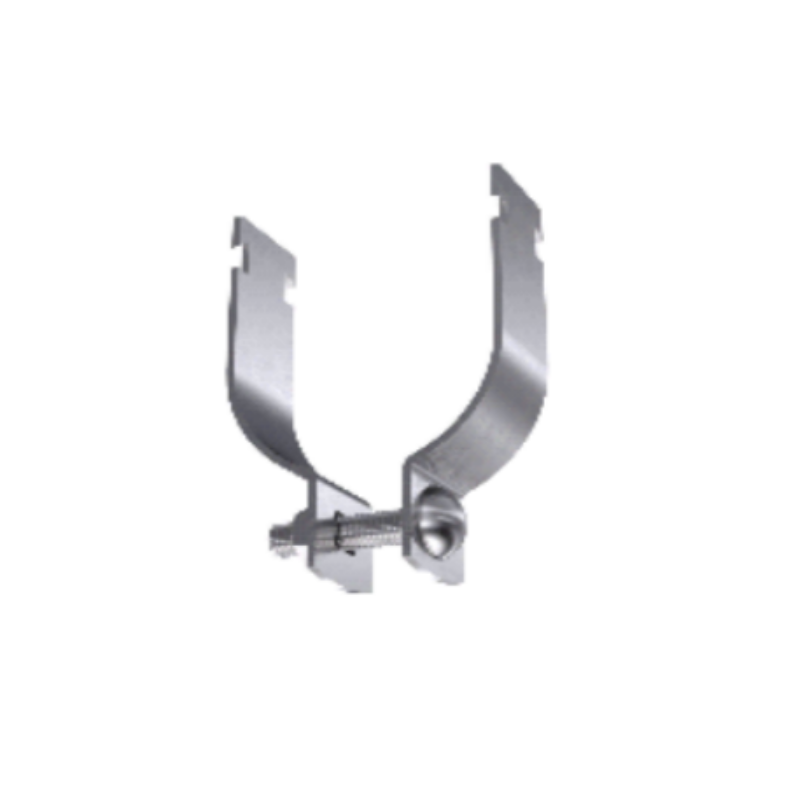

Function:Used to fix pipe directly on channel steel open surface, realizing unidirectional or bidirectional anti-seismic of multi-pipe system.
Material:Carbon steel
Finish:Electro-galvanized,Pre-galvanized
Approvals :FM certification is available from 3/4″ to 12″
Maximum Temperature:343°C (650°F)
Ordering:Specify size,Finish.
P-type pipe bundle refers to a specialized configuration of pipes used in industrial applications, typically in the context of heat exchangers or complex piping systems. This bundle consists of a series of pipes arranged in a specific pattern, often in the shape of the letter “P,” where multiple parallel pipes are enclosed or bundled together for better efficiency in heat transfer, fluid movement, or other purposes.
| Size | Specification of bolts and Size | A | B | C | Max.Rec.Load | |||
| mm | in | mm | mm | mm | Lbs | Kg | N | |
1/2″ |
M8 | 5/16″-18UNC |
24.9 | 25.65 | 65 | 299 | 135 | 1334 |
3/4″ |
M8 | 5/16″-18UNC |
30.3 | 28.35 | 71 | 299 | 135 | 1334 |
1″ |
M8 | 5/16″-18UNC |
37 | 31.7 | 78.5 | 299 | 135 | 1334 |
1-1/4″ |
M8 | 5/16″-18UNC |
45.8 | 36.1 | 87.5 | 299 | 135 | 1334 |
1-1/2″ |
M8 | 5/16″-18UNC |
52.8 | 39.15 | 94 | 299 | 135 | 1334 |
2″ |
M8 | 5/16″-18UNC |
64.8 | 45.15 | 106.5 | 299 | 135 | 1334 |
2-1/2″ |
M10 | 3/8″-16UNC |
77.5 | 51.5 | 117.5 | 339 | 153 | 1512 |
3″ |
M10 | 3/8″-16UNC |
93.4 | 59.45 | 134 | 419 | 189 | 1868 |
| 3-1/2″ | M10 | 3/8″-16UNC | 106.1 | 65.8 | 147 | 499 | 225 | 2224 |
4″ |
M10 | 3/8″-16UNC |
118.8 | 72.15 | 160 | 599 | 270 | 2668 |
5″ |
M10 | 3/8″-16UNC |
146.7 | 85.65 | 190.5 | 799 | 360 | 3558 |
6″ |
M10 | 3/8″-16UNC |
173.7 | 99.15 | 218 | 1059 | 477 | 4714 |
8″ |
M10 | 3/8″-16UNC |
228.1 | 124.55 | 271 | 1619 | 729 | 7205 |
10″ |
M10 | 3/8″-16UNC |
282 | 151.5 | 326 | 2339 | 1053 | 10408 |
12″ |
M10 | 3/8″-16UNC |
332.9 | 176.95 | 377.5 | 3159 | 1422 | 14055 |
