Malleable iron 90°elbow BS EN

Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61

Size: DN6 – DN150

Max. Pressure: 2.5 Mpa / PN25

Design Standard: BS EN10242

Material Standard: BS EN1562

Threaded: BSPP (ISO228) / BSPT (ISO7-1)

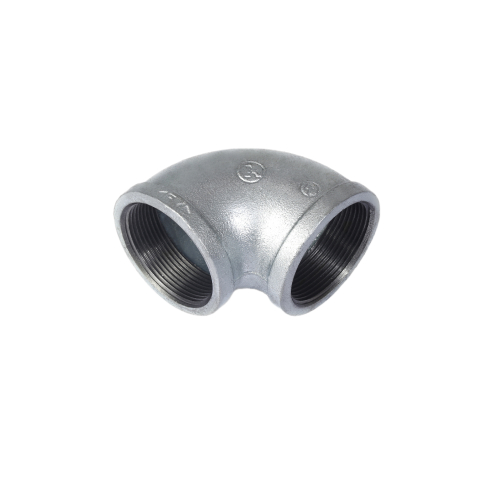

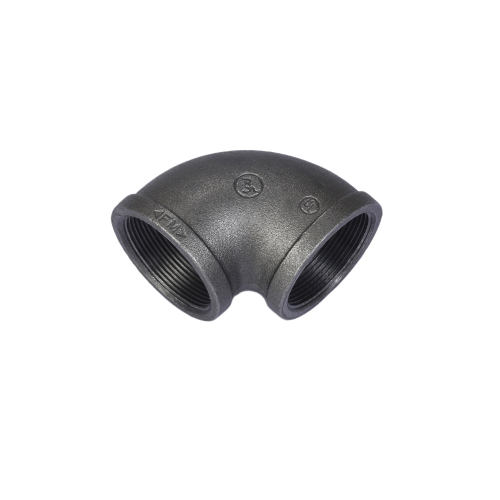

Surface: Black / Electrical galvanized / Hot-dip galvanized

Chat Now

Product details

Malleable iron 90°elbow is with two ends female threads and used to connect the pipes with male threads. It can change the pipeline direction by 90 degree.

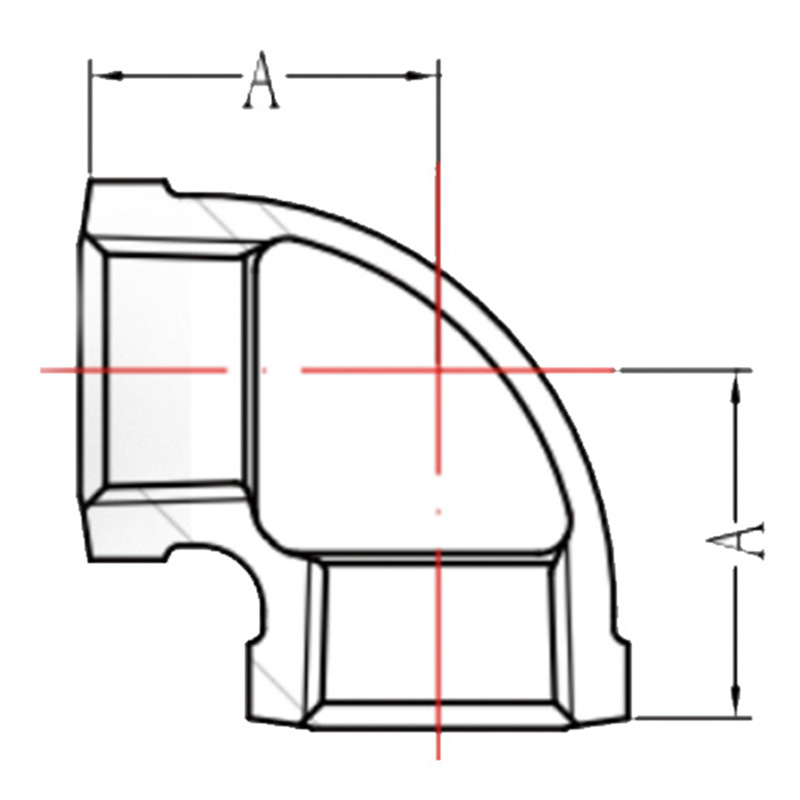

SIZE		A (MM)	PCS/CTN.
1/8″	DN6	18	600
1/4”	DN8	20	600
3/8”	DN10	24	500
1/2”	DN15	27	400
3/4”	DN20	32	210
1”	DN25	37	120
1 1/4”	DN32	44.5	64
1 1/2”	DN40	48.5	48
2”	DN50	57	32
2 1/2”	DN65	68.5	16
3”	DN80	77.5	10
4”	DN100	96.5	6
6”	DN150	129	2
