Features:
Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61
Size: DN6 – DN150
Pressure: 2.5 Mpa / PN25
Dimensions: DIN EN 10242
Material: Malleable iron DIN EN 1562
Threaded: BSPP (ISO228) / BSPT (ISO7-1)

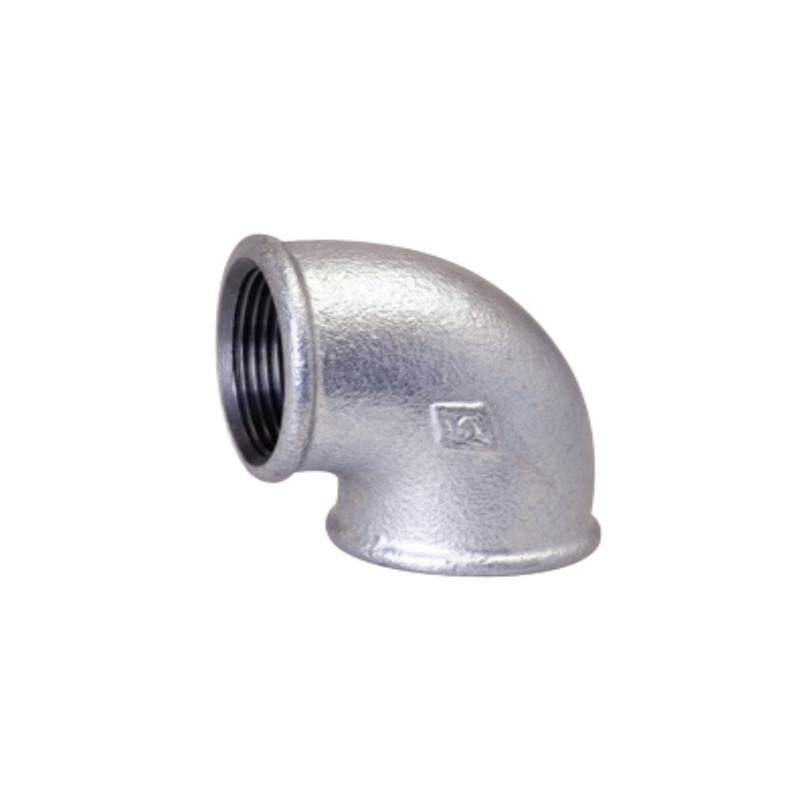

Surface: Black / Electrical galvanized / Hot-dip galvanized

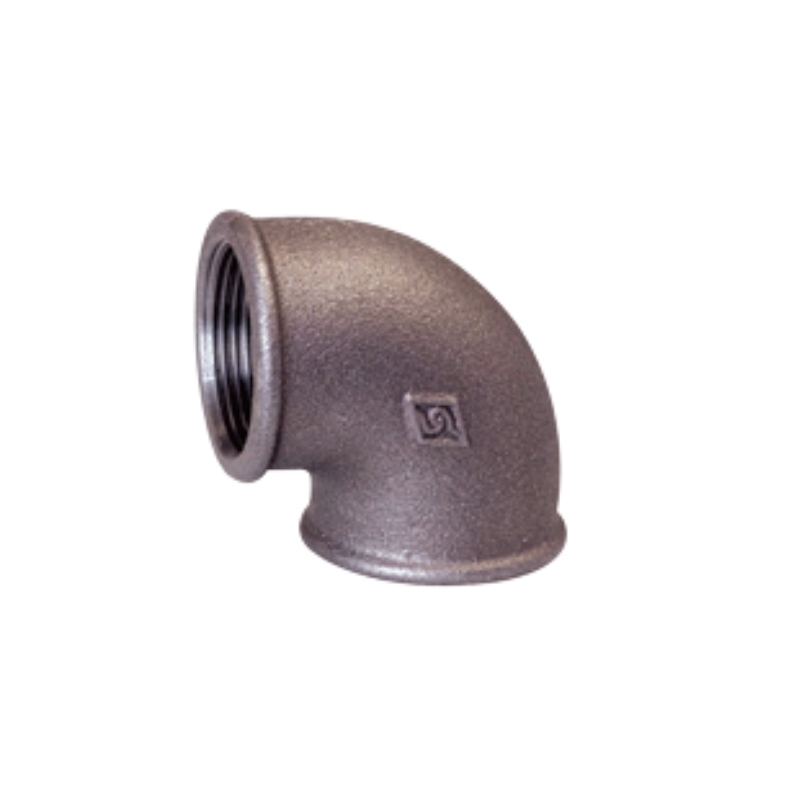

Malleable iron 90°elbow beaded is with two ends female threads and used to connect the pipes with male thread. It can change the pipeline direction by 90 degree.
| Size | Inch | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 |
| mm | 6 | 8 | 10 | 15 | 20 | 25 | 32 | |

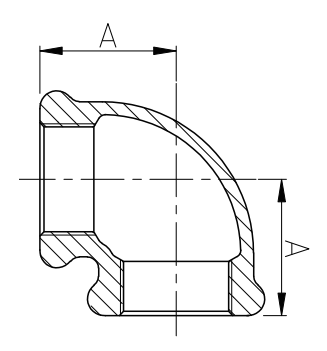

| Dim. (mm) |
A | 19 | 21 | 25 | 28 | 33 | 38 | 45 |
| Size | Inch | 11/2 | 2 | 21/2 | 3 | 4 | 5 | 6 |
| mm | 40 | 50 | 65 | 80 | 100 | 125 | 150 | |
| Dim. (mm) |
A | 50 | 58 | 69 | 78 | 96 | 115 | 131 |
Fluid tech group is the first company in northern China that specializes in the field of fire protection.
