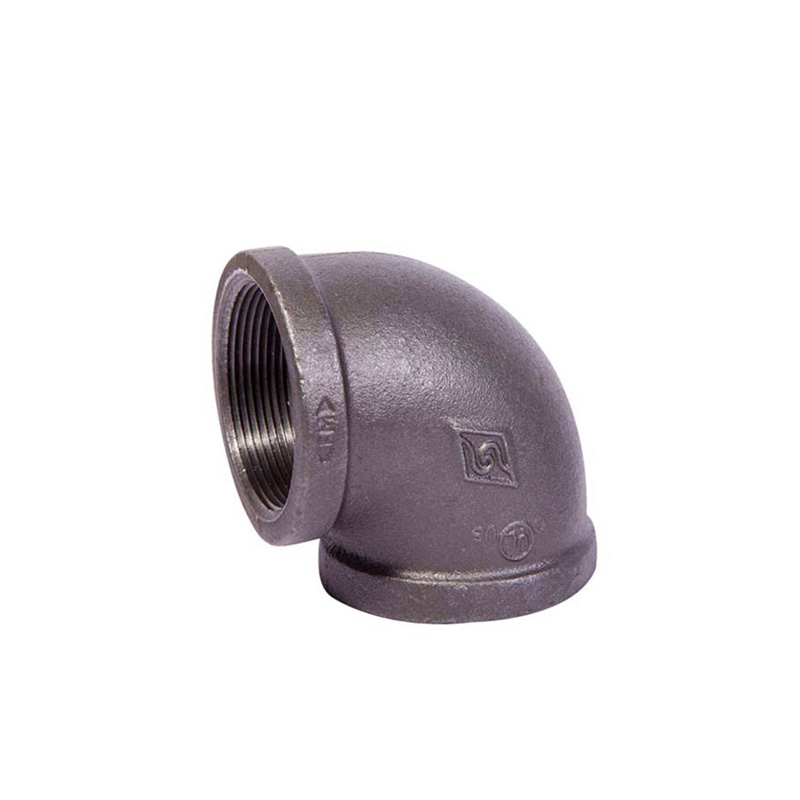

Malleable iron 90°elbow ASTM

Certificate: FM Approved / UL Listed

Size: 1/8” – 8” (DN 6 – DN 200)

Pressure: class150 / class300

Dimensions: ANSI B16.3

Material: Malleable iron ASTM A197

Threaded: NPT ASME B1.20.1

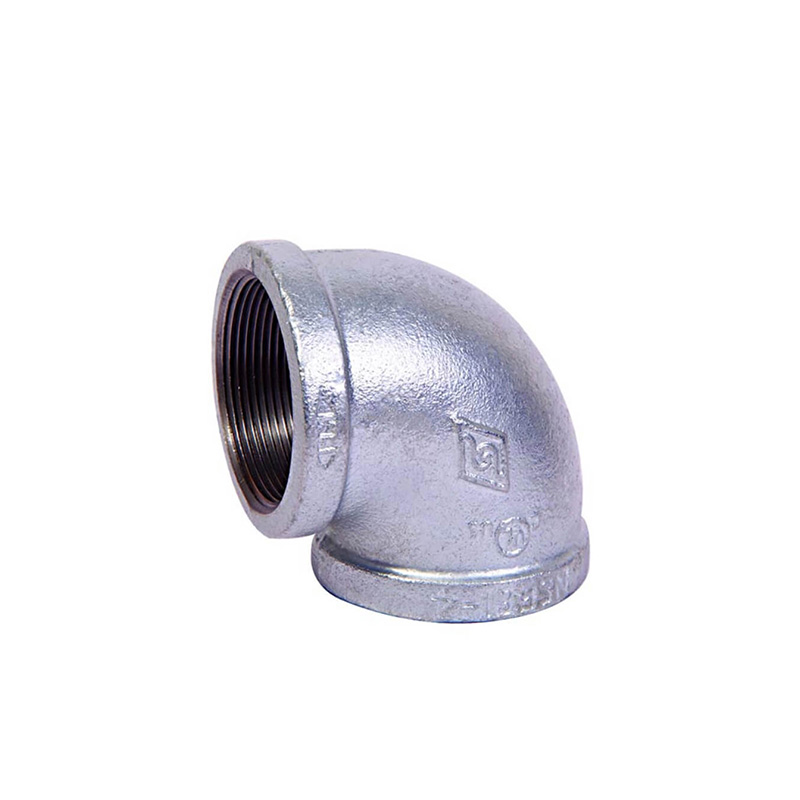

Surface: Black / Electrical galvanized / Hot-dip galvanized

Chat Now

Product details

Malleable iron 90°elbow is with two ends female threads and used to connect the pipes with male thread. It can change the pipeline direction by 90 degree.

Class 150 Type

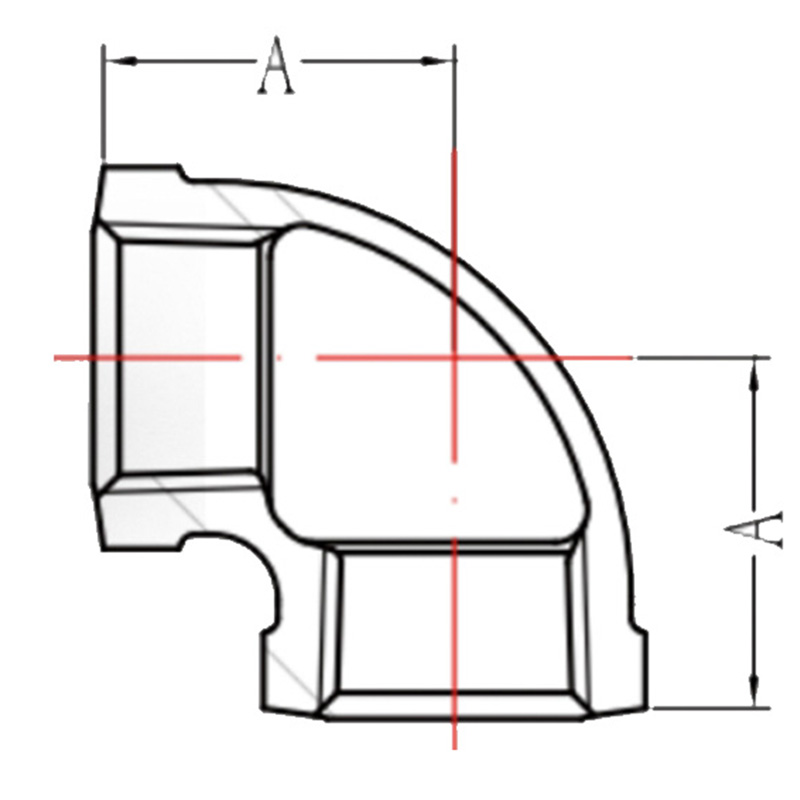

SIZE		A (MM)
1/8″	DN6	17.5
1/4”	DN8	20.6
3/8”	DN10	24.1
1/2”	DN15	28.5
3/4”	DN20	33.3
1”	DN25	38.1
1 1/4”	DN32	44.5
1 1/2”	DN40	49.3
2”	DN50	57.2
2 1/2”	DN65	68.6
3”	DN80	78.2
4”	DN100	96.3
5”	DN125	114.3
6”	DN150	130.3
8”	DN200	162

Class 300 Type

SIZE		A (MM)
1/4”	DN8	23.9
3/8”	DN10	26.9
1/2”	DN15	31.8
3/4”	DN20	35.6
1”	DN25	41.4
1 1/4”	DN32	49.3
1 1/2”	DN40	54.1
2”	DN50	63.5
2 1/2”	DN65	74.7
3”	DN80	85.9
4”	DN100	114
