Standard: EN 1171, ANSI B16.10
Type: Resilient NRS gate valve
Connection: Grooved ends
Body material: Ductile iron
Seat material: EPDM / NBR
Pressure class: PN10 / PN16 / Class 150
Temperature range: -20℃ ~ 120℃
Application: Fire protection, water supply, municipal pipelines

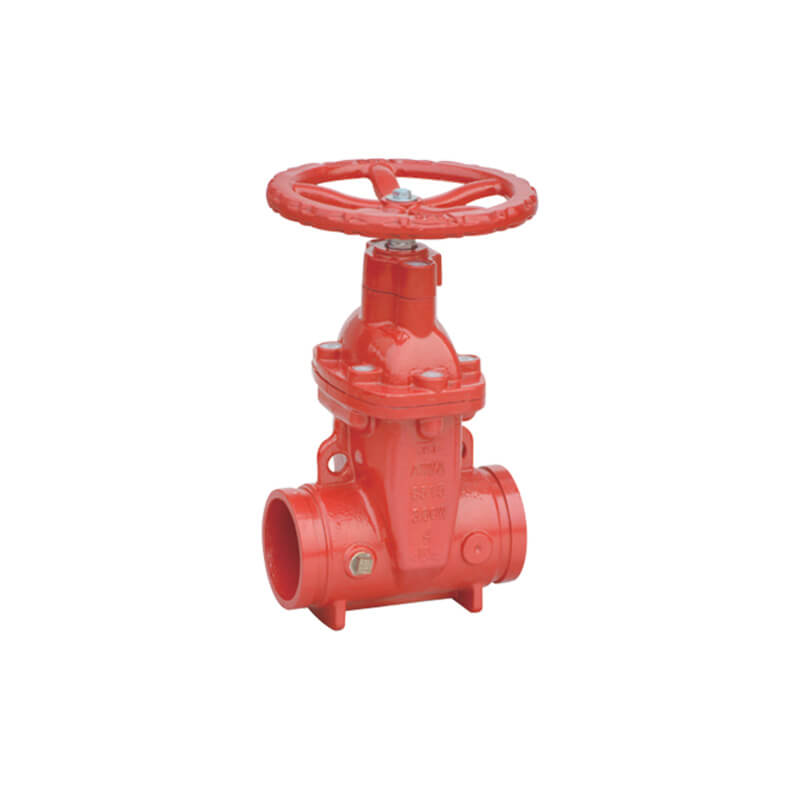

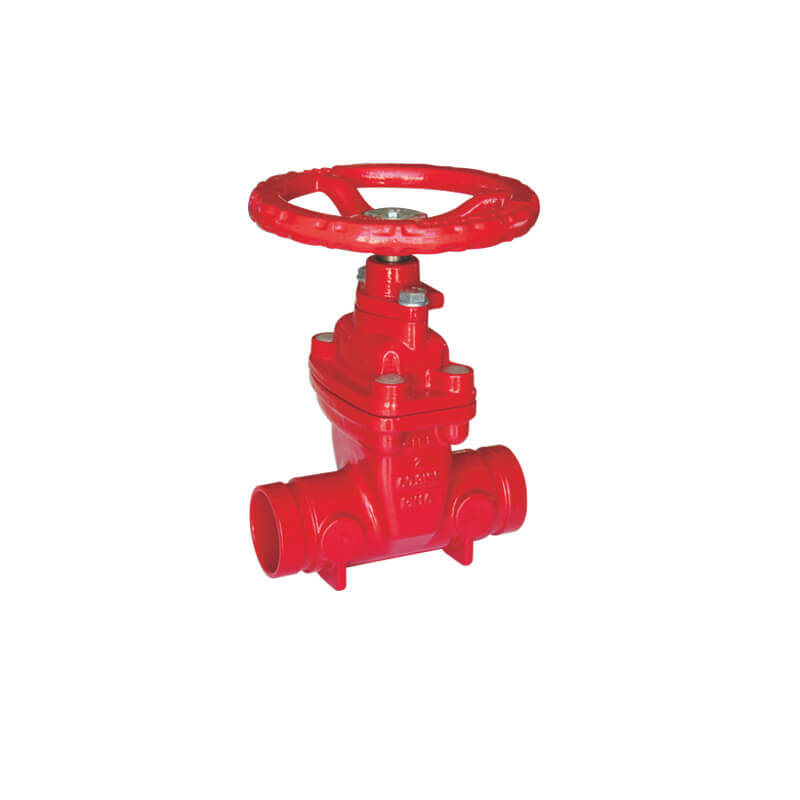

Resilient NRS gate valve grooved ends adopts full groove end design, which is suitable for quick connection and disassembly, and is particularly suitable for the fluid control needs of fire protection, industrial and municipal water supply systems.
This resilient NRS gate valve with grooved ends is mainly used for on-off control in fire protection, water supply, municipal and industrial pipeline systems. It features non-rising stem (NRS) structure, resilient rubber seat and grooved connection, with compact structure, quick installation, reliable sealing and long service life.

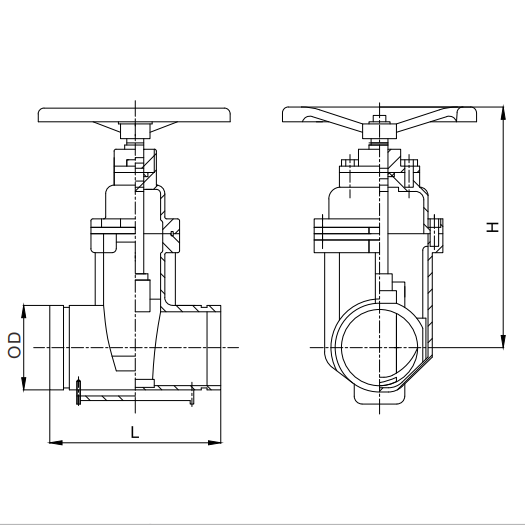

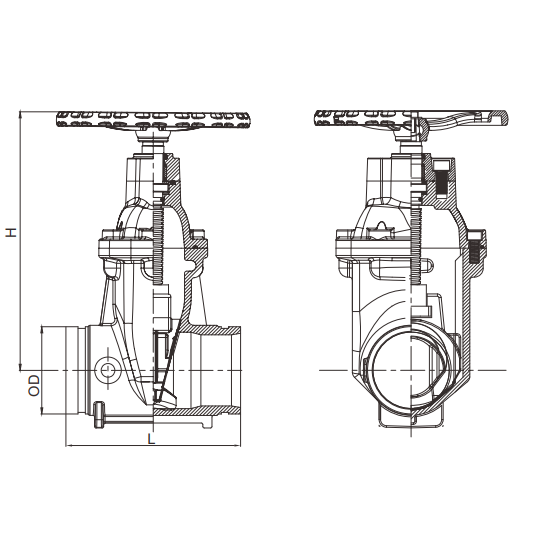

| Size | Working Pressure | ||
| Inch | DN | OD (mm) | |
| 2” | 50 | 60.3 | PN16 |
| 2-1/2” | 65 | 73.0/76.1 | |
| 3” | 80 | 88.9 | |
| 4” | 100 | 114.3 | |
| 5” | 125 | 139.7/141.3 | |
| 6” | 150 | 165.1/168.3 | |
| 8” | 200 | 219.1 | |
| 10” | 250 | 273 | |
| 12” | 300 | 323.8 | |
Resilient OS&Y gate valve grooved ends
Butterfly valve grooved type
Swing check valve grooved ends
Y-strainer grooved ends
Grooved pipe fittings and couplings
Full series pipeline valves and fittings
OEM is available. We can customize the product according to your specific requirements, including logo printing and packaging design.
The MOQ is 500 pieces. For customized products with special sizes or surface treatments, the MOQ may vary.
After order confirmation and receipt of the advance payment, we will arrange production. Generally, the products can be ready for shipment within 15-20 working days. Once dispatched, we will notify you and provide all necessary documents for customs clearance.
All products are 100% new and undergo strict quality inspections, including pressure testing and dimensional checks, before delivery. We use sturdy wooden crates or cartons to ensure the products are well-protected during transportation.
Yes, we provide detailed installation instructions in English and other major languages. Our technical support team is also available for online consultation and guidance if needed.
