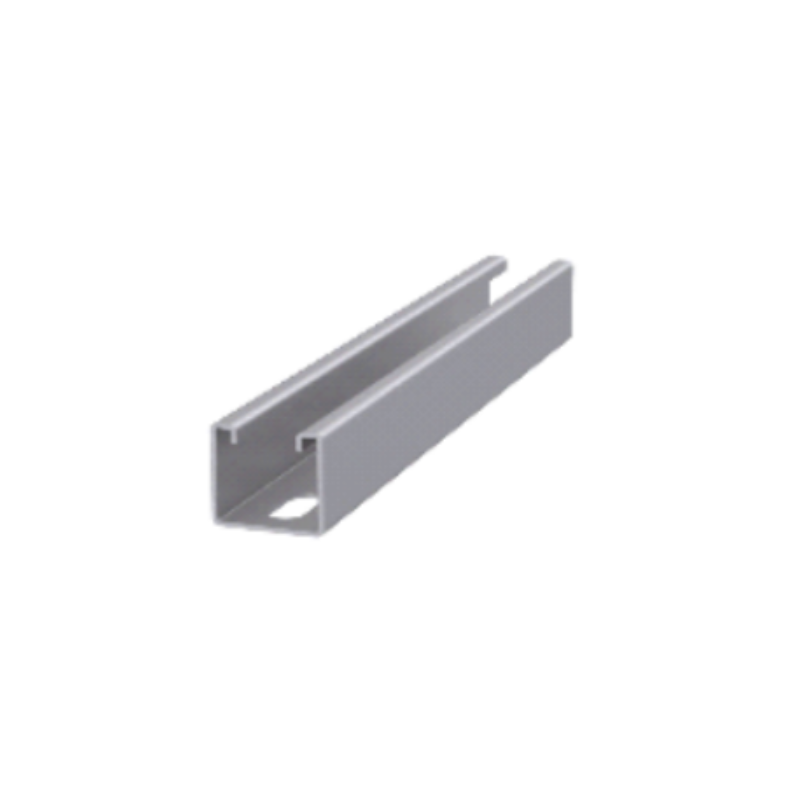

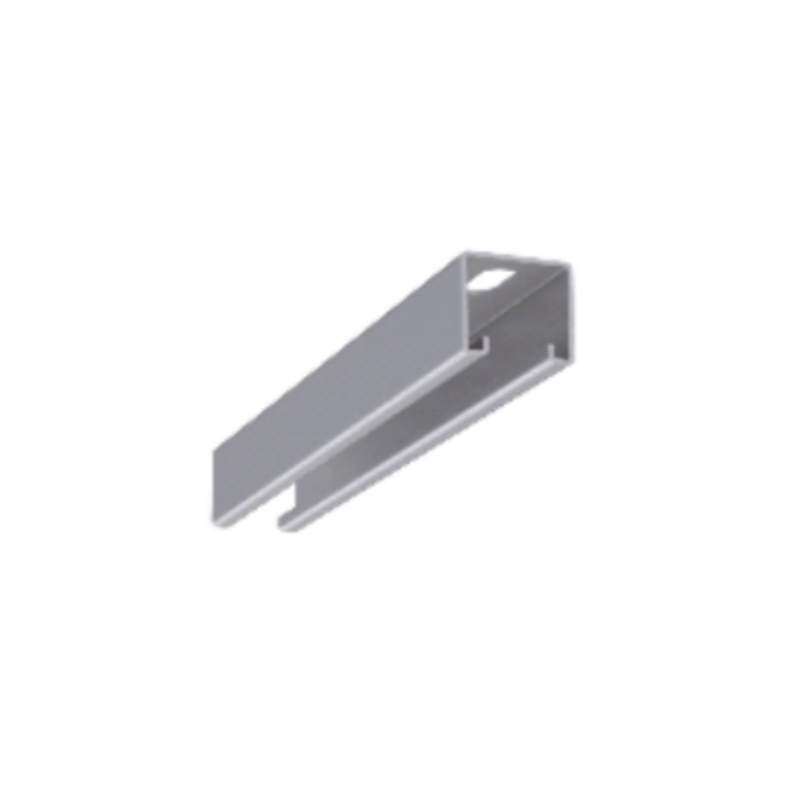

Single-side strut channel

Single-side strut channel

Features:

Molding: Channel steel is manufactured by a series of molding dies or rolls that gradually cold work the strip into the desired channel shape. This method produces a uniform size cross section on the external dimensions.

Function: Quickly with steel structure, concrete structure or other structure composition of various forms of support hanger system.

Material:Carbon steel

Finish:Electro-galvanized,Hot-Dip Galvanized

Ordering:Specify Item,Size,length,Finish.

Product details

Single-side strut channel is a support and installation component widely used in the fields of construction, mechanical and electrical installation.

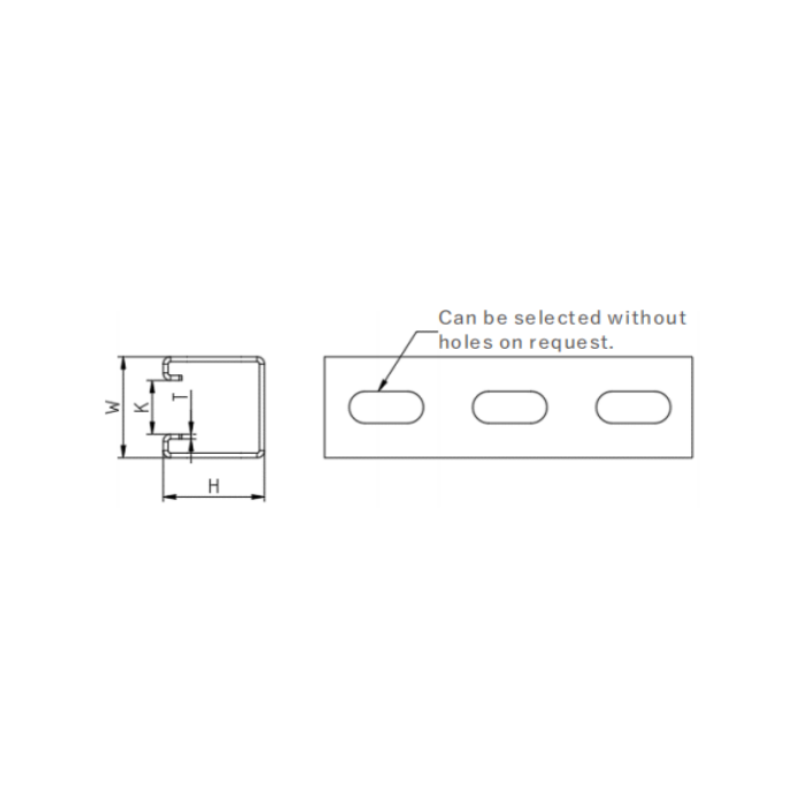

Size	H	W	K	T	L
Size	mm	mm	mm	mm	mm
21X2.0	21	41.3	22.3	2	6000
41X2.0	41	41.3	22.3	2	6000
41X2.5	41	41.3	22.3	2.5	6000
52X2.5	52	41.3	22.3	2.5	6000
62X2.5	62	41.3	22.3	2.5	6000
72X2.75	72	41.3	22.3	2.75	6000
21X2.0	21	41.3	22.3	2	6000
41X2.0	41	41.3	22.3	2	6000
41X2.5	41	41.3	22.3	2.5	6000
52X2.5	52	41.3	22.3	2.5	6000
62X2.5	62	41.3	22.3	2.5	6000
72X2.75	72	41.3	22.3	2.75	6000

Note: For more information, please contact us.

Related products

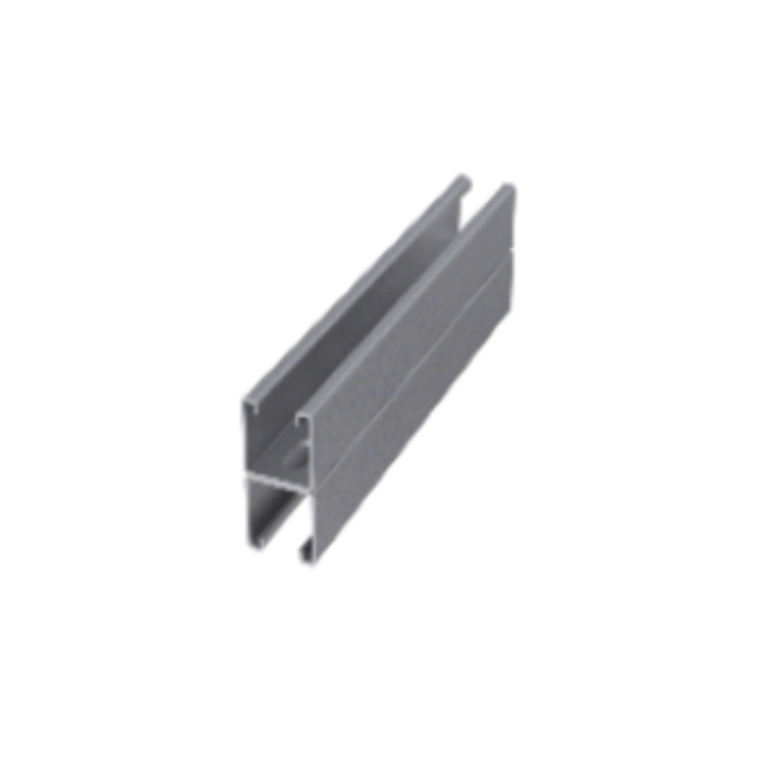

DOUBLE-SIDE STRUT CHANNEL
