Features:
Certificate: ISO
American Standard: ASME B16.11
Material: Carbon steel ASTM A 105 / Stainless steel
Type: Forged fitting
W.pressure: Class 3000 / 6000
Surface: Original / hot dip galvanized

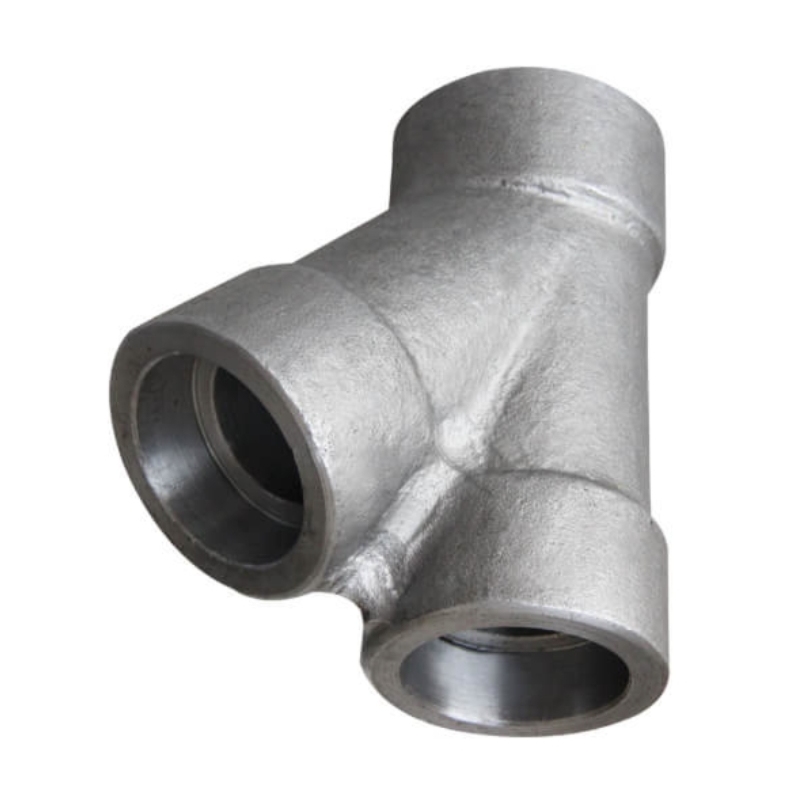

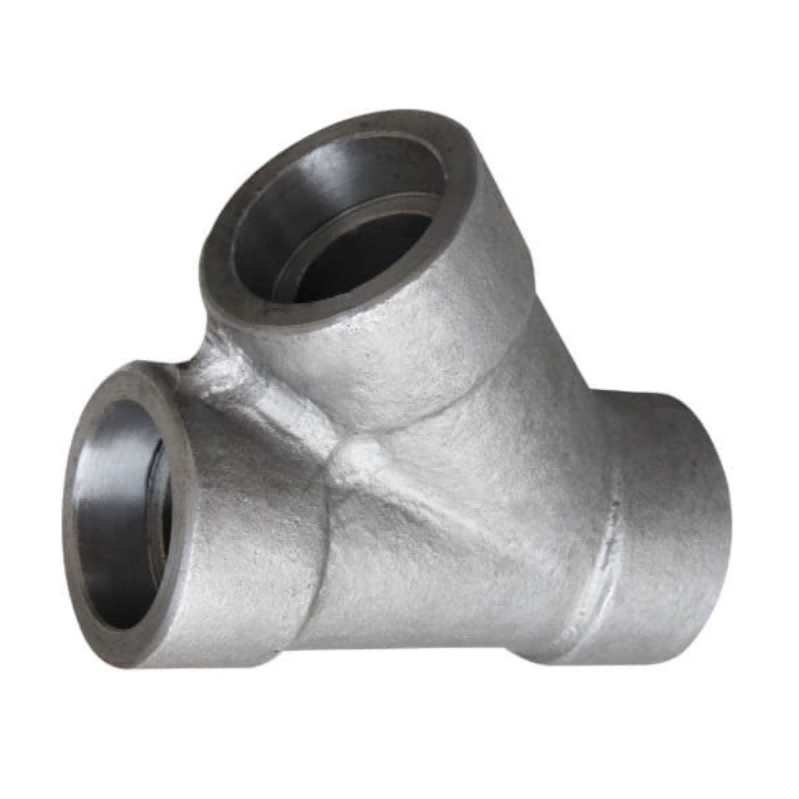

SW 45°Lateral is used to create a branch connection at a 45-degree angle from the main pipe by socket welding connection.

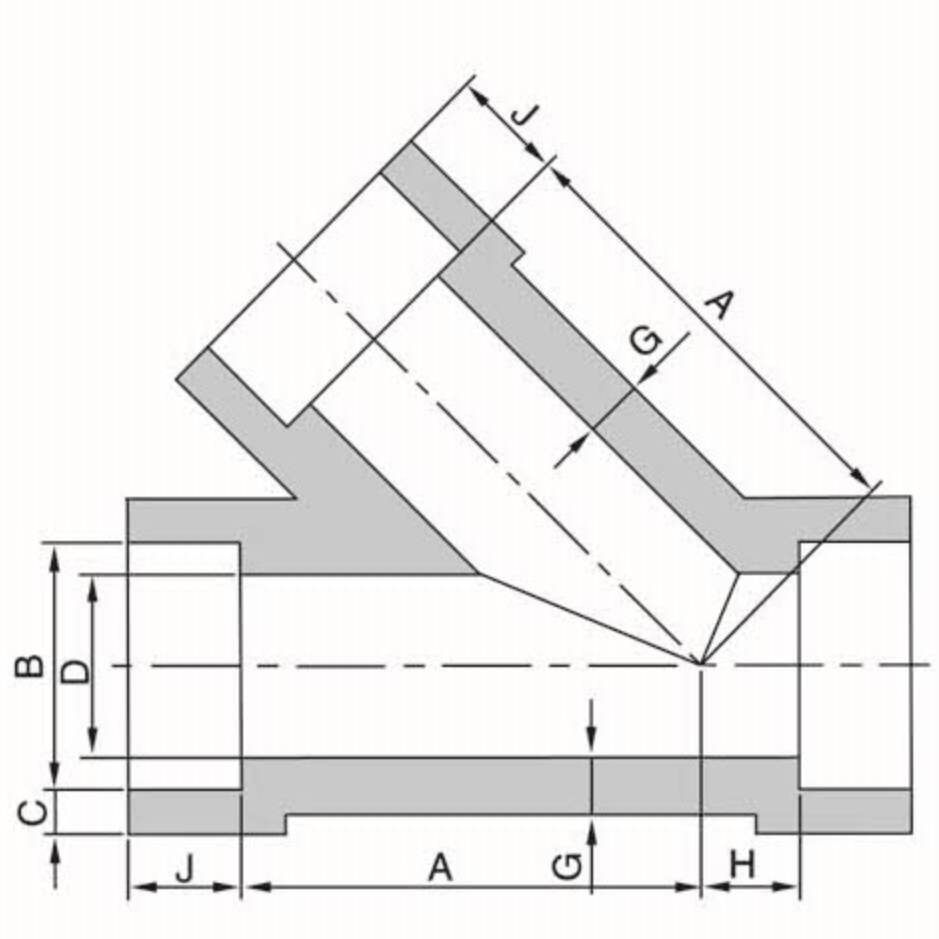

| SIZE | Socket Bore Dia.
B |
Bore Dia. Of fittings
D |
Socket Wall
C min |
Body Wall
G min |
Depth of socket
J min |
Center to Bottom of socket
|
|||||||
| A | H | ||||||||||||
| NPS | DN | 3000LB | 6000 LB | 3000 LB | 6000 LB | 3000 LB | 6000 LB | 3000 LB | 6000 LB | 3000 LB | 6000 LB | ||
| 3/8” | 10 | 17.7 | 11.8 | 8.4 | 3.50 | 4.37 | 3.20 | 4.01 | 9.5 | 37 | – | 9.5 | – |
| 1/2” | 15 | 21.9 | 15.0 | 11.0 | 4.09 | 5.18 | 3.73 | 4.78 | 9.5 | 41 | 51 | 9.5 | 11 |
| 3/4” | 20 | 27.3 | 20.2 | 14.8 | 4.27 | 6.04 | 3.91 | 5.56 | 12.5 | 51 | 60 | 11 | 13 |
| 1” | 25 | 34.0 | 25.9 | 19.9 | 4.98 | 6.93 | 4.55 | 6.35 | 12.5 | 60 | 71 | 13 | 16 |
| 1-1/4” | 32 | 42.8 | 34.3 | 28.7 | 5.28 | 6.93 | 4.85 | 6.35 | 12.5 | 71 | 81 | 16 | 17 |
| 1-1/2” | 40 | 48.9 | 40.1 | 33.2 | 5.54 | 7.80 | 5.08 | 7.14 | 12.5 | 81 | 98 | 17 | 21 |
| 2” | 50 | 61.2 | 51.7 | 42.1 | 6.04 | 9.50 | 5.54 | 8.74 | 16.0 | 98 | 151 | 21 | 30 |
| 2-1/2” | 65 | 73.9 | 61.2 | – | 7.62 | – | 7.01 | – | 16.0 | 151 | – | 30 | – |
| 3” | 80 | 89.9 | 76.4 | – | 8.30 | – | 7.62 | – | 16.0 | 184 | – | 57 | – |
| 4” | 100 | 115.5 | 100.7 | – | 9.35 | – | 8.56 | – | 16.0 | 201 | – | 66 | – |
