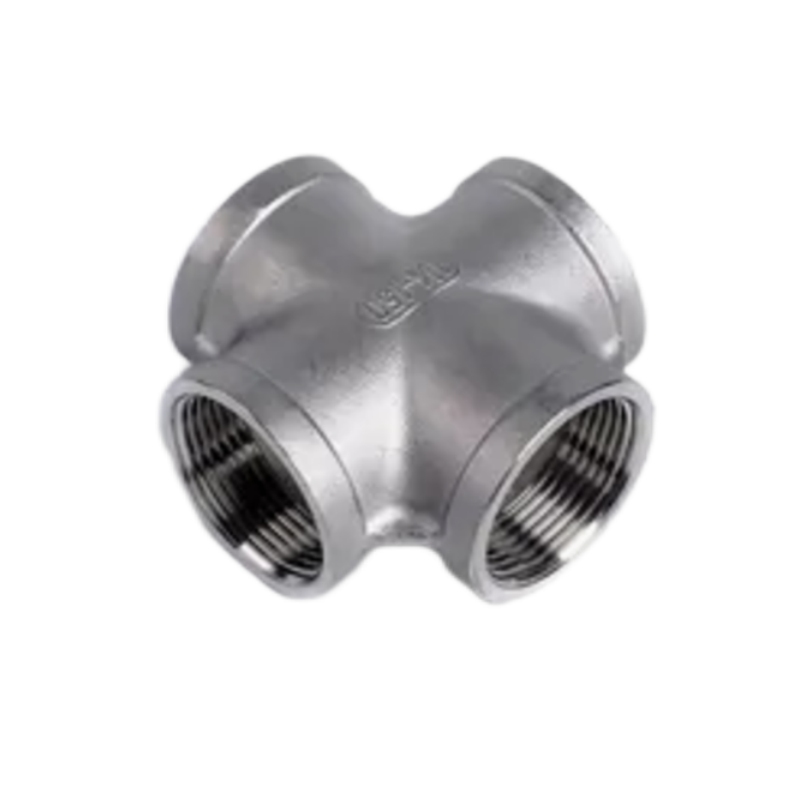

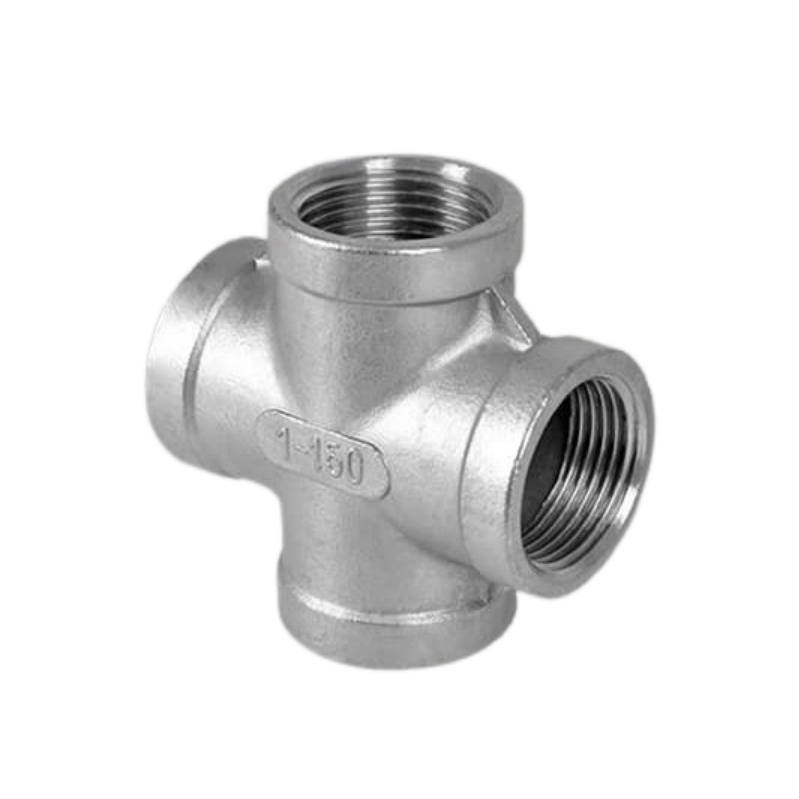

Stainless steel thread cross

Features:

Size: DN6-DN100 (1/8″-4″)

Pressure: CLASS 150 / CLASS300（10BAR-20BAR)

Dimensions: ISO 4144/SP114/DIN2986/EN10241/ASME A733

Material: ASTM351-CF8& CF8M,304 & 304L & 316 & 316L & 201

Threaded: ISO7-1/ISO228/DIN2999/BS21/ASME B1.20.1

Technology:Precision Investment Casting, Pipes SCH40 & SCH80

Chat Now

Product details

Stainless steel threaded cross are used where four pipes converge. Commonly used for water gas pipes, small diameter water pipes, compressed air pipes and low-pressure steam pipes. According to different materials, they are generally divided into SS304 Stainless Steel Threaded Cross, SS316 Stainless Steel Threaded Cross, SS304L/316L Stainless Steel Threaded Cross. Stainless steel threaded pipe fittings are manufactured strictly in accordance with SO4144 and SP114 standards or customer design dimensions. All pipe fittings are inspected by professional quality control personnel according to applicable standards and specifications.

Inch	DN	L	A	L1	t	C
1/8″	6	17.9	16	9	2.8	7
1/4″	8	19.4	20	10.5	3	7
3/8″	10	23.3	25	11	4.2	6.6
1/2 “	15	28.9	30	9.3	2.5	8
3/4″	20	32.5	35.2	12	3.3	9
1″	25	36.5	45.5	13.6	3.2	9
11/4″	32	43.5	53	15.8	3.5	11
11/2″	40	48.5	60.8	19.4	3.2	12
2″	50	56.5	74.3	20.2	3.5	12.6
21/2″	65	68.5	90.3	23	4.4	14.8
3″	80	78.7	106.7	25.8	4.74	14.9
4″	100	97	133.6	28.8	4	15.9
