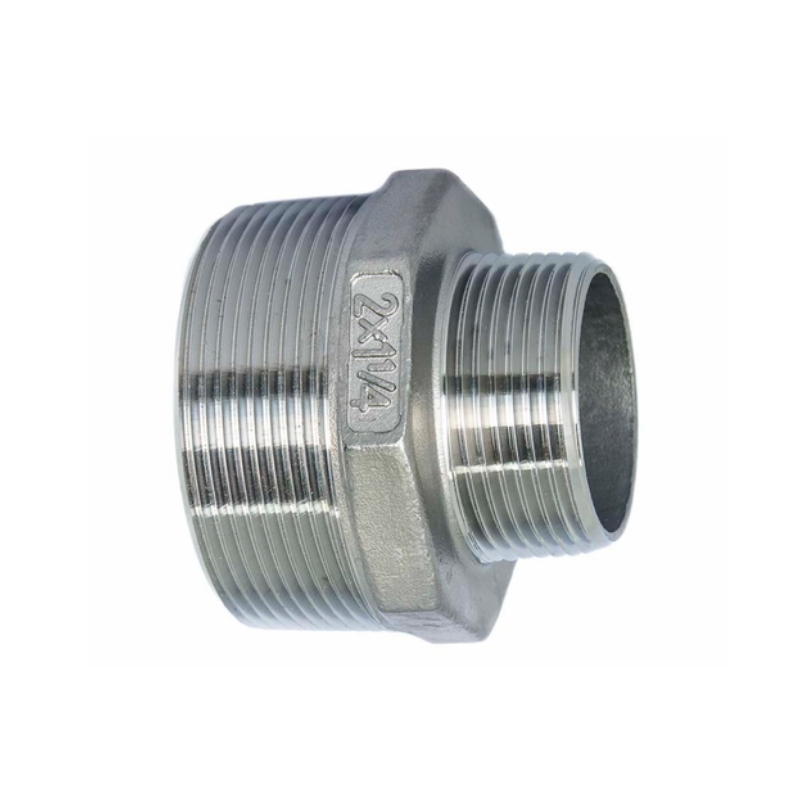

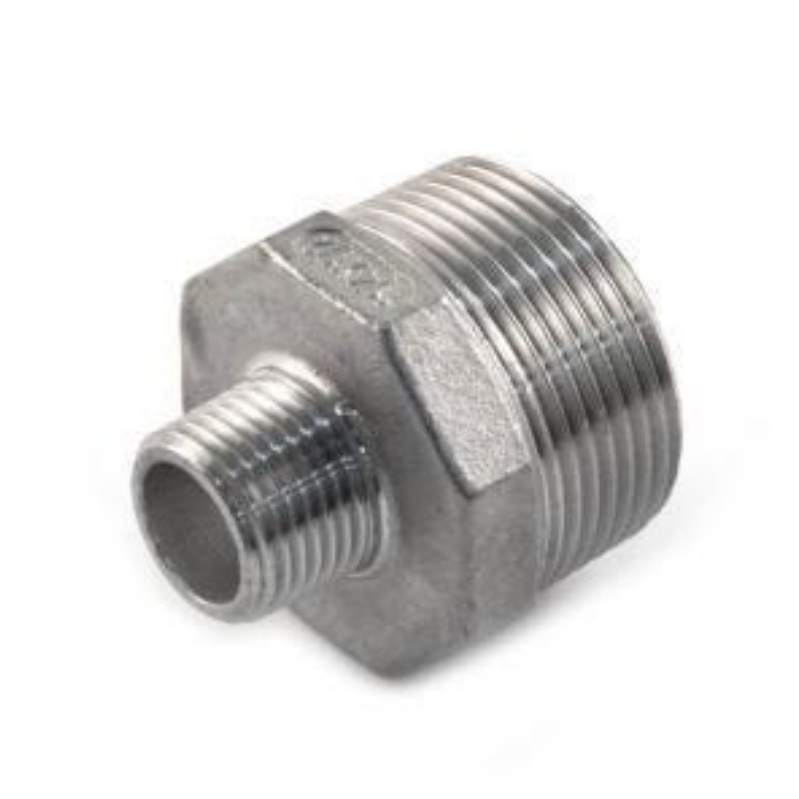

Stainless steel thread hexagon reducing nipple

Features:

Size: DN8×6 -DN100×80 (1/4″×1/8″-4″×3″)

Pressure: CLASS 150 / CLASS300（10BAR-20BAR)

Dimensions: ISO 4144/SP114/DIN2986/EN10241/ASME A733

Material: ASTM351-CF8& CF8M,304 & 304L & 316 & 316L & 201

Threaded: ISO7-1/ISO228/DIN2999/BS21/ASME B1.20.1

Technology:Precision Investment Casting, Pipes SCH40 & SCH80

Chat Now

Product details

Stainless steel threaded hexagon reducing nipple is a three-dimensional circular design with three-dimensional stripes engraved on the outer layer. Reducing Nipple connects two pipes of different sizes, changing the cross-sectional area and flow rate of the fluid. It is generally divided into SS304 Stainless Steel Threaded Hexagon Reducing Nipple, SS316 Stainless Steel Threaded Hexagon Reducing Nipple, SS304L/316L Stainless Steel Threaded Hexagon Reducing Nipple. Stainless steel threaded pipe fittings are manufactured strictly in accordance with SO4144 and SP114 standards or customer design dimensions. All pipe fittings are inspected by professional quality control personnel according to applicable standards and specifications.

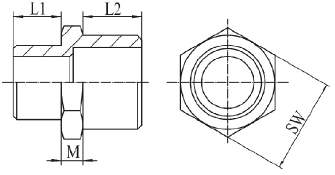

Inch	DN	L1	M	L2	SW
1/4″×1/8″	8×6	8	4	10.5	14.5
3/8″×1/8″	10×6	8	5	11	18
3/8″×1/4″	10×8	10.5	5	11	18
1/2″×1/8″	15×6	8	5	14.5	22
1/2″×1/4″	15×8	10.5	5	14.5	22
1/2″×3/8″	15×10	11	5	14.5	22
3/4″×1/4″	20×8	10.5	5.5	15.5	28
3/4″×3/8″	20×10	11	5.5	15.5	28
3/4″×1/2″	20×15	14.5	5.5	15.5	28
1″×1/4″	25×8	11	9	18	35
1″×3/8″	25×10	11	6	18	35
1″×1/2″	25×15	14.5	6	18	35
1″×3/4″	25×20	15.5	6	18	35
11/4″×1/2″	32×15	14.5	6.5	20.5	43.5
11/4″×3/4″	32×20	15.5	6.5	20.5	43.5
11/4″×1″	32×25	18	6.5	20.5	43.5
11/2″×3/8″	40×10	11	6.5	20.5	49
11/2″×1/2″	40×15	14.5	6.5	20.5	49
11/2″×3/4″	40×20	15	6.5	20.5	49
11/2″×1″	40×25	18	6.5	20.5	49
11/2″×11/4″	40×32	20.5	6.5	20.5	49
2″×1/2″	50×15	14	12	24	62
2″×3/4″	50×20	15.5	7	25	61.5
2″×1″	50×25	18	7	25	61.5
2″×11/4″	50×32	20.5	7	25	61.5
2″×11/2″	50×40	20.5	7	25	61.5
21/2″×1″	65×25	17.5	7	27	77
21/2″×11/4″	65×32	20.5	7	27	77
21/2″×11/2″	65×40	20.5	7	27	77
21/2″×2″	65×50	25	7	27	77
3″×11/4″	80×32	20	7.5	30	90.5
3″×11/2″	80×40	20.5	7.5	30	90.5
3″×2″	80×50	25	7.5	30	90.5
3″×21/2″	80×65	27	7.5	30	90.5
4″×11/2″	100×40	20	8	36	116
4″×2″	100×50	25	8	36	116
4″×21/2″	100×65	27	8	36	116.5
4″×3″	100×80	30	8	36	116.5
