Features:

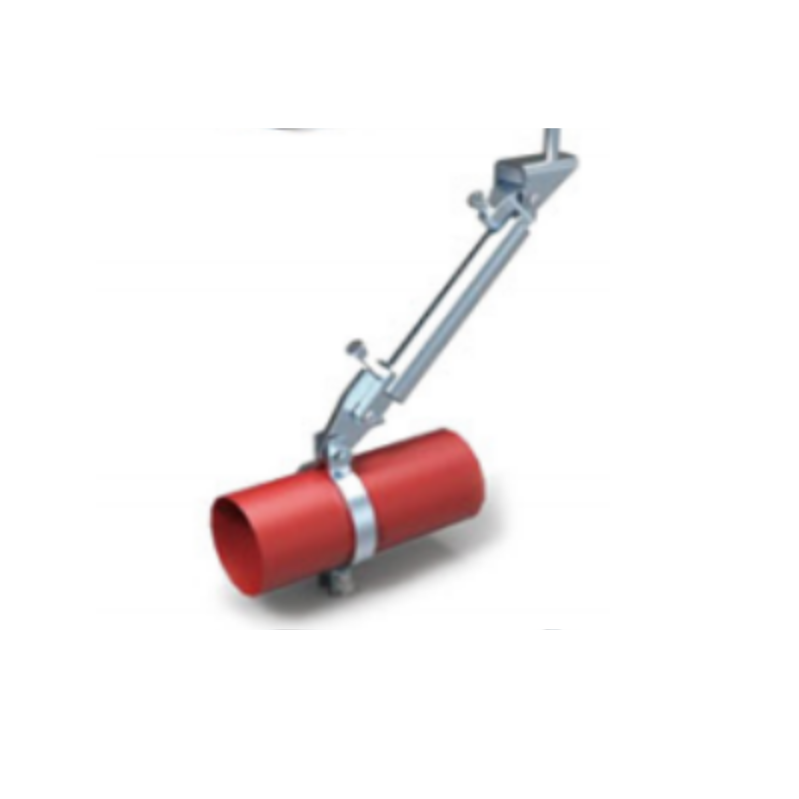

Function: Designed for bracing pipe against sway and seismic disturbance.The pipe attachment component of a sway brace system used in conjunction with a UTT Manufacturing structural attachment fitting.and joined together with a bracing pipe element forms a complete sway brace assembly.Sway brace assemblies are intended to be installed in accordance with NFPA13and the manufacturer’s installation instructions.
Type:Sprinkler Pipe Sch 10,Sch 40,GB/T3091,IS G3454
Size:One size fits braced pipe up to 8””with 1/2’bolt hole for structure.
Material:Carbon steel&Ductile iron OT450
Finish:Electro-galvanized

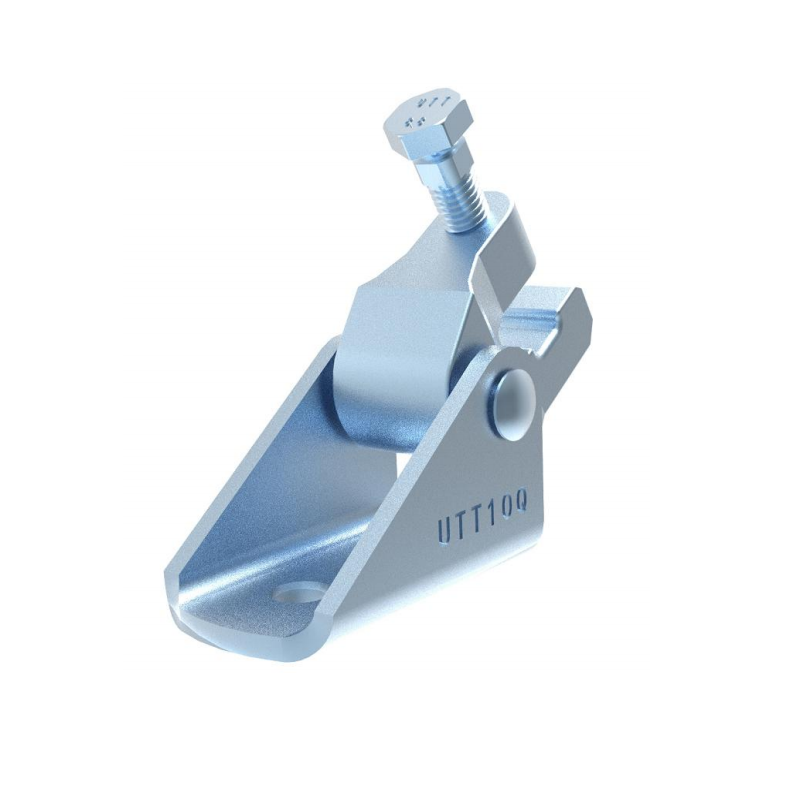

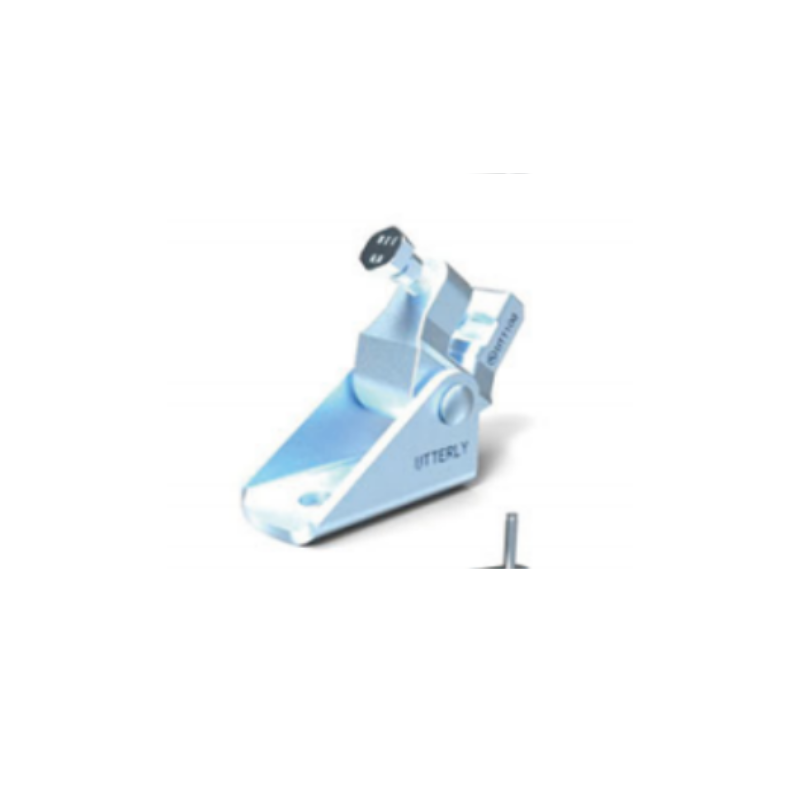

Structure attachment -UTT10Q is a key component used in the field of structural design and engineering, specifically used to connect different structural units or materials together safely and reliably.
| UL Maximum Design Load | ||||
| Brace Member |
lbs. | kN | Wt.Each | |
| lb. | kg | |||
| 1″ SCH40 pipe |
1885 | (8.38) | 1.82 | (0.83) |
Fluid tech group is the first company in northern China that specializes in the field of fire protection.
