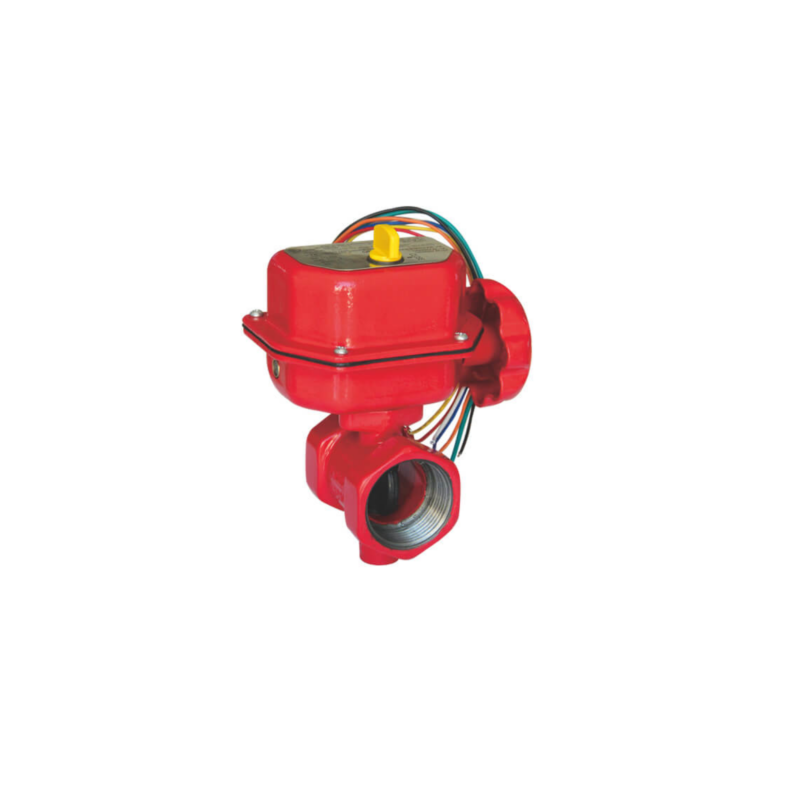

Threaded butterfly valve with tamper switch

Product Features (Specifications – Plain English List)

Standard: API 609, EN 593

Type: Threaded butterfly valve with tamper switch

Connection: Threaded ends (NPT/BSP)

Body material: Ductile iron

Disc material: Ductile iron / Stainless steel

Seat material: EPDM

Pressure class: PN10 / PN16

Temperature range: -20℃ ~ 120℃

Signal function: Tamper switch / Position feedback

Application: Small-diameter fire protection and monitoring systems

Chat Now

Product details

Threaded butterfly valve with tamper switch is a threaded butterfly valve equipped with a tamper-proof switch (Tamper Switch). It is suitable for regulating system flow and monitoring switch status, and is commonly used in industrial pipelines, fire protection systems, water supply projects and other scenarios. The threaded connection allows for quick installation and removal, and the tamper-proof switch enables remote monitoring of the valve status, enhancing system safety.

Product Overview

This threaded butterfly valve with tamper switch is mainly used in small-diameter fire protection and water supply pipeline systems. It adopts threaded connection for easy installation, equipped with tamper switch to realize valve position monitoring and signal feedback. It features compact structure, reliable sealing, sensitive action and long service life, widely used in building fire safety systems and small pipeline monitoring.

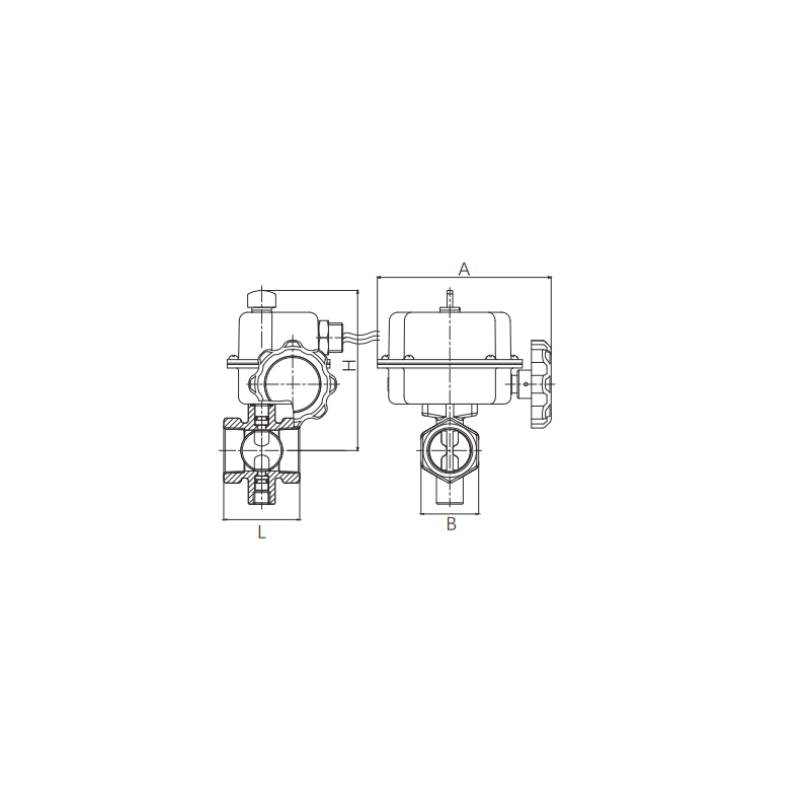

Specifications Table (Dimensions & Parameters)

Size			Working Pressure
Inch	DN	OD (mm)	Working Pressure
1”	25	33.7	PN10
1 1/4”	32	42.4	PN10
1 1/2”	40	48.3	PN10
2”	50	60.3	PN10

Product Applications

Small-diameter fire sprinkler and hydrant systems
Building fire safety monitoring and alarm systems
Residential and commercial building small pipelines
Industrial water supply and control pipelines
Mechanical equipment and unit pipeline control

Installation and Maintenance

Inspect valve body, threads and tamper switch before installation
Clean threaded ends and apply sealant properly
Tighten threads evenly to avoid overloading
Test valve opening, closing and signal feedback function
Avoid collision and damage to the tamper switch during use
Regularly check switch circuit, sealing and valve operation

Related Products

Grooved butterfly valve with tamper switch

Wafer butterfly valve with tamper switch

Lugged butterfly valve with tamper switch

Threaded gate valve with signal switch

Swing check valve threaded ends

Full series fire protection valves and fittings

FAQ

Can you supply OEM?

OEM is available. We can customize the product according to your specific requirements, including logo printing and packaging design.

What’s the MOQ?

The MOQ is 500 pieces. For customized products with special sizes or surface treatments, the MOQ may vary.

How about the order processing and lead time?

After order confirmation and receipt of the advance payment, we will arrange production. Generally, the products can be ready for shipment within 15-20 working days. Once dispatched, we will notify you and provide all necessary documents for customs clearance.

What quality will be ensured?

All products are 100% new and undergo strict quality inspections, including pressure testing and dimensional checks, before delivery. We use sturdy wooden crates or cartons to ensure the products are well-protected during transportation.

Can you guide the installation?

Yes, we provide detailed installation instructions in English and other major languages. Our technical support team is also available for online consultation and guidance if needed.
