Material ：Carbon steel ASTM A106
Threads ：ASME B1.20.1, ISO 7/1

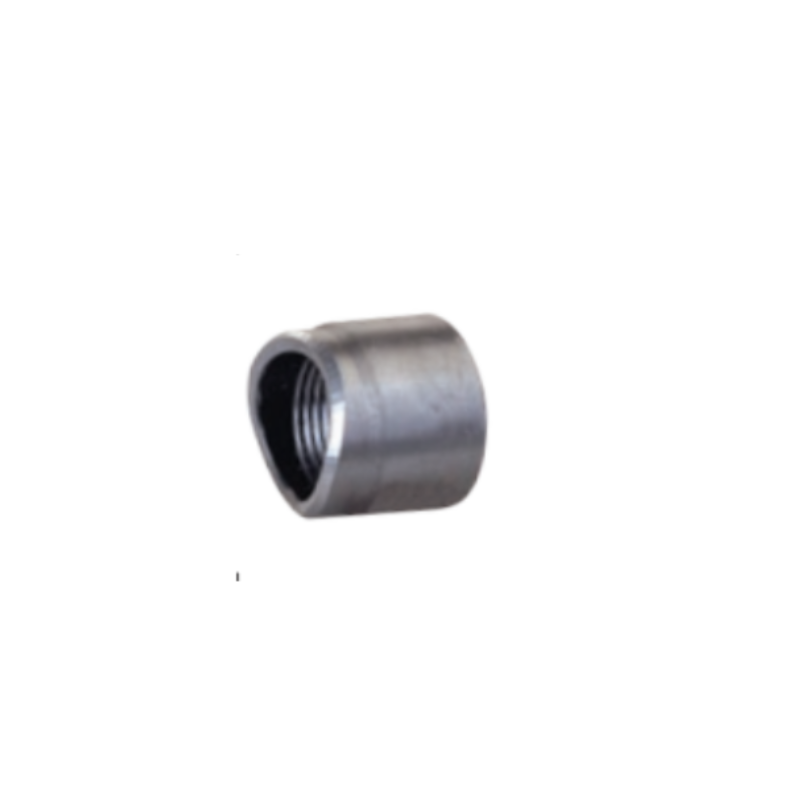

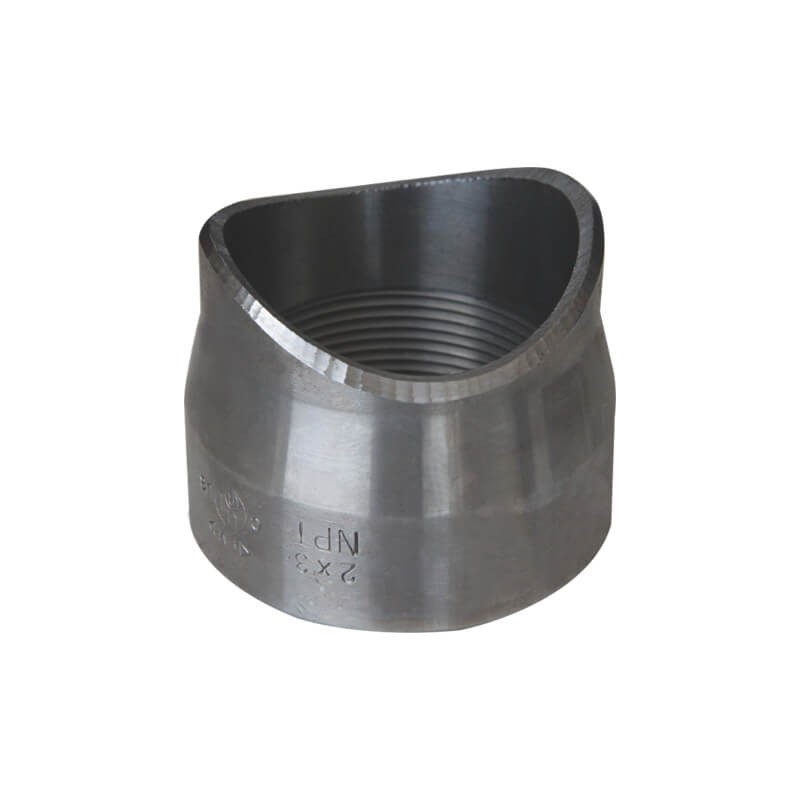

Threaded welded outlet is a high-quality pipe fitting designed for secure and efficient branching connections in piping systems. It is welded to the main pipeline and creat a branch with threading connection.
Threaded welded outlet is a forged carbon steel branch fitting, designed for tapping branch connections directly onto the main pipeline. It is welded onto the outer wall of the main pipe, with internal threaded outlet for quick connection of threaded nipples and fittings.
No need to cut off the main pipe, simple construction, firm welding and reliable sealing. High pressure resistant, compact structure, widely used in fire protection, water supply, HVAC and industrial pipeline branch tapping projects.
| Size | In | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | 2/21 | 3 | 4 |
| Pipe Run Size | In | 1 to 4 | 1to 4 | 11/4 to 6 | 11/2 to 6 | 2 to 6 | 3 to 6 | 3 to 8 | 4 to 8 | 6 to 8 |
| A | In | 1.083 | 1.331 | 1.555 | 1.87 | 2.165 | 2.724 | 3.209 | 3.957 | 4.961 |
| C | In | 1.063 | 1.126 | 1.248 | 1.374 | 1.626 | 1.752 | 2.217 | 2.5 | 3 |
Grooved Welded Outlet,
Barrel Nipple,
Tank Nipple,
Steel Socket,
Threaded Elbow
OEM is available. We can customize the product according to your specific requirements, including logo printing and packaging design.
The MOQ is 500 pieces. For customized products with special sizes or surface treatments, the MOQ may vary.
After order confirmation and receipt of the advance payment, we will arrange production. Generally, the products can be ready for shipment within 15-20 working days. Once dispatched, we will notify you and provide all necessary documents for customs clearance.
All products are 100% new and undergo strict quality inspections, including pressure testing and dimensional checks, before delivery. We use sturdy wooden crates or cartons to ensure the products are well-protected during transportation.
Yes, we provide detailed installation instructions in English and other major languages. Our technical support team is also available for online consultation and guidance if needed.
