Features:

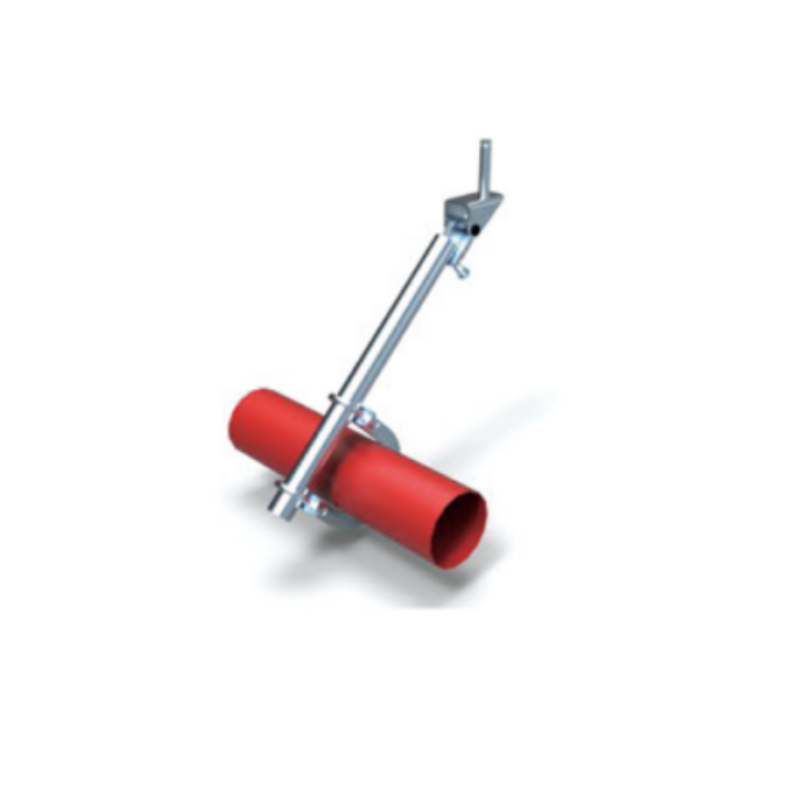

Function: Designed for bracing pipe against sway and seismic disturbance.The pipe attachment component of a sway brace system used in conjunction with a UTT Manufacturing structural attachment fitting.and joined together with a bracing pipe element forms a complete sway brace assembly.Sway brace assemblies are intended to be installed in accordance withNFPA13 and the manufacturer’s installation instructions.
Type:Sprinkler Pipe Sch 10,Sch 40,GB/T3091,IS G3454
Size:Pipe size 1½(40) thru 8”(200).
Material:Ductile iron QT450
Finish:Electro-galvanized

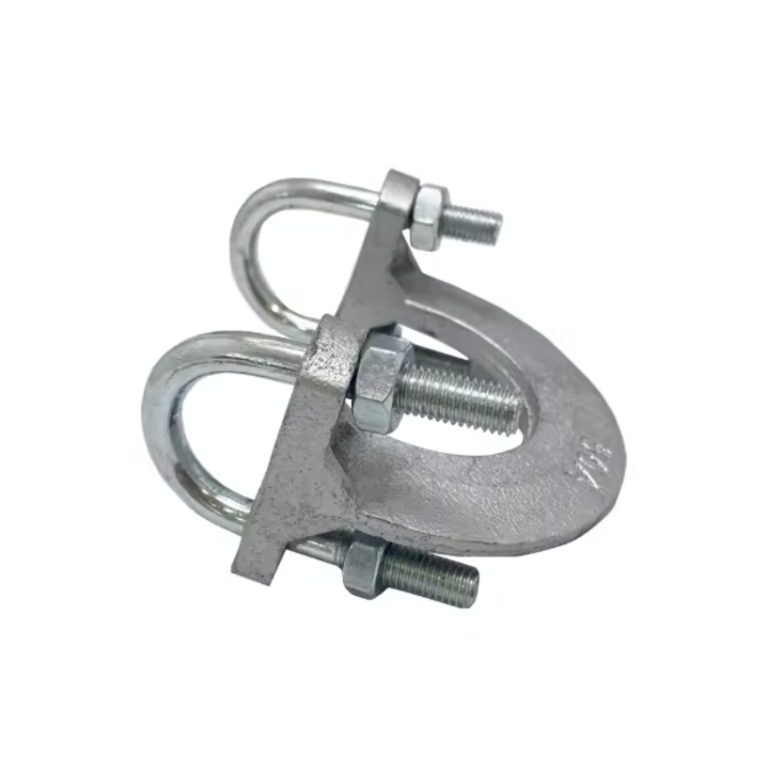

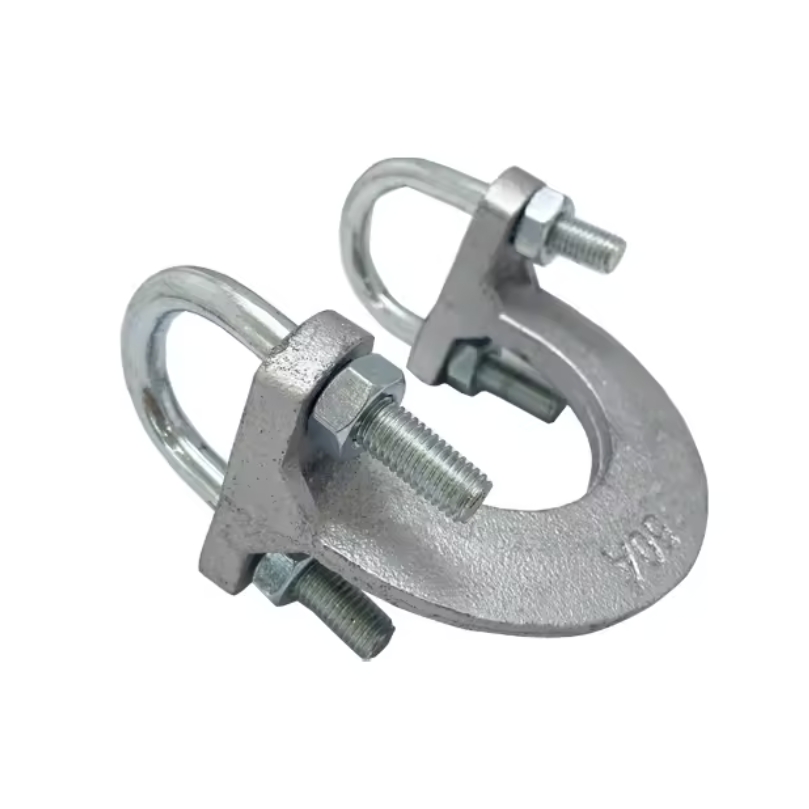

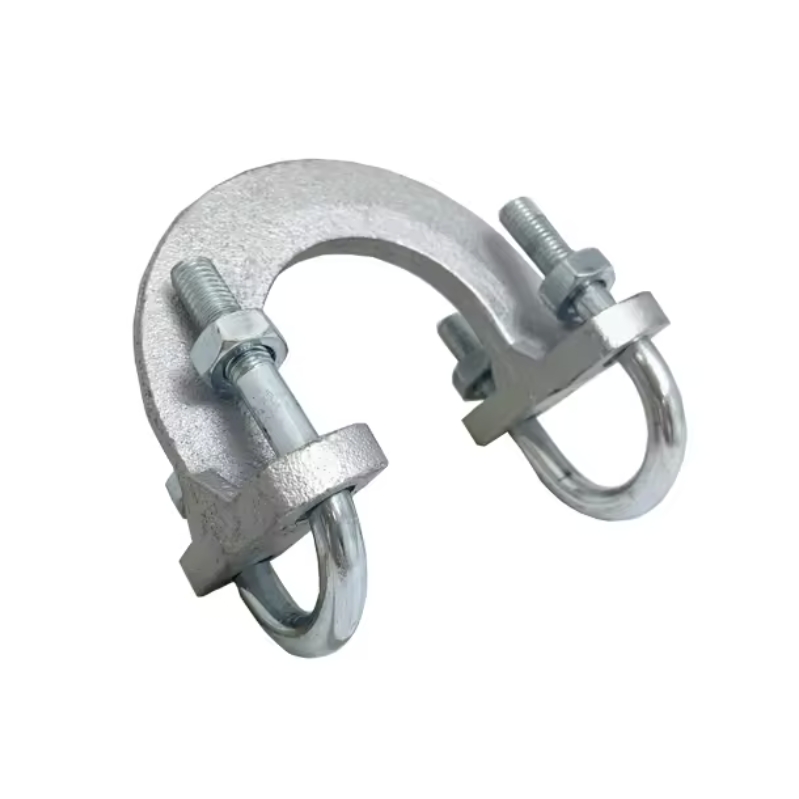

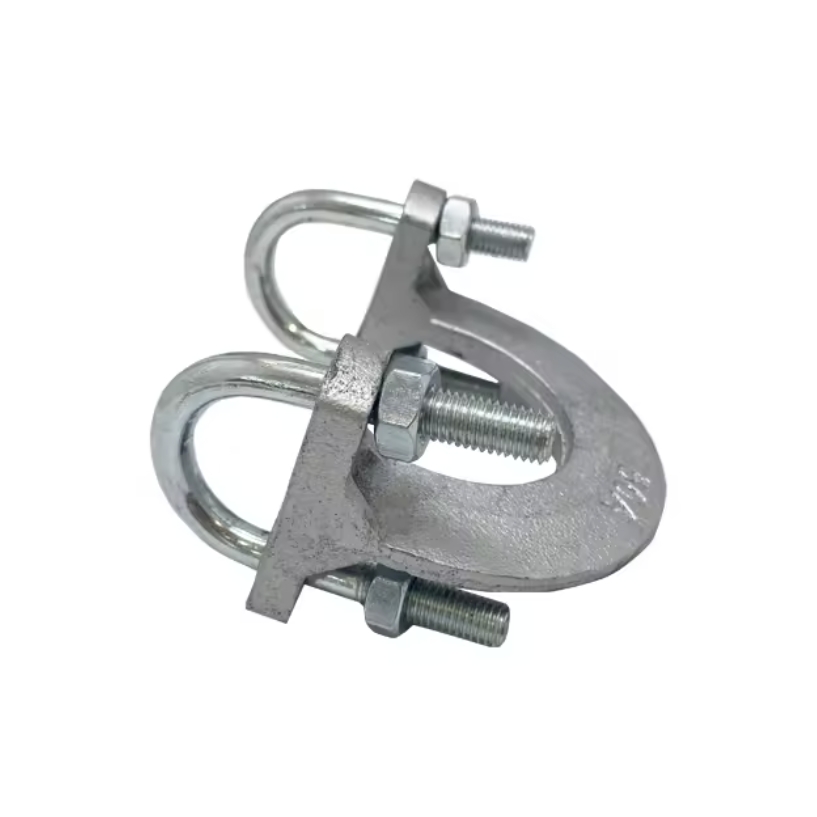

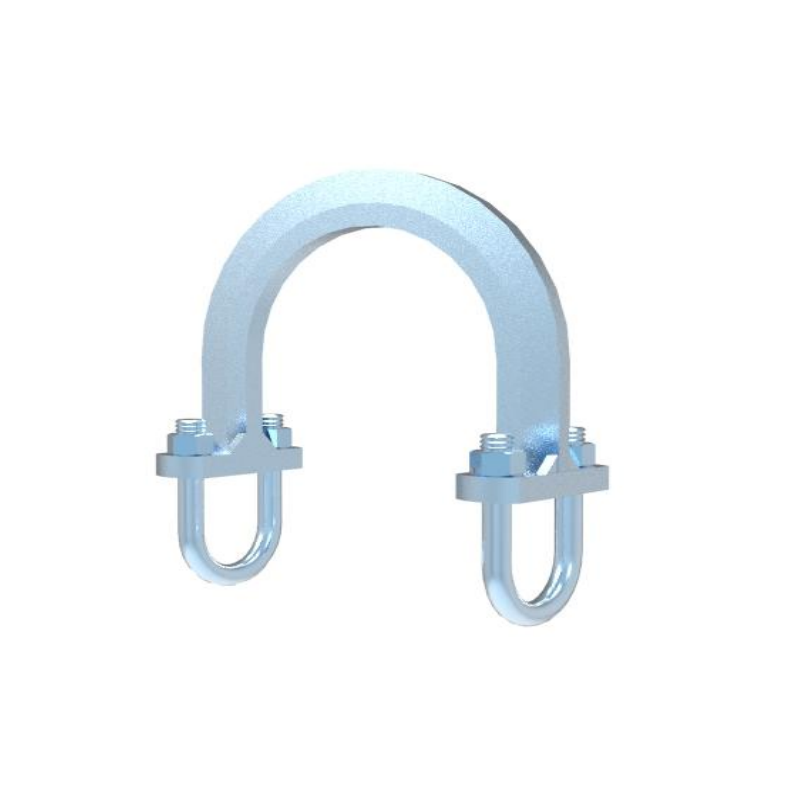

U lateral bracing clamp is a highly efficient fastening device designed for providing lateral support in construction and industrial applications.
| UL Maximum Design Load | |||||
| Pipe Size | lbs. | kN | Wt.Each | ||
| 1″(25mm)Brace Pipe | |||||
| lb. | kg | ||||
| 1 1/₂ | (40) | 680 | (3.02) | 1.23 | (0.56) |
| 2 | (50) | 680 | (3.02) | 1.36 | (0.62) |
| 2 1/₂ | (65) | 680 | (3.02) | 1.45 | (0.66) |
| 3 | (80) | 680 | (3.02) | 1.54 | (0.70) |
| 4 | (100) | 680 | (3.02) | 1.76 | (0.80) |
| 5 | (125) | 1090 | (4.84) | 2.16 | (0.98) |
| 6 | (150) | 1370 | (6.09) | 2.20 | (1.00) |
| 8 | (200) | 1370 | (6.09) | 2.79 | (1.27) |
