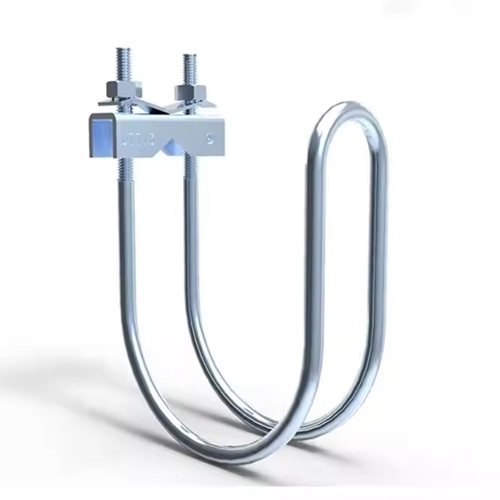

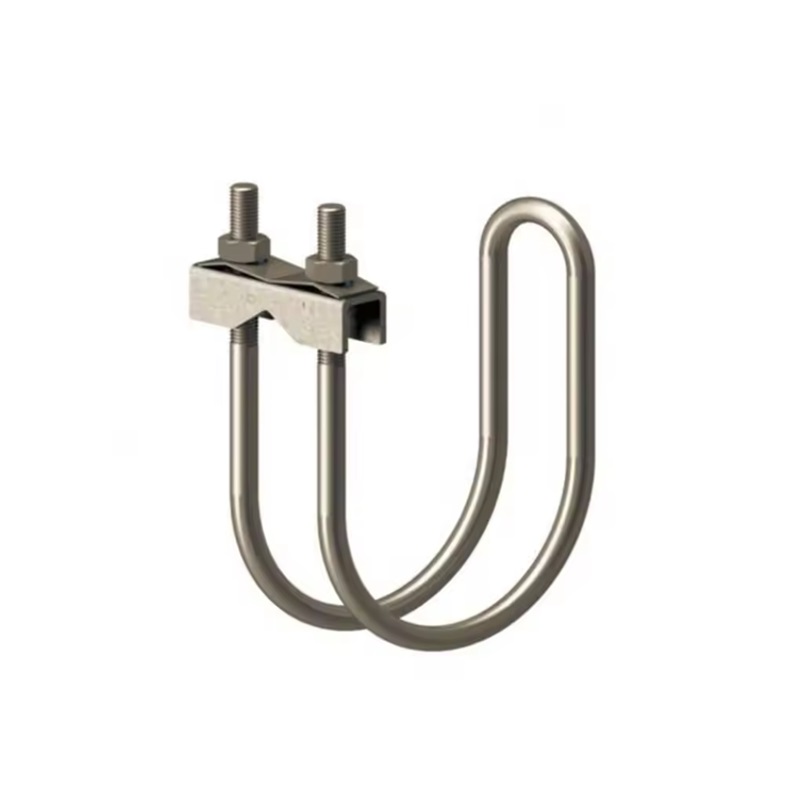

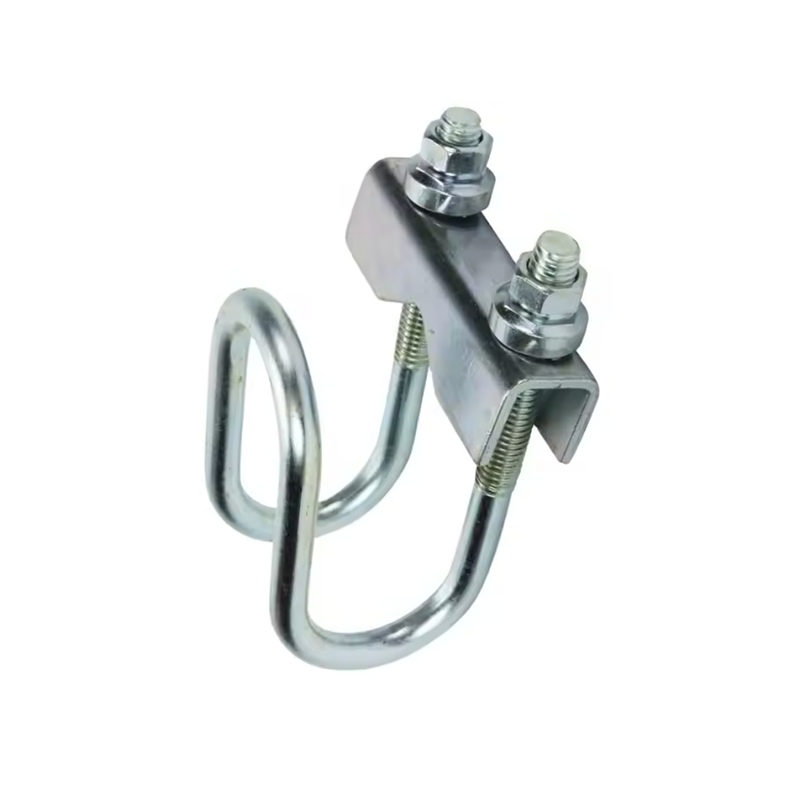

U quick lateral bracing clamp utt13

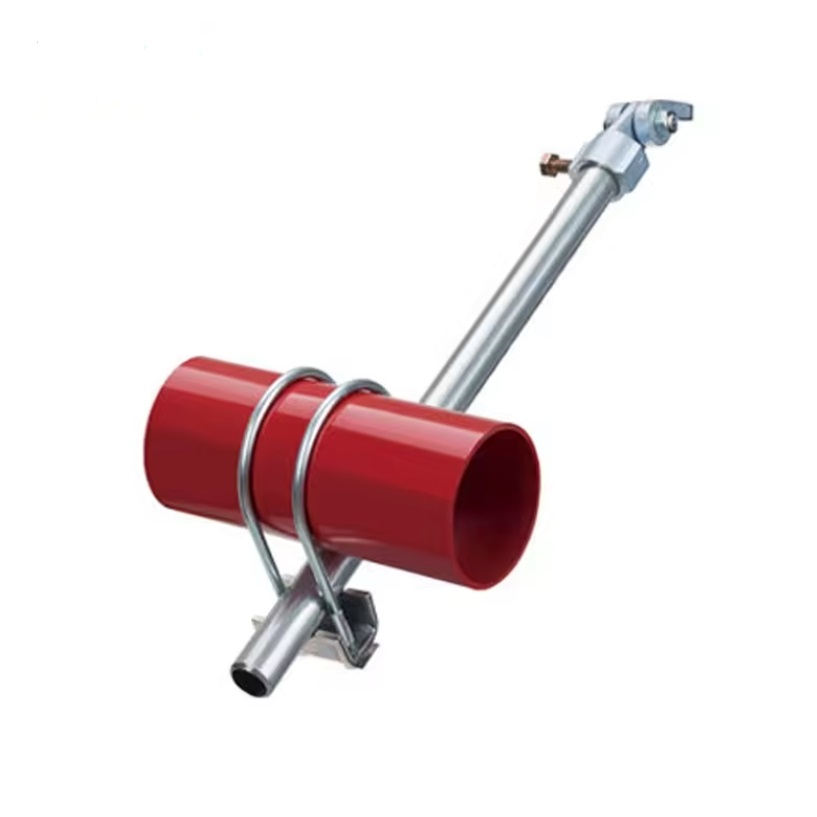

Function: Designed for bracing pipe against sway and seismic disturbance.The pipe attachment component of a sway brace system used in conjunction with a UTT Manufacturing structural attachment fitting.and joined together with a bracing pipe element forms a complete sway brace assembly.Sway brace assemblies are intended to be installed in accordance withNFPA13 and the manufacturer’s installation instructions.

Type:Sprinkler Pipe Sch 10,Sch 40,GB/T3091,IS G3454

Size:Pipe size 1(25) thru 8”(200).

Material:Carbon steel

Finish:Electro-galvanized

Chat Now

Product details

U quick lateral bracing clamp utt13 is an efficient and safe lateral support clamp designed for quick fixing needs in construction, industry and installation engineering.

UL Maximum Design Load
Pipe Size		lbs.	kN	Wt.Each
				1″(25mm)Brace Pipe
				lb.	kg
1	(25)	680	(3.02)	0.71	(0.35)
1’/₄	(32)	680	(3.02)	0.81	(0.37)
1’/2	(40)	680	(3.02)	0.86	(0.39)
2	(50)	680	(3.02)	0.92	(0.42)
2 1’/2	(65)	680	(3.02)	1.01	(0.46)
3	(80)	680	(3.02)	1.08	(0.49)
4	(100)	680	(3.02)	1.21	(0.55)
5	(125)	1090	(4.84)	1.37	(0.62)
6	(150)	1370	(6.09)	1.52	(0.69)
8	(219)	1370	(6.09)	1.81	(0.82)

FM Maximum Design Load
Pipe Size		Horizontal load ratings installation angle 30°-44°		Horizontal load ratings installation angle 45°-59°		Wt.Each
						1″(25mm) Brace Pipe
		lbs.	KN	lbs.	KN	lb.	kg
2	(50)	590	(2.62)	840	(3.73)	0.92	(0.42)
2/₂	(65)	710	(3.15)	1010	(4.49)	1.01	(0.46)
3	(80)	540	(2.40)	770	(3.42)	1.08	(0.49)
4	(100)	540	(2.40)	770	(3.42)	1.21	(0.55)
6	(150)	270	(1.20)	390	(1.73)	1.52	(0.69)
8	(200)	210	(0.93)	290	(1.28)	1.81	(0.82)
