Bracing structural for the sprinkler hose

Product Features (Specifications – Plain English List)

Material: High strength Carbon Steel
Surface Finish: Hot Dip Galvanized / Electro Galvanized
Function: Fixing, supporting and stabilizing sprinkler flexible hose
Compatible Hose: Braided & Unbraided sprinkler hose
Standard: Compliant with NFPA 13 & UL installation requirements
Installation: Easy bolt-on mounting, no welding required

Product details

Bracing structural for the sprinkler hose is used to assemble the flexible hose for sprinkler system.

Product Overview

Sprinkler hose bracing structural is a dedicated support fitting designed to fix and stabilize flexible sprinkler hoses. It effectively reduces hose vibration, avoids pipeline sway, and bears pipeline load to prevent displacement and sagging during water supply.

Made of high-strength carbon steel with galvanized anti-corrosion treatment, it features rigid structure, stable bearing capacity and durable performance. Designed for quick installation, perfectly matching braided & unbraided sprinkler flexible hoses, compliant with fire protection codes, widely used in ceiling concealed and exposed sprinkler systems.

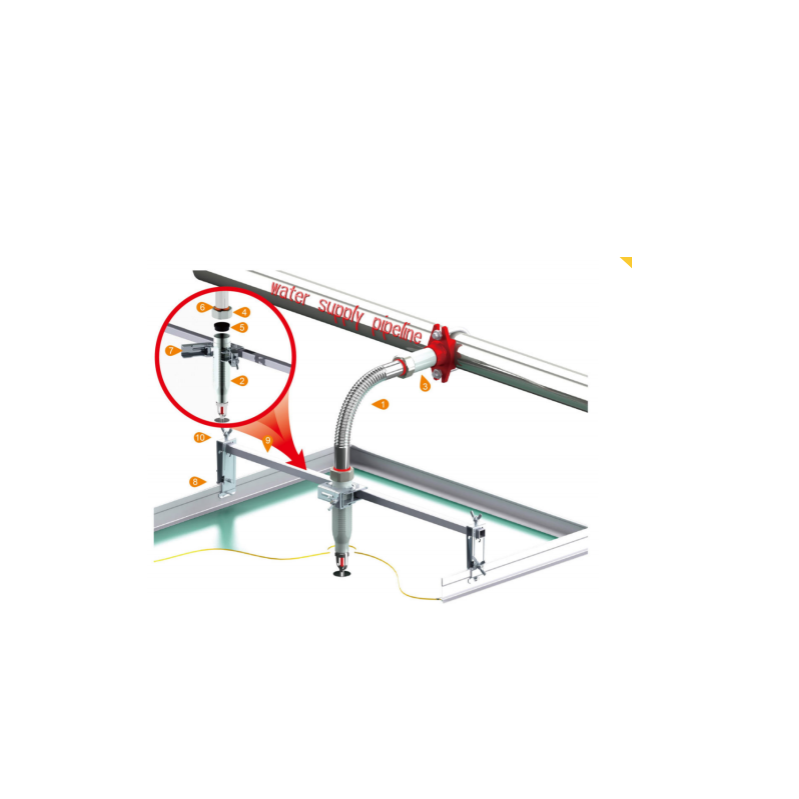

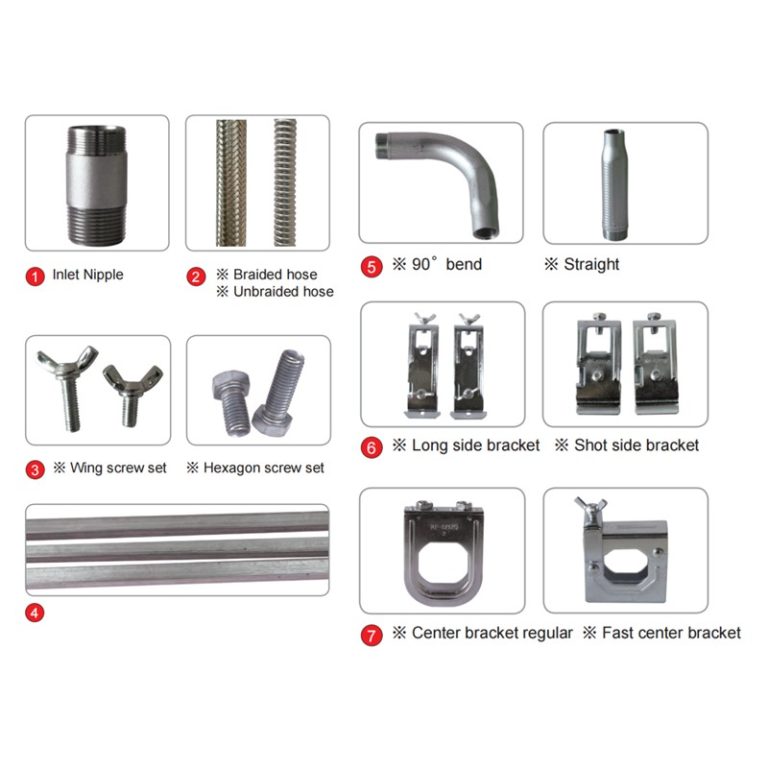

Specifications Table (Dimensions & Parameters)

Refer	Description	Material	Numbers of	Refer	Description	Material	Numbers of
No.	Description	Material	each standard set	No	Description	Material	each standard set
1	Corrugated tube	AISI 304 Stainless steel	1	6	Isolation ring	Nylon 66	2
1	Braid &collar-rings*	AISI 304 Stainless steel	1	7	Center bracket	Galv.steel ASTM A283 Gr.D	1
2	Discharge nipple(elbow)	Galv.Steel ASTM 1020	1	8	Side bracket	Galv.steel ASTM A283 Gr.D	2
3	Inlet nipple	Galv.Steel ASTM 1020	1	9	Square bar	Galv.steel ASTM A283 Gr.B	1
4	Hexagon slip nut	Galv.Steel ASTM 1020	2	10	Bolts &screwS	Galv.steel ASTM A283 Gr.D	1 set
5	Gasket	EPDM	2

Product Applications

Ceiling concealed sprinkler flexible hose installation
Commercial buildings, malls, hotels, office fire systems
Warehouse, industrial plant fire sprinkler projects
All piping sections needing hose support and anti-sway bracing

Installation and Maintenance

Mount the bracing structural firmly on ceiling joist or steel structure
Clamp and position the sprinkler hose to avoid extra tension
Keep hose natural bending without forced extrusion
Regularly check tightness, deformation and corrosion
