Standard: UL/FM, GB standards

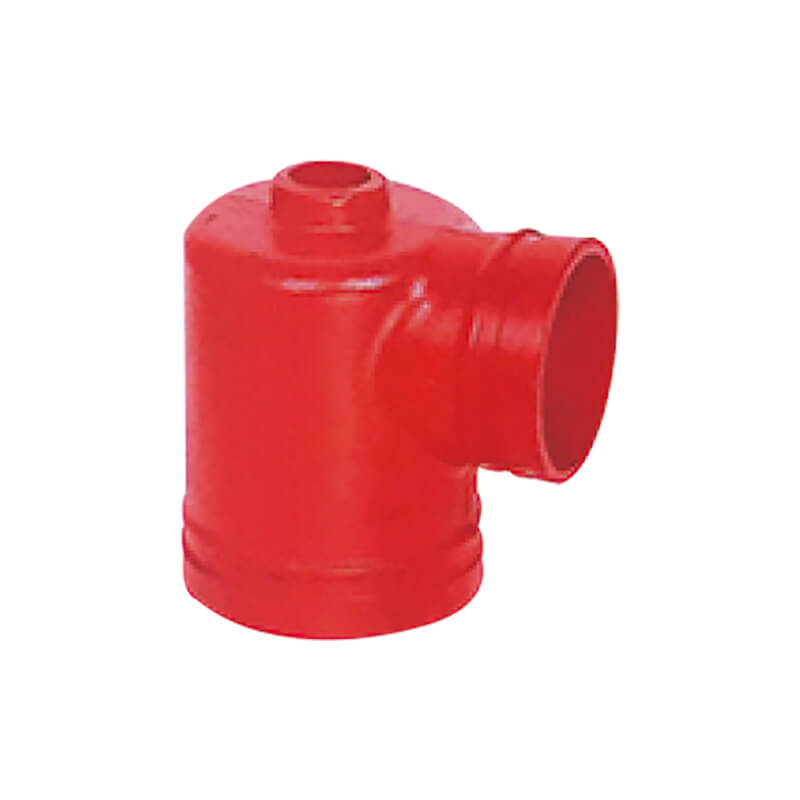

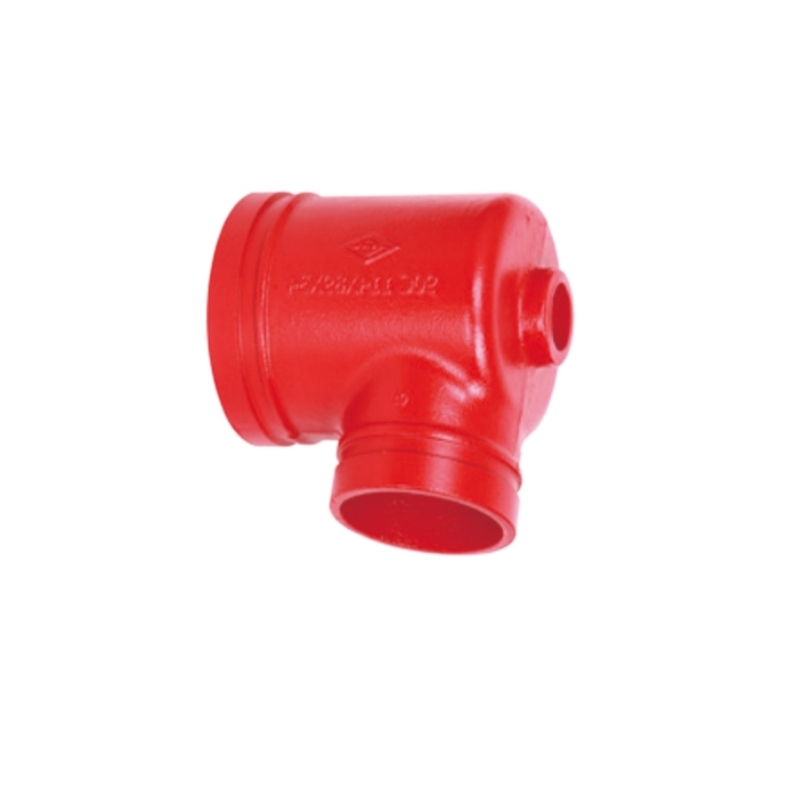

Type: Grooved 90° hydrant Elbow ASTM A536 Ductile Iron
Material: Ductile iron
Connection type: Grooved end
Pressure class: 1.6MPa / 2.5MPa
Temperature range: -20℃ ~ 120℃
Surface treatment: Red painted / Epoxy coated
Application: Fire fighting sprinkler, fire hydrant systems, industrial pipelines
Grooved 90° fire hydrant elbow is used to connect two pipes of different size by grooved connection, so to make the pipeline turn 90 degree for changing the fluid flow direction.
This grooved 90° hydrant Elbow ASTM A536 Ductile Iron is specially designed for fire hydrant pipeline connections. It realizes 90° steering connection with grooved ends, ensuring fast installation and stable performance. Made of high-strength ductile iron, it features high pressure resistance, reliable sealing and long service life, widely used in fire fighting pipe networks.

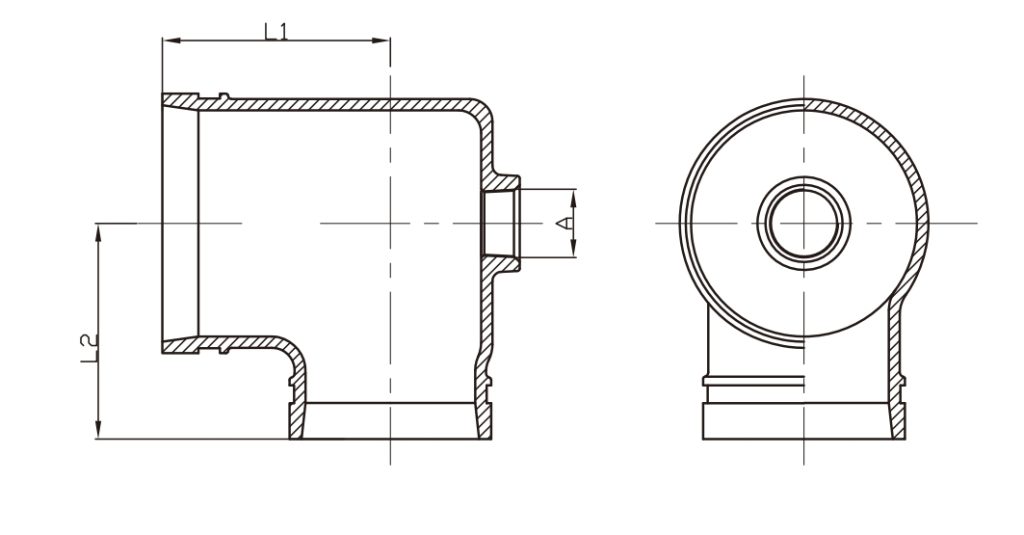

| SIZE | OD SIZE | L 1(MM) | L 2(MM) | |
| 4″×3″×1″ | DN100×DN80×DN25 | 114.3X88.9X33.7 | 102 | 95 |
| 6″×3″×1″ | DN150×DN80×DN25 | 165.1X88.9X33.7 | 130 | 130 |
OEM is available. We can customize the product according to your specific requirements, including logo printing and packaging design.
The MOQ is 500 pieces. For customized products with special sizes or surface treatments, the MOQ may vary.
After order confirmation and receipt of the advance payment, we will arrange production. Generally, the products can be ready for shipment within 15-20 working days. Once dispatched, we will notify you and provide all necessary documents for customs clearance.
All products are 100% new and undergo strict quality inspections, including pressure testing and dimensional checks, before delivery. We use sturdy wooden crates or cartons to ensure the products are well-protected during transportation.
Yes, we provide detailed installation instructions in English and other major languages. Our technical support team is also available for online consultation and guidance if needed.
