Grooved x Threaded Reducing Tee ASTM A536 AWWA C606

Product Features (Specifications – Plain English List)

Standard: UL/FM, GB standards

Type: Grooved reducing Tee ASTM A536 AWWA C606 Groove x Thread with threaded branch

Material: Ductile iron

Connection type: Grooved main ends, threaded branch

Pressure class: 1.6MPa / 2.5MPa

Temperature range: -20℃ ~ 120℃

Surface treatment: Red painted / Epoxy coated

Application: Fire fighting, water supply, HVAC, industrial fluid pipelines

Chat Now

Product details

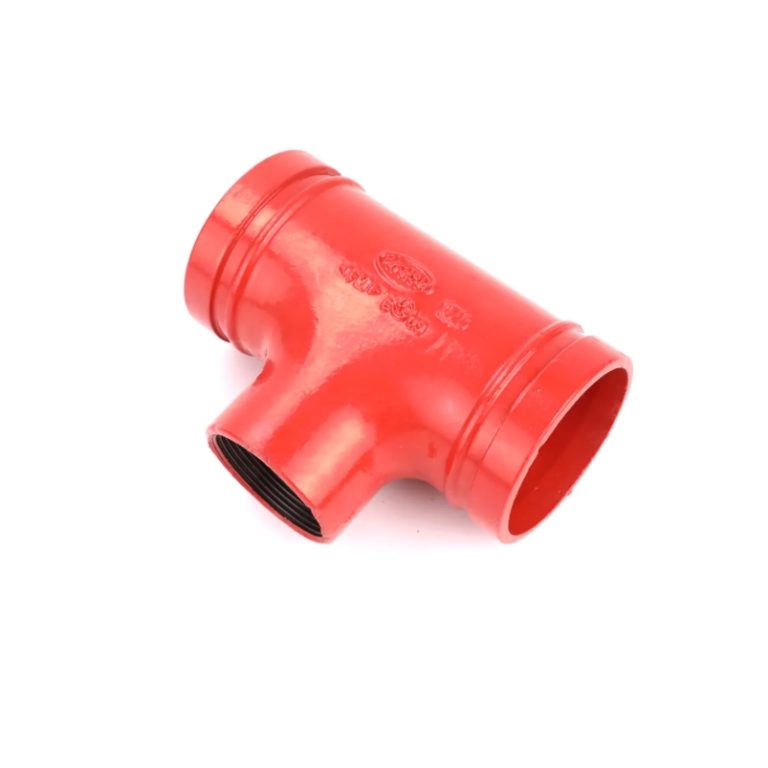

Grooved reducing tee with female threaded branch has a T shape to get its name. The branch outlet is threaded and the size is different from the main outlet, and it is used to create a branch pipeline to 90 degree direction.

Product Overview

This Grooved Reducing Tee ASTM A536 AWWA C606 Groove x Thread with threaded branch is mainly used for pipeline branching and diameter changing in fire fighting, water supply and industrial piping systems. It adopts grooved main ends and threaded branch design, which realizes fast connection and convenient branch installation. Made of high-strength ductile iron, it has good pressure resistance, stable sealing and long service life, suitable for medium distribution and pipeline modification.

Specifications Table (Dimensions & Parameters)

SIZE		OD SIZE	L (MM)
2″×1″	DN50×DN25	60.3X33.7	70
2″×1 1/4″	DN50×DN32	60.3X42.4	70
2″×1 1/2″	DN50×DN40	60.3X48.3	70
2 1/2″×1 1/4″	DN65×DN32	73.0X42.4	76
2 1/2″×1 1/2″	DN65×DN40	73.0X48.3	76
2 1/2″×2″	DN65×DN50	73.0X60.3	76
2 1/2″×1″	DN65×DN25	76.1X33.7	76
2 1/2″×1 1/2″	DN65×DN40	76.1X48.3	76
2 1/2″×2″	DN65×DN50	76.1X60.3	76
3″×1″	DN80×DN25	88.9X33.7	86
3″×1 1/4″	DN80×DN32	88.9X42.4	86
3″×1 1/2″	DN80×DN40	88.9X48.3	86
3″×2″	DN80×DN50	88.9X60.3	86
3″×2 1/2″	DN80×DN65	88.9X76.1	86
4″×2 1/2″	DN100×DN65	108.0X76.1	102
4″×3″	DN100×DN80	108.0X88.9	102
4″×1″	DN100×DN25	114.3X33.7	102
4″×1 1/4″	DN100×DN32	114.3X42.4	102
4″×1 1/2″	DN100×DN40	114.3X48.3	102
4″×2″	DN100×DN50	114.3X60.3	102
4″×2 1/2″	DN100×DN65	114.3X73.0	102
4″×2 1/2″	DN100×DN65	114.3X76.1	102
4″×3″	DN100×DN80	114.3X88.9	102
5″×1″	DN125×DN25	139.7X33.7	124
5″×1 1/4″	DN125×DN32	139.7X42.4	124
5″×1 1/2″	DN125×DN40	139.7X48.3	124
5″×2″	DN125×DN50	139.7X60.3	124
5″×2 1/2″	DN125×DN65	139.7X76.1	124
5″×3″	DN125×DN80	139.7X88.9	124
6″×2 1/2″	DN150×DN65	159.0X76.1	140
6″×3″	DN150×DN80	159.0X88.9	140
6″×1″	DN150×DN25	165.1X33.7	140
6″×1 1/4″	DN150×DN32	165.1X42.4	140
6″×1 1/2″	DN150×DN40	165.1X48.3	140
6″×2″	DN150×DN50	165.1X60.3	140
6″×2 1/2″	DN150×DN65	165.1X76.1	140
6″×3″	DN150×DN80	165.1X88.9	140
6″×1″	DN150×DN25	168.3X33.7	140
6″×1 1/4″	DN150×DN32	168.3X42.4	140
6″×2″	DN150×DN50	168.3X60.3	140
6″×2 1/2″	DN150×DN65	168.3X73.0	140
6″×3″	DN150×DN80	168.3X88.9	140
8″×2 1/2″	DN200×DN65	219.1X76.1	175
8″×3″	DN200×DN80	219.1X88.9	175

Product Applications

Branch and diameter changing in fire sprinkler piping systems
Pipeline distribution in building water supply and drainage systems
Small branch connection in HVAC circulating water pipelines
Industrial pipeline tapping and branch modification
Urban pipe network, fire protection engineering and construction piping

Installation and Maintenance

Inspect the Tee ASTM A536 AWWA C606 Groove x Thread for cracks, deformation and complete grooves before installation
Clean grooves and threads, install gaskets correctly
Connect grooved ends with couplings and tighten bolts evenly
Install threaded branch with seal tape to ensure tightness
Conduct pressure test after installation to check for leakage
Regularly check sealing condition and fastening status

Related Products

Grooved equal Tee ASTM A536 AWWA C606 Groove x Thread

Grooved mechanical Tee ASTM A536 AWWA C606 Groove x Thread

Grooved 90° elbow

Grooved 45° elbow

Grooved coupling

Full series of grooved pipe fittings

FAQ

Can you supply OEM?

OEM is available. We can customize the product according to your specific requirements, including logo printing and packaging design.

What’s the MOQ?

The MOQ is 500 pieces. For customized products with special sizes or surface treatments, the MOQ may vary.

How about the order processing and lead time?

After order confirmation and receipt of the advance payment, we will arrange production. Generally, the products can be ready for shipment within 15-20 working days. Once dispatched, we will notify you and provide all necessary documents for customs clearance.

What quality will be ensured?

All products are 100% new and undergo strict quality inspections, including pressure testing and dimensional checks, before delivery. We use sturdy wooden crates or cartons to ensure the products are well-protected during transportation.

Can you guide the installation?

Yes, we provide detailed installation instructions in English and other major languages. Our technical support team is also available for online consultation and guidance if needed.
