Standard: UL/FM, GB standards
Type: Grooved Cap ASTM A536 Ductile Iron with eccentric hole
Material: Ductile iron
Connection type: Grooved end with eccentric outlet
Pressure class: 1.6MPa / 2.5MPa
Temperature range: -20℃ ~ 120℃
Surface treatment: Red painted / Epoxy coated
Application: Water, fire fighting sprinkler, HVAC, industrial fluid pipelines

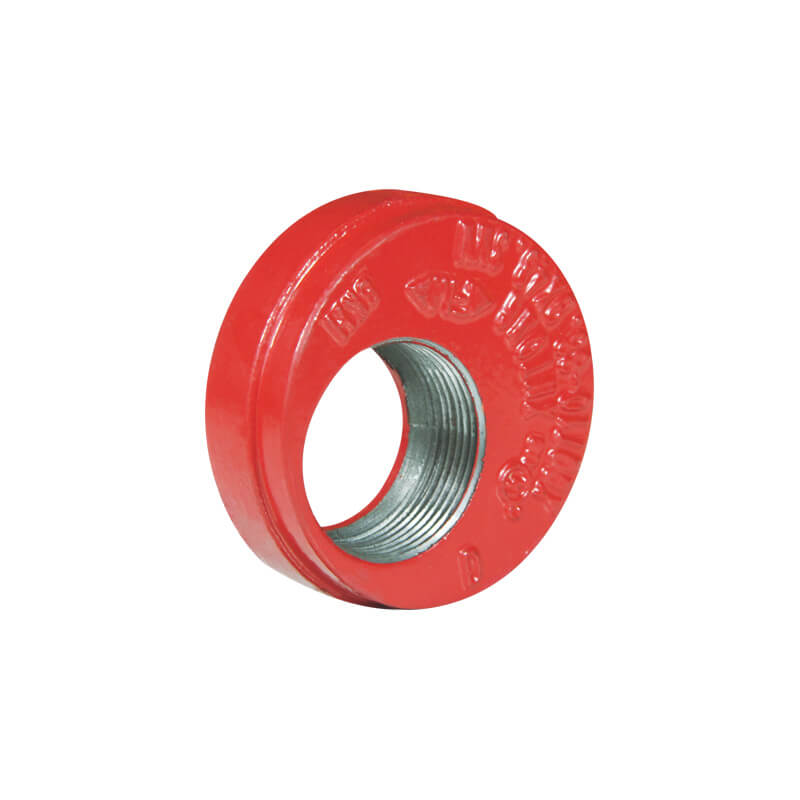

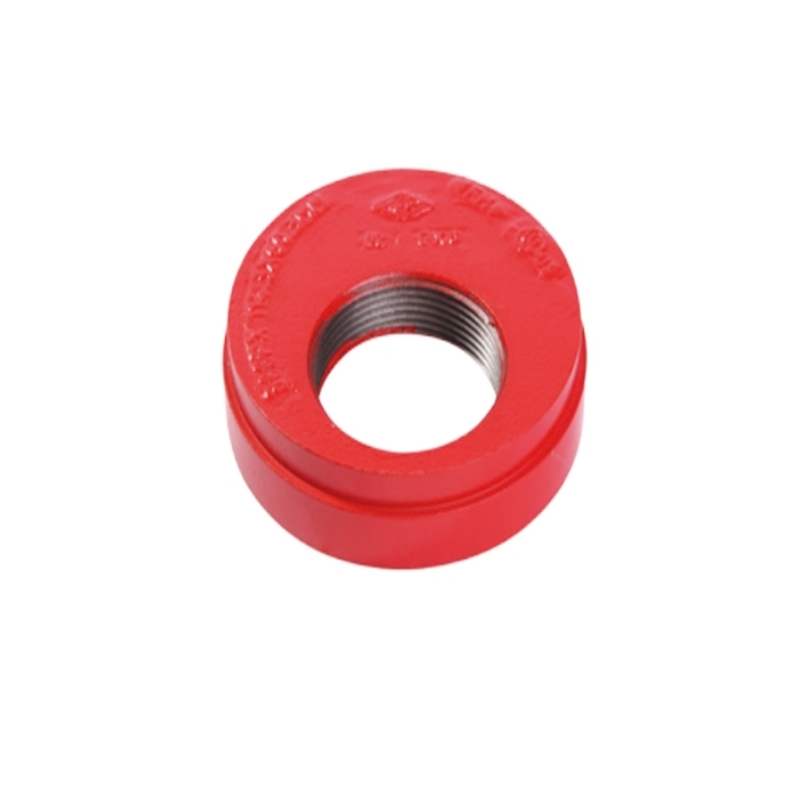

Grooved cap with eccentric hole is used to mount at the pipe end by groove connection, with a eccentric hole for drainage.
This grooved Cap ASTM A536 Ductile Iron with eccentric hole is used for pipeline end sealing and branch connection in fire protection, water supply and industrial piping systems. It features grooved connection for easy installation and an eccentric hole for flexible side outlet. Made of high-strength ductile iron, it provides good pressure resistance, reliable sealing and long service life, widely used for pipe end closing and small branch tapping.
| SIZE | OD SIZE | L (MM) | |
| 2 1/2″×1″ | DN65XDN25 | 76.1X33.7 | 23.5 |
| 2 1/2″×1 1/2″ | DN65XDN40 | 76.1X48.3 | 23.5 |
| 3″×1″ | DN80XDN25 | 88.9X33.7 | 23.5 |
| 3″×1 1/2″ | DN80XDN40 | 88.9X48.3 | 23.5 |
| 3″×2″ | DN80XDN50 | 88.9X60.3 | 23.5 |
| 4″×1″ | DN100XDN25 | 114.3X33.7 | 27 |
| 4″×1 1/2″ | DN100XDN40 | 114.3X48.3 | 25.4 |
| 4″×2″ | DN100XDN50 | 114.3X60.3 | 25.4 |
| 5″×1″ | DN125XDN25 | 139.7X33.7 | 27.3 |
| 5″×1 1/2″ | DN125XDN40 | 139.7X48.3 | 25.4 |
| 5″×2″ | DN125XDN50 | 139.7X60.3 | 25.4 |
| 6″×1 1/2″ | DN150XDN40 | 165.1X48.3 | 25.4 |
| 6″×1 1/2″ | DN150XDN40 | 168.3X48.3 | 25.4 |
| 6″×2″ | DN150XDN50 | 168.3X60.3 | 25.4 |
| 8″×1 1/2″ | DN200XDN40 | 219.1X48.3 | 30.2 |
| 8″×2″ | DN200XDN50 | 219.1X60.3 | 30.2 |
| 10″×1 1/2″ | DN250XDN40 | 273.0X48.3 | 33.1 |
| 12″×1 1/2″ | DN300XDN40 | 323.9X48.3 | 31.2 |
Grooved end Cap ASTM A536 Ductile Iron
Grooved concentric reducer
Grooved eccentric reducer
Grooved equal tee
Grooved reducing tee
Full series of grooved pipe fittings
OEM is available. We can customize the product according to your specific requirements, including logo printing and packaging design.
The MOQ is 500 pieces. For customized products with special sizes or surface treatments, the MOQ may vary.
After order confirmation and receipt of the advance payment, we will arrange production. Generally, the products can be ready for shipment within 15-20 working days. Once dispatched, we will notify you and provide all necessary documents for customs clearance.
All products are 100% new and undergo strict quality inspections, including pressure testing and dimensional checks, before delivery. We use sturdy wooden crates or cartons to ensure the products are well-protected during transportation.
Yes, we provide detailed installation instructions in English and other major languages. Our technical support team is also available for online consultation and guidance if needed.
