Standard: UL/FM, GB standards
Type: Grooved 90° reducing Elbow ASTM A536 Ductile Iron with threaded outlet
Material: Ductile iron
Connection type: Grooved ends, threaded side outlet
Pressure class: 1.6MPa / 2.5MPa
Temperature range: -20℃ ~ 120℃
Surface treatment: Red painted / Epoxy coated
Application: Water, fire fighting sprinkler, HVAC, industrial fluid pipelines

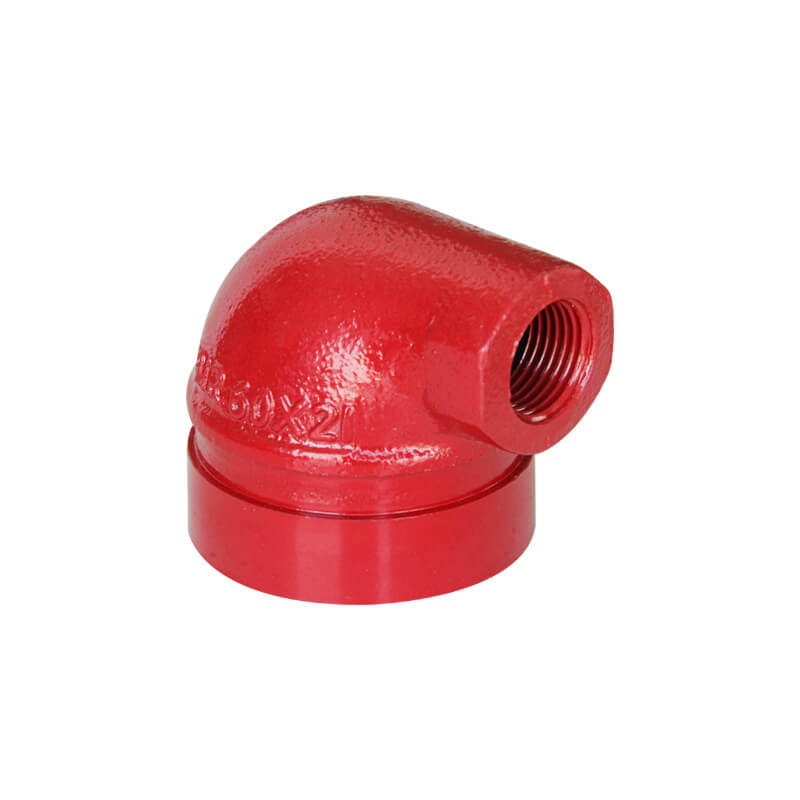

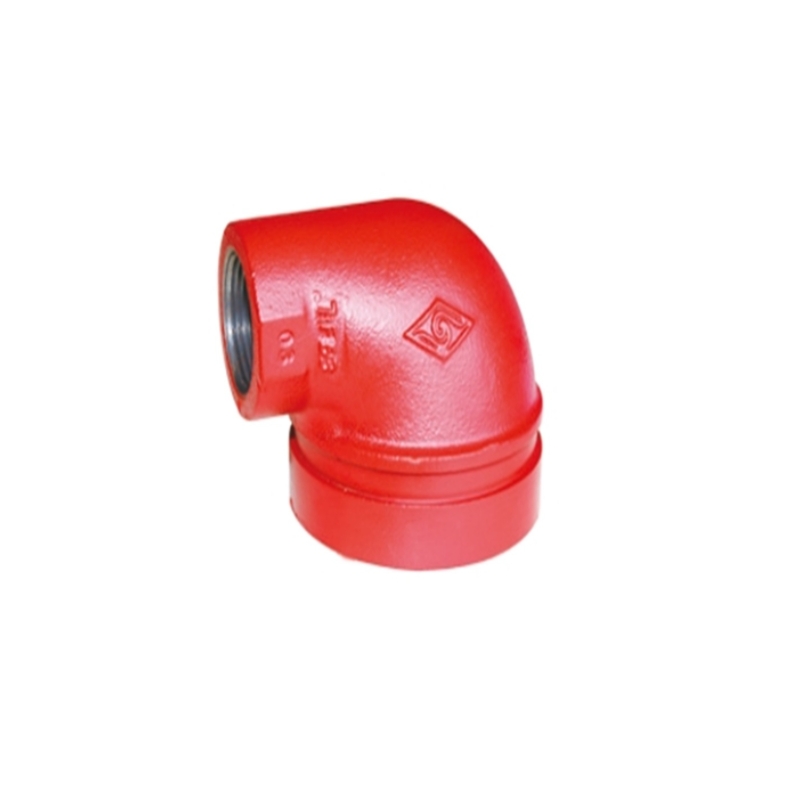

Grooved 90°reducing elbow with female threaded outlet is 90 degree elbow type pipe fitting with groove and reducing female thread connection convertion, and it is used to join two pipes and change the flow direction.
This grooved 90° reducing Elbow ASTM A536 Ductile Iron with threaded outlet is designed for pipeline turning, diameter changing and branch connection in fire fighting, water supply and industrial piping systems. It combines grooved connection, 90° angle reducing and threaded side outlet, making installation flexible and efficient. Made of high-strength ductile iron, it features good pressure resistance, reliable sealing and long service life, widely used for pipeline turning with branch tapping.

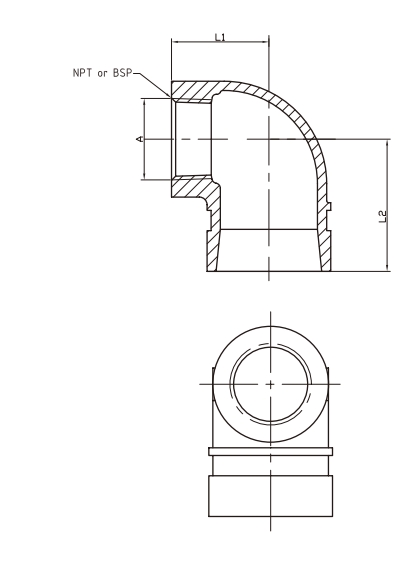

| SIZE | OD SIZE | L 1(MM) | L 2(MM) | |
| 1 1/4″×1/2″ | DN32×DN15 | 42.4X21.3 | 35.1 | 44.5 |
| 1 1/4″×3/4″ | DN32×DN20 | 42.4X26.9 | 34.9 | 47.6 |
| 1 1/4″×1″ | DN32×DN25 | 42.4X33.7 | 38.1 | 51.6 |
| 1 1/2″×1/2″ | DN40×DN15 | 48.3X21.3 | 34.9 | 44.5 |
| 1 1/2″×3/4″ | DN40×DN20 | 48.3X26.9 | 34.9 | 47.6 |
| 1 1/2″×1″ | DN40×DN25 | 48.3X33.7 | 38.1 | 51.6 |
| 2″×1/2″ | DN50×DN15 | 60.3X21.3 | 41.4 | 44.5 |
| 2″×3/4″ | DN50×DN20 | 60.3X26.9 | 41.3 | 47.6 |
| 2″×1″ | DN50×DN25 | 60.3X337 | 44.5 | 51.6 |
| 2 1/2″×1/2″ | DN65×DN15 | 73.0X213 | 46 | 44.5 |
| 2 1/2″×3/4″ | DN65×DN20 | 73.0X26.9 | 46 | 47.6 |
| 2 1/2″×1″ | DN65×DN25 | 73.0X33.7 | 49.2 | 51.6 |
| 2 1/2″×1″ | DN65×DN25 | 76.1X33.7 | 49.2 | 51.6 |
| 3″×3/4″ | DN80×DN20 | 88.9X269 | 60.3 | 52.4 |
| 3″×1″ | DN80×DN25 | 88.9X33.7 | 63.5 | 52.4 |
Grooved 90° Elbow ASTM A536 Ductile Iron
Grooved 45° Elbow ASTM A536 Ductile Iron
Grooved reducing tee
Grooved concentric reducer
Grooved end cap
Full series of grooved pipe fittings
OEM is available. We can customize the product according to your specific requirements, including logo printing and packaging design.
The MOQ is 500 pieces. For customized products with special sizes or surface treatments, the MOQ may vary.
After order confirmation and receipt of the advance payment, we will arrange production. Generally, the products can be ready for shipment within 15-20 working days. Once dispatched, we will notify you and provide all necessary documents for customs clearance.
All products are 100% new and undergo strict quality inspections, including pressure testing and dimensional checks, before delivery. We use sturdy wooden crates or cartons to ensure the products are well-protected during transportation.
Yes, we provide detailed installation instructions in English and other major languages. Our technical support team is also available for online consultation and guidance if needed.
