Pipe: Carbon steel
Thread: NPT / BSP
Extra long barb is available upon request.
Plated male adapter meets NSF / ANSI 372 lead free requirement.
Plated steel for greater corrosion resistance than unplated steel, prevent rust and weathering.
Common use: Cold water sprinkler, irrigation, and pump installation.
Other sizes available, contact us for details.

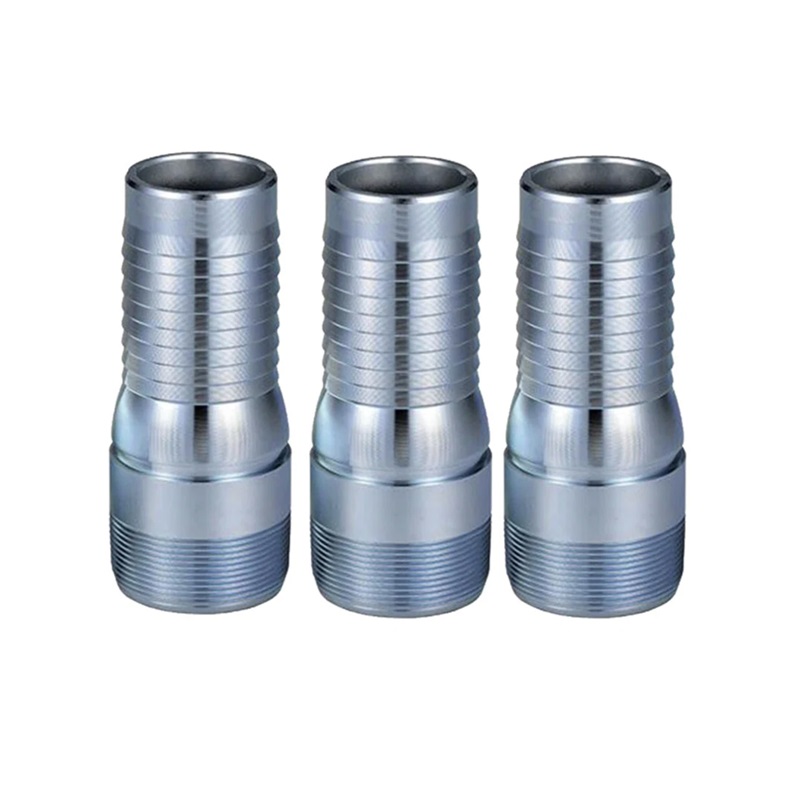

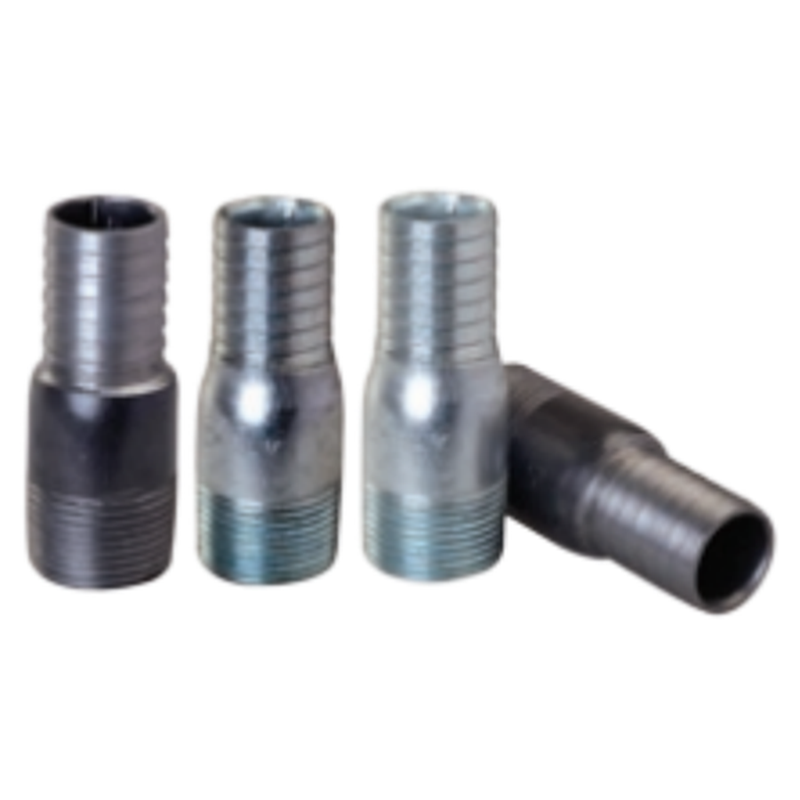

Hose nipple is a type of fitting used to connect a hose to another component, such as a pipe, valve, or another hose. It typically has a male threaded end that can be screwed into a corresponding female threaded port. Hose nipples are commonly used in various applications, including plumbing, irrigation, automotive, and industrial systems.
Hose nipple is a precision threaded connecting fitting specially used for sprinkler flexible hose and pipeline transition connection. It adopts integrated machining process, smooth thread, tight sealing and stable connection without water leakage.
Made of high-quality brass or carbon steel, with corrosion resistance and high pressure resistance. Compatible with NPT and BSPT standard threads, perfectly matching braided flexible hose, unbraided flexible hose and fire sprinkler piping system, easy to install and widely used in fire protection engineering.

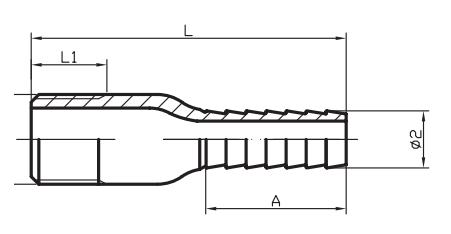

| Size(In) | L±1.2(mm) | L1±1(mm) | Ø2±0.2 | A±1 |
| 1/2 | 79 | 19.8 | 16.8 | 32.9 |
| 3/4 | 79 | 20 | 21.2 | 32.9 |
| 1 | 83.5 | 25 | 27.3 | 32.9 |
| 11/4 | 90 | 25.5 | 36.3 | 32.9 |
| 11/2 | 103.5 | 26 | 41.9 | 43.4 |
| 2 | 103.5 | 26.5 | 53 | 44.8 |
| 21/2 | 131 | 39.9 | 63.5 | 56(8 bar) |
| 3 | 163 | 41.5 | 80 | 64(8 bar) |
| 4 | 174 | 44 | 102.5 | 72(8 bar) |
| 6 | 182 | 49.4 | 155 | 72(8 bar) |
Braided Flexible Hose,
Unbraided Flexible Hose,
Sprinkler Hose Bracing Structural,
Pipe Clamp, Sprinkler Fittings
OEM is available. We can customize the product according to your specific requirements, including logo printing and packaging design.
The MOQ is 500 pieces. For customized products with special sizes or surface treatments, the MOQ may vary.
After order confirmation and receipt of the advance payment, we will arrange production. Generally, the products can be ready for shipment within 15-20 working days. Once dispatched, we will notify you and provide all necessary documents for customs clearance.
All products are 100% new and undergo strict quality inspections, including pressure testing and dimensional checks, before delivery. We use sturdy wooden crates or cartons to ensure the products are well-protected during transportation.
Yes, we provide detailed installation instructions in English and other major languages. Our technical support team is also available for online consultation and guidance if needed.
