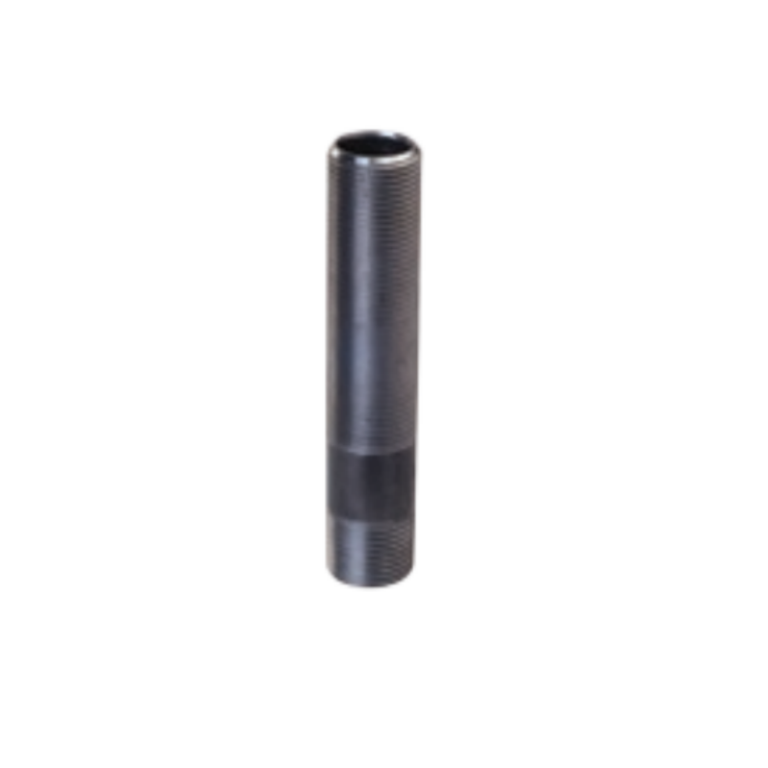

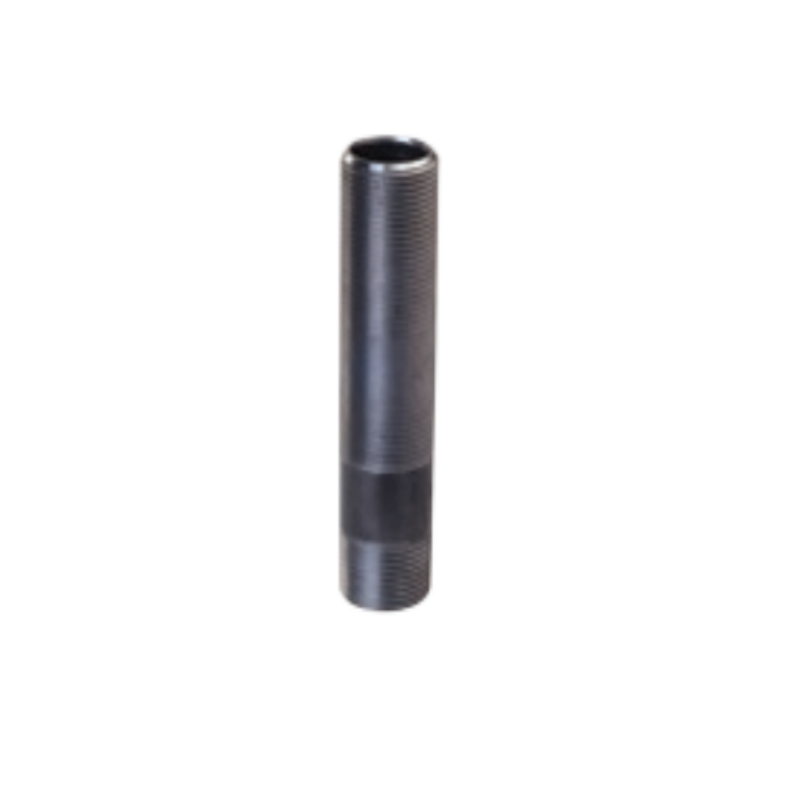

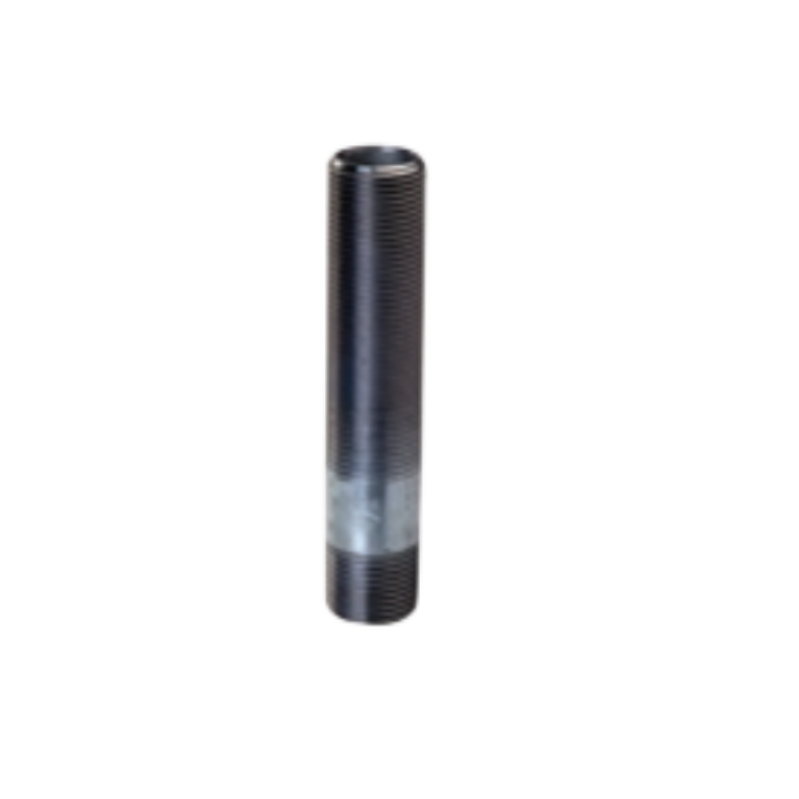

Tank type nipple is one kind of nipple which have different lenght for the threading on the two side. It is used to connect different items.
Tank type nipple is a professional threaded pipe nipple widely used for tank outlet, pipeline transition and equipment connection. Available in welded and seamless types, manufactured strictly in accordance with international material and dimension standards.Multiple surface treatments are optional for anti-corrosion and long service life. Standard compliant thread and schedule thickness ensure high pressure resistance, tight sealing and stable installation. Widely applicable for oil, water, gas, fire protection, chemical and industrial tank piping systems.

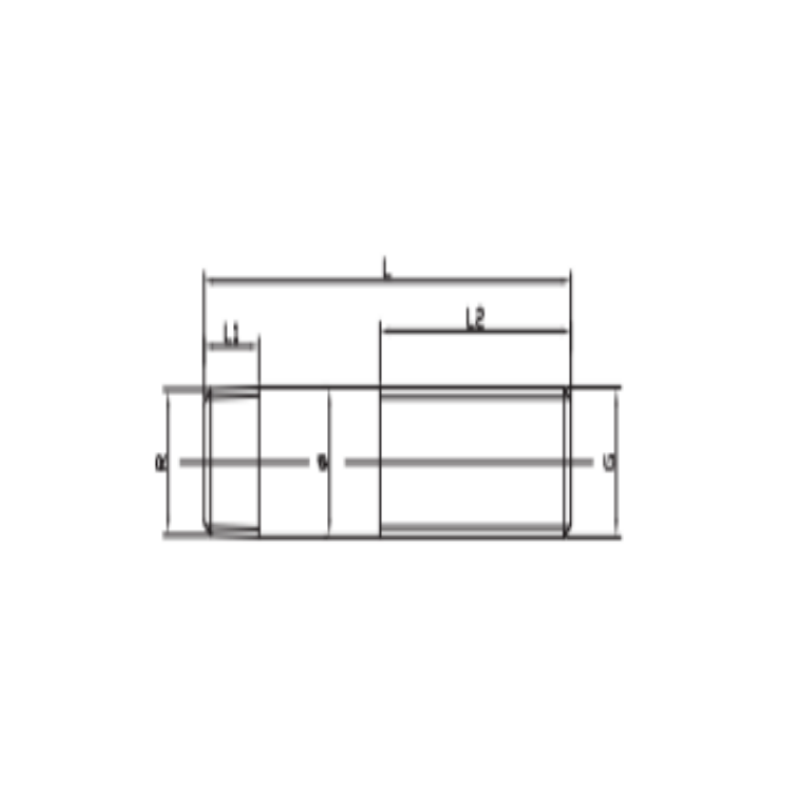

| Size | L+2(mm) | L1(mm) | L2(mm) | (mm) | R | G |
| 1/2X100X52MM | 100 | 15 | 52 | 21.3 | R1/2 | G1/2 |
| 3/4X100X54MM | 100 | 15 | 54 | 26.7 | R3/4 | G3/4 |
| 1X100X62MM | 100 | 17 | 62 | 33.4 | R1 | G1 |
| 11/4X150X70MM | 150 | 20 | 70 | 42.2 | R11/4 | G11/4 |
| 11/2X150X71MM | 150 | 20 | 71 | 48.3 | R11/2 | G11/2 |
| 2X150X82MM | 150 | 23 | 82 | 60.3 | R2 | G2 |
Hose Nipple,
Threaded Pipe Fittings,
Pipe Clamp,
Flexible Hose
OEM is available. We can customize the product according to your specific requirements, including logo printing and packaging design.
The MOQ is 500 pieces. For customized products with special sizes or surface treatments, the MOQ may vary.
After order confirmation and receipt of the advance payment, we will arrange production. Generally, the products can be ready for shipment within 15-20 working days. Once dispatched, we will notify you and provide all necessary documents for customs clearance.
All products are 100% new and undergo strict quality inspections, including pressure testing and dimensional checks, before delivery. We use sturdy wooden crates or cartons to ensure the products are well-protected during transportation.
Yes, we provide detailed installation instructions in English and other major languages. Our technical support team is also available for online consultation and guidance if needed.
