Features:
Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61
Size: DN8 – DN150
Pressure: 2.5 Mpa / PN25
Dimensions: BS EN10242
Material: Malleable iron BS EN1562
Threaded: BSPP (ISO228) / BSPT (ISO7-1)
Surface: Black / Electrical galvanized / Hot-dip galvanized

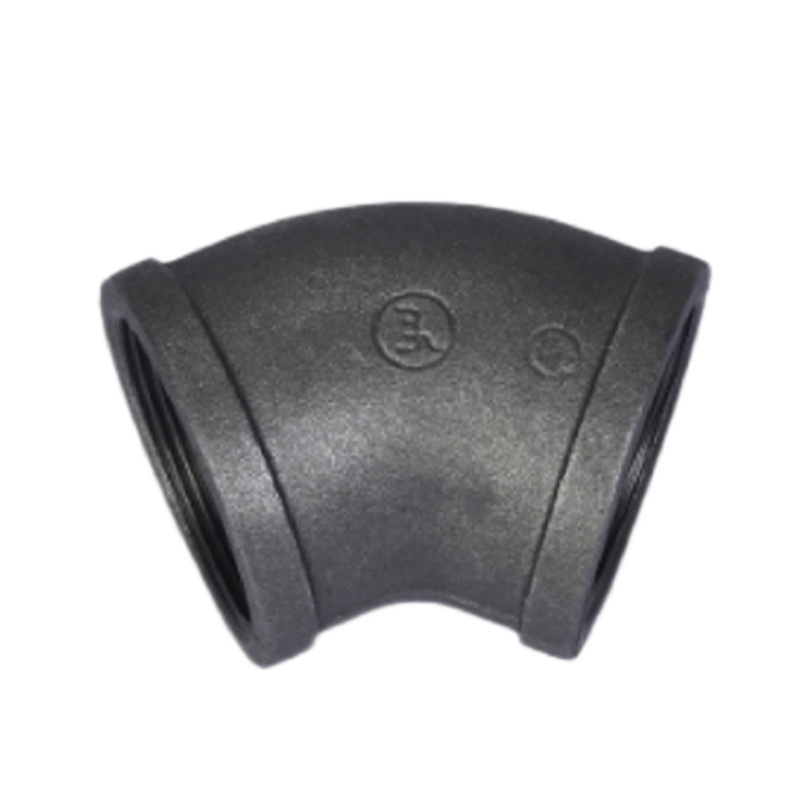

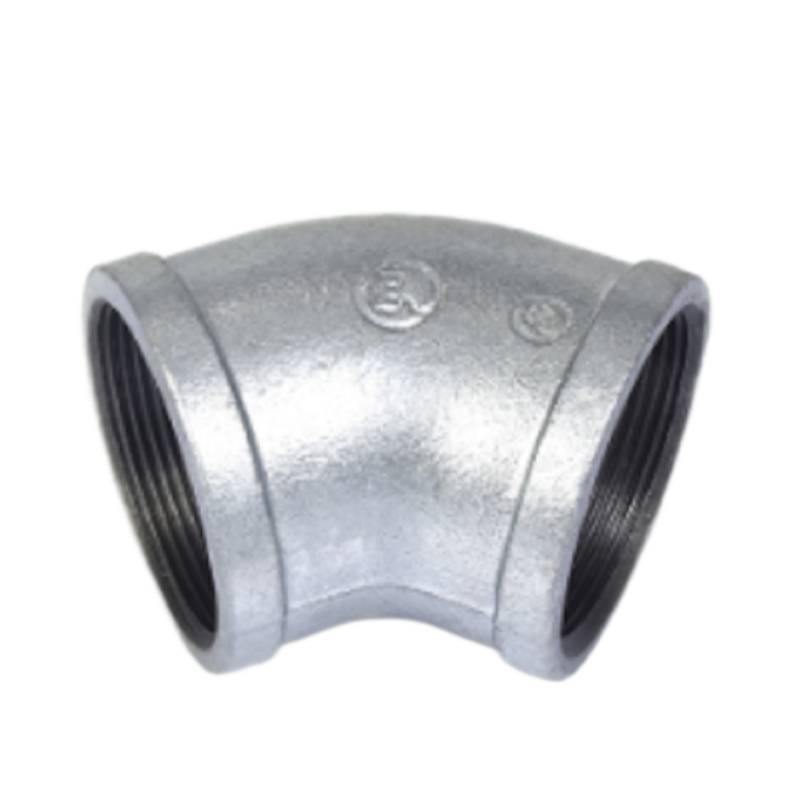

Malleable iron 45° elbow is with two ends female threads and used to connect the pipes with male thread. It can change the pipeline direction by 45 degree.
| SIZE | A (MM) | PCS/CTN. | |
| 1/4” | DN8 | 18 | 500 |
| 3/8” | DN10 | 20 | 500 |
| 1/2” | DN15 | 22 | 400 |
| 3/4” | DN20 | 25 | 240 |
| 1” | DN25 | 28 | 140 |
| 1 1/4” | DN32 | 33 | 96 |
| 1 1/2” | DN40 | 36 | 72 |
| 2” | DN50 | 43 | 36 |
| 2 1/2” | DN65 | 48.5 | 20 |
| 3” | DN80 | 53.5 | 12 |
| 4” | DN100 | 64.5 | 6 |
| 6” | DN150 | 129 | 4 |
